Electric Pump With Auto Return Valve
Call For Price
- Part Number: JHW5EA05H1G
- UPC: 00662459946454
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

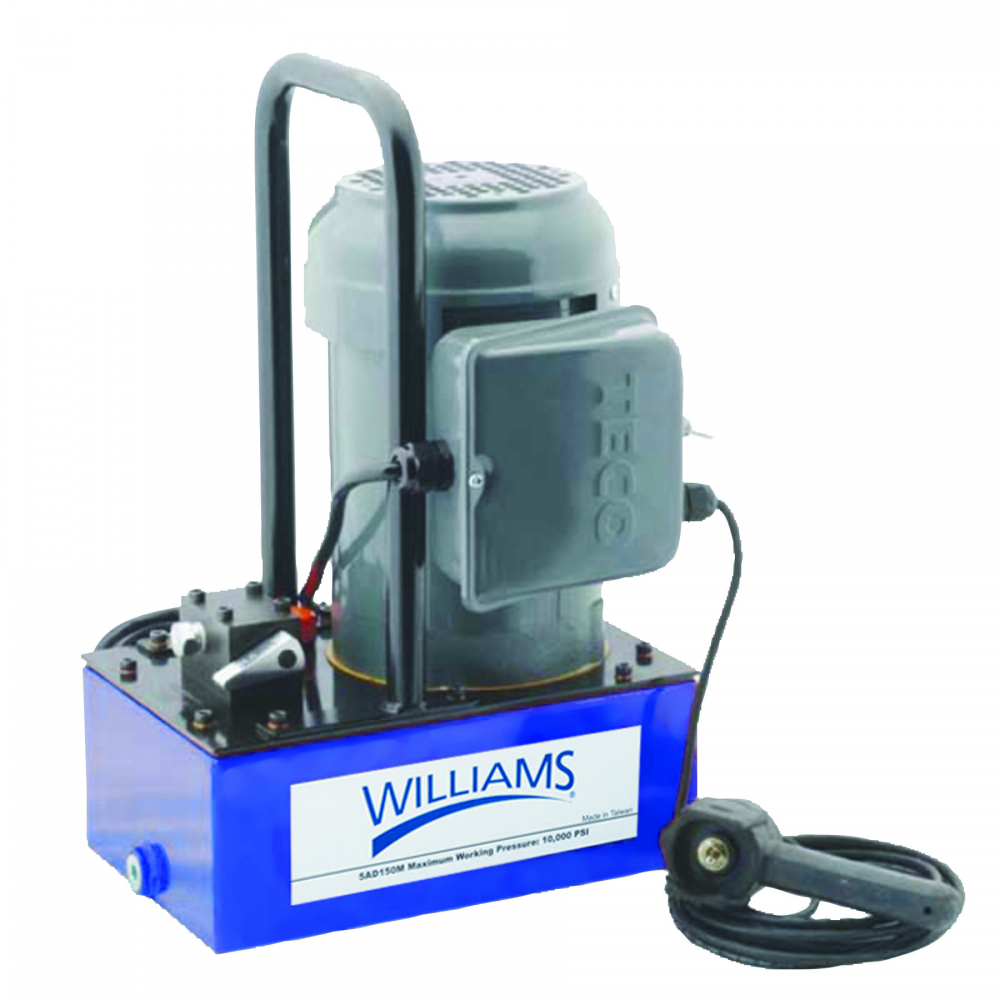

Electric Pump With Auto Return Valve
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Pumps
Industrial Subtype:
Electric Hydraulic Pumps
Country of Origin:
Taiwan
Current Draw:
9 amps
Dimensions (in), C:
19.09
Dimensions (in), D:
4.72
Dimensions (in), F:
7.36
Dimensions (in), G:
12.36
Dimensions, A (in):
12.76
Dimensions, B (in):
10.28
Motor Size:
0.5 hp
Motor Voltage:
115 volts
OG1 Page:
411
Oil Output Flow Rate, 1st Stage (in3/min):
233
Oil Output Flow Rate, 2nd Stage (in3/min):
18
Pressure Rating, (psi), 2nd Stage:
10,000 psi
Pressure Rating, 1st Stage, psi:
350 psi
Sound Level, (dBA):
80
Usable Oil Capacity:
1 gal
Valve Function:
Advance/ Return
Valve Type:
2-way, 2-position
Weight:
66.2 Lbs
Other Details
10 ft. remote pendant switch to control motor on/off
2 speed operation allows for faster cylinder advance
Best suited for punching, crimping and cutting applications
Full load starting capabilities
Internal filter keeps contamination from damaging pump
Quiet operation meets OSHA regulations (80dBA)
Rugged durable design meets the demands of industrial applications
