![55 Ton Shop Press Air Pump, Stroke 13"](/vendors/7807/large/4c8a1e3fb44f07bd6a994ff7158ebefa08accd1d-large.png "55 Ton Shop Press Air Pump, Stroke 13"")

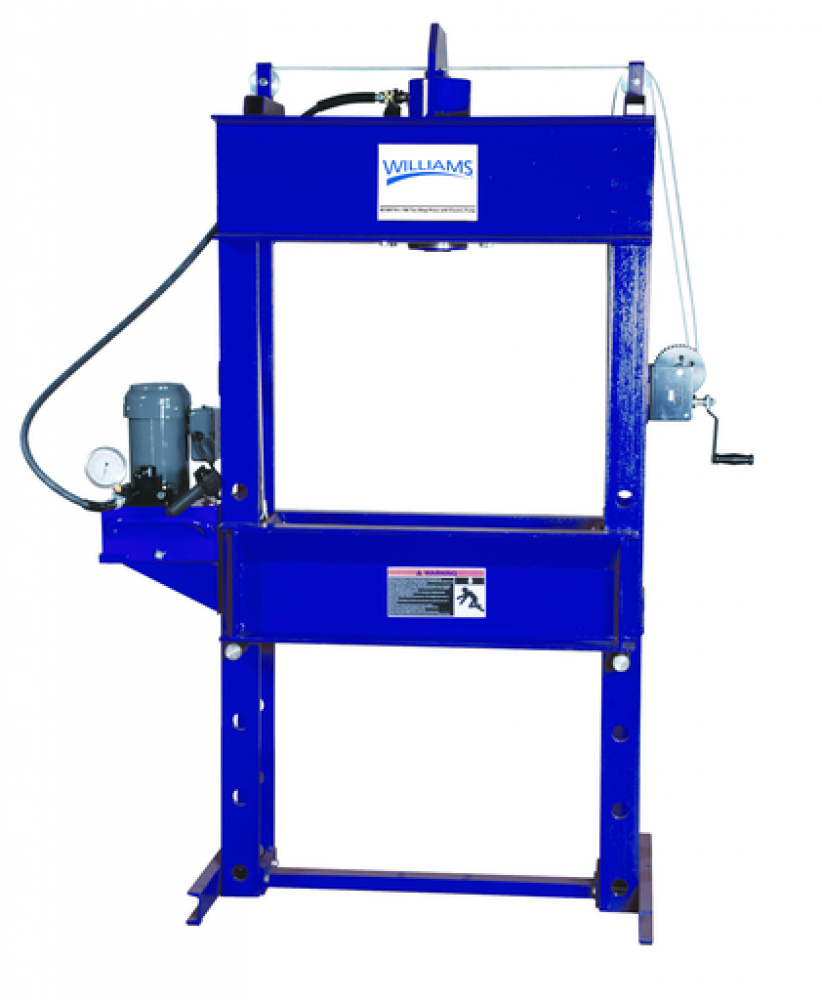

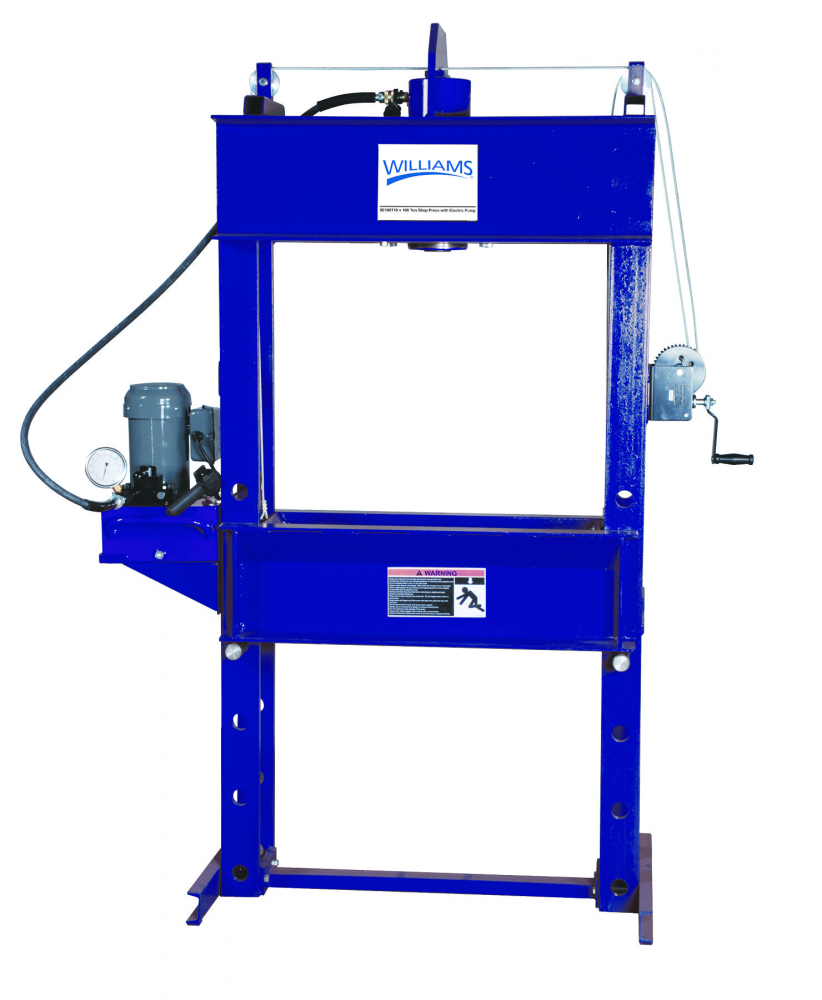

55 Ton Shop Press Air Pump, Stroke 13"
Call For Price
- Part Number: JHW9A55T13
- UPC: 00662459946386
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
55 Ton Shop Press Air Pump, Stroke 13"
Specifications
Details
Industrial Category:
Pumps
Industrial Subcategory:
Drum and Barrel Pumps
Industrial Subtype:
Automotive Specialized Tools
Hydraulic Presses
Air Operated Pumps
Actuation:
Air Compressor
Bed Position:
9
Capacity (Tons):
55
Country of Origin:
Taiwan
Dimension A Maximum (inches):
55.5
Dimension A Minimum (inches):
14
Dimension B (inches):
79
Dimension C, inches:
56
Dimension D, inches:
30
Dimension E, inches:
35.4
Dimension F, inches:
6
Dimension G, inches:
4
Dimension H, inches:
9
Dimension I, inches:
3
Dimension J, inches:
10
Dimension K, inches:
14.8
Horsepower:
2
OG1 Page:
415
Oil Capacity, gal:
2
Pressure Rating, psi:
10000
Primary Material:
Steel
Product Size (H x L x W), inches:
79 x 56 x 30
Pump Model:
JHW5AS380
Pump Type:
Air
Reservoir Capacity, in3:
250
Stroke Length:
13
Warranty:
Limited warranty; free from defects in workmanship and materials
Weight:
760 Lbs
Working Space (A Min. / A Max.), inches:
14 ~ 55-1/2
Other Details
All press frames are made in the USA and meet ISO 9001/2008 and CDI certification
Excellent for bending, bonding or straightening applications
Heavy steel welded contruction
Ideal for the removal or installation of gears, universal joints, pulleys, wrist pins, and other press jobs
Multi-position bed for work height adjustment
