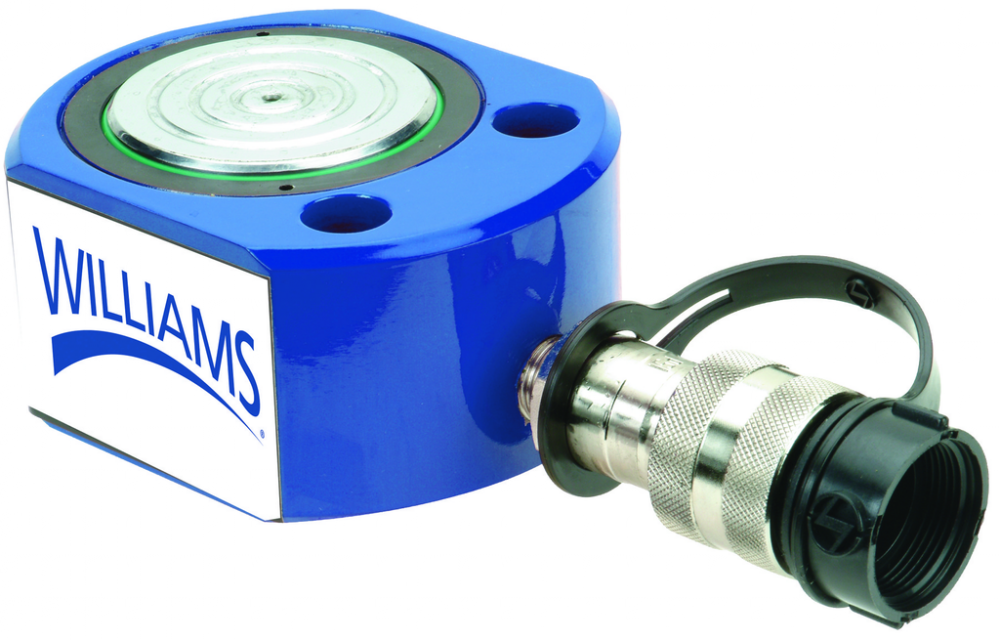

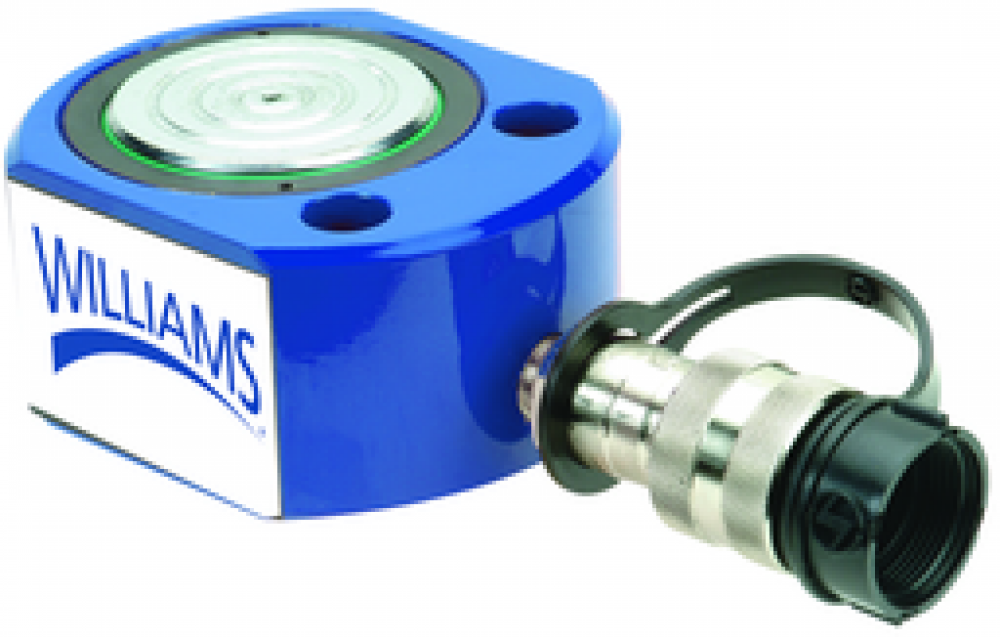

50 Ton Flat Body Cylinder
Call For Price
- Part Number: JHW6CF50T05
- UPC: 00662459973849
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
50 Ton Flat Body Cylinder
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Base to Port, G (in):
0.79
Collapsed Height, A (in):
2.64
Counter Bore Depth (inches):
0.5
Counter Bore Diameter (inches):
0.75
Country of Origin:
Taiwan
Cylinder Bore Dia., C (in):
3.54
Cylinder Capacity, tons:
50 tons
Cylinder Effective Area (in2):
9.86 in2
Extended Height, B (in):
3.27
Hole Dia, Y (in):
0.43
Hole Pitch, X (in):
2.62
OG1 Page:
397
Oil Capacity (in3):
6.21
Outside Dim., D1 x D2, (in):
4.5 x 4.5
Plunger Dia., E (in):
2.76
Plunger to Base, L (in):
2.25
Pressure at Capacity, psi:
10,140 psi
Stroke, inches:
0.63
Other Details
Extremely low collapsed height for applications with minimal clearance at the lift point
Great for areas of low clearance
Made of high quality steel
Maximum working pressure 10,000 psi / 700 bar
