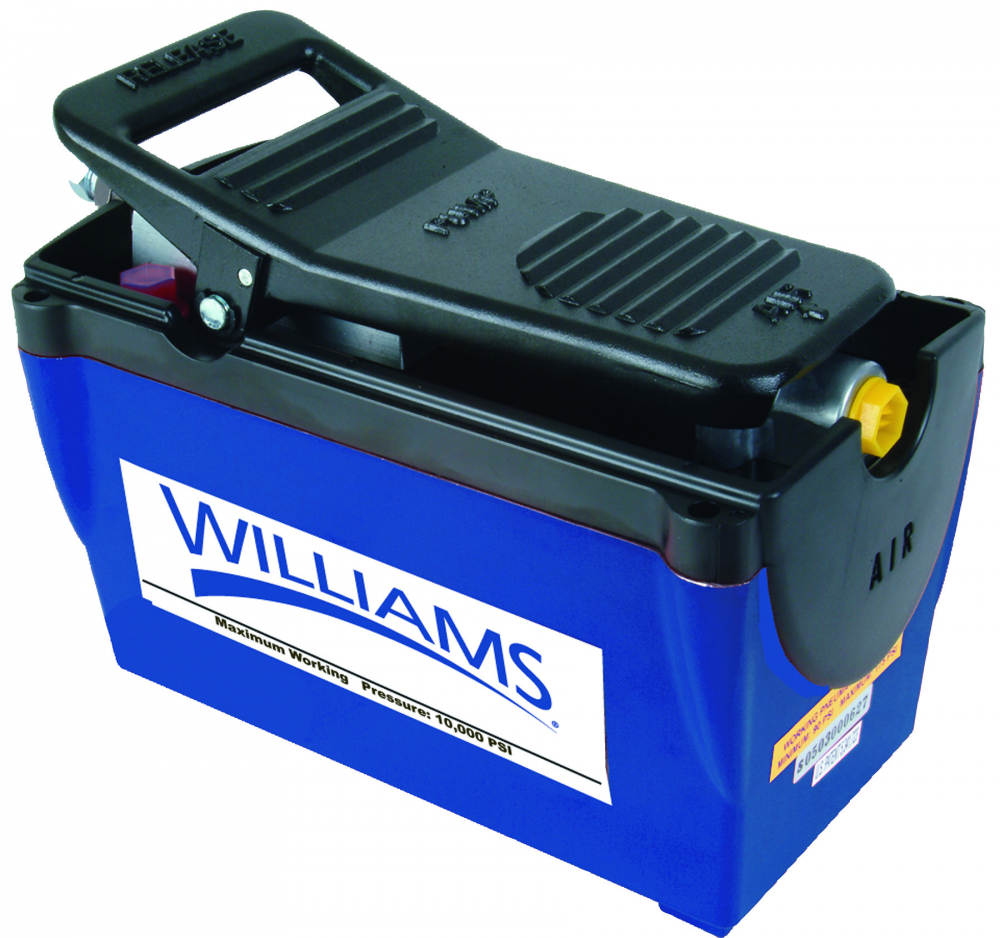

10,000 Psi Single Acting Air Pump 122 Cu
Call For Price
- Part Number: JHW5AS200
- UPC: 00662459923356
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
10,000 Psi Single Acting Air Pump 122 Cu
Specifications
Details
Industrial Category:
Pumps
Industrial Subcategory:
Drum and Barrel Pumps
Industrial Subtype:
Air Operated Pumps
Country of Origin:
Taiwan
Dimension A (inches):
11.57
Dimension B (inches):
6.02
Dimension C, inches:
7.91
Dimension D, inches:
6.18
Dimension E, inches:
5.98
Input Air Pressure Range, psi:
100-200
Material:
Carbon
Motor Type:
ODP
OG1 Page:
406
Oil Output Flow Rate, in3/min, Load:
12
Oil Output Flow Rate, in3/min, No Load:
65
Pressure Rating, psi:
10000
Usable Oil Capacity (in3):
122.1
Used with Cylinder:
Single Acting
Warranty:
Limited warranty; free from defects in workmanship and materials
Other Details
Designed to be used with single-acting cylinders
High strength reinforced aluminum alloy reservoir is lightweight and corrision-resistant
JHW5AD150M offers a 4-way control valve for operation of double-acting cylinders
JHW5AS200 offers a turbo funciton that features high flow at high-pressure condition
Maximum workign pressure: 10,000 psi/700 bar
Pressure relief valve for overload protection
Suggested air pressure range: 90-175 psi/6-12 bar
