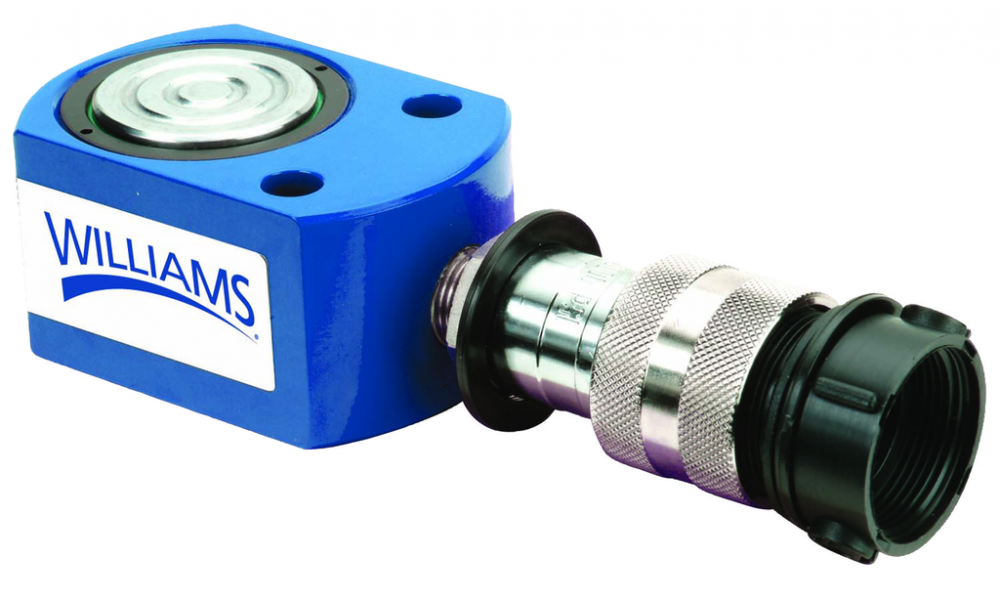

10 Ton Flat Body Cylinders 3/8''
Call For Price
- Part Number: JHW6CF10T05
- UPC: 00662459923066
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
10 Ton Flat Body Cylinders 3/8''
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Actuation:
Single Acting
Body Material:
Steel
Counter Bore Depth (inches):
0.31
Counter Bore Diameter (inches):
0.42
Country of Origin:
Taiwan
Cylinder Capacity, tons:
10
Cylinder Effective Area (in2):
2.36
D1 x D2, Outside Dimension (inches):
3.3 x 2.2
Dimension A, Collapsed Height (inches):
1.69
Dimension B, Extended Height (inches):
2.12
Dimension C, Cylinder Bore Diameter, inches:
1.73
Dimension E, Plunger Diameter, inches:
1.5
Dimension G, Base to Port, inches:
0.77
Dimension L, Plunger to Base, inches:
1.12
Dimension X, Hole Pitch, inches:
1.44
Dimension Y, Hole Diameter, inches:
0.28
OG1 Page:
397
Oil Capacity (in3):
1.01
Pressure at Capacity, psi:
8470
Stroke, inches:
0.43
Warranty:
Limited warranty; free from defects in workmanship and materials
Other Details
Cylinders may be ordered speparately
Kits include magnetic adapters and carrying case
Kits inlcude a variety of heigh magnetic adapters
Maximum working pressure: 10,000 psi / 700 bar
Perfect for low clearance areas needing a cylinder height boost
