![10 Ton 10" Treaded Hole Single Acting Cylinders](/vendors/7807/large/a4fe3bd1d57c0c31ff0f3df5b7dfe895af100923-large.png "10 Ton 10" Treaded Hole Single Acting Cylinders")

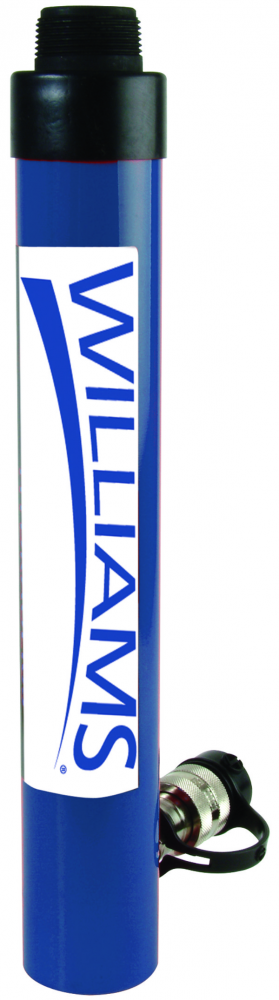

10 Ton 10" Treaded Hole Single Acting Cylinders
Call For Price
- Part Number: JHW6CT10T10
- UPC: 00662459923196
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
10 Ton 10" Treaded Hole Single Acting Cylinders
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Actuation:
Single Acting
Body Material:
Steel
Country of Origin:
Taiwan
Cylinder Capacity, tons:
10
Cylinder Effective Area (in2):
2.24
Dimension A, Collapsed Height (inches):
15.47
Dimension B, Extended Height (inches):
25.43
Dimension D, Outside Diameter, inches:
2.26
Dimension E, Plunger Diameter, inches:
1.49
Dimension G, Base to Inlet Port, inches:
1.67
Dimension L, Collar Thread Length, inches:
1.13
Dimension S, Saddle Height, inches:
0.94
OG1 Page:
401
Oil Capacity (in3):
22.31
Pressure at Capacity, psi:
8930
Stroke, inches:
9.96
Warranty:
Limited warranty; free from defects in workmanship and materials
Other Details
High quality threaded single acting cylinders
Maximum working pressure: 10,000 psi / 700 bar
Removable threaded plunger adapter allows for the use of a variety of threaded attachments
Used to attach accessories to rod end and base
