![1/4" Shank Diameter Eyebolts Shoulder Pattern](/vendors/7807/large/e8de23ccab0e12ef78bfd4e575c41b5cbfb0a526-large.png "1/4" Shank Diameter Eyebolts Shoulder Pattern")

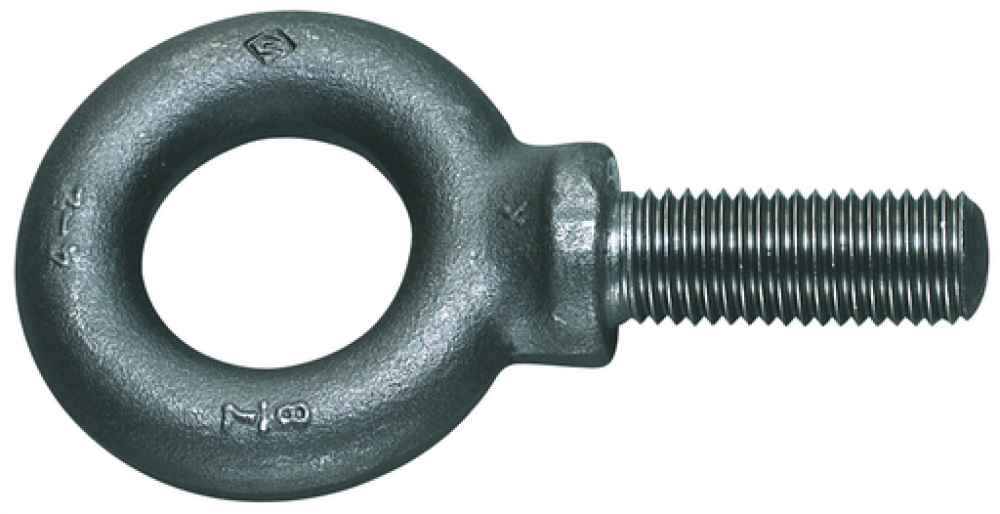

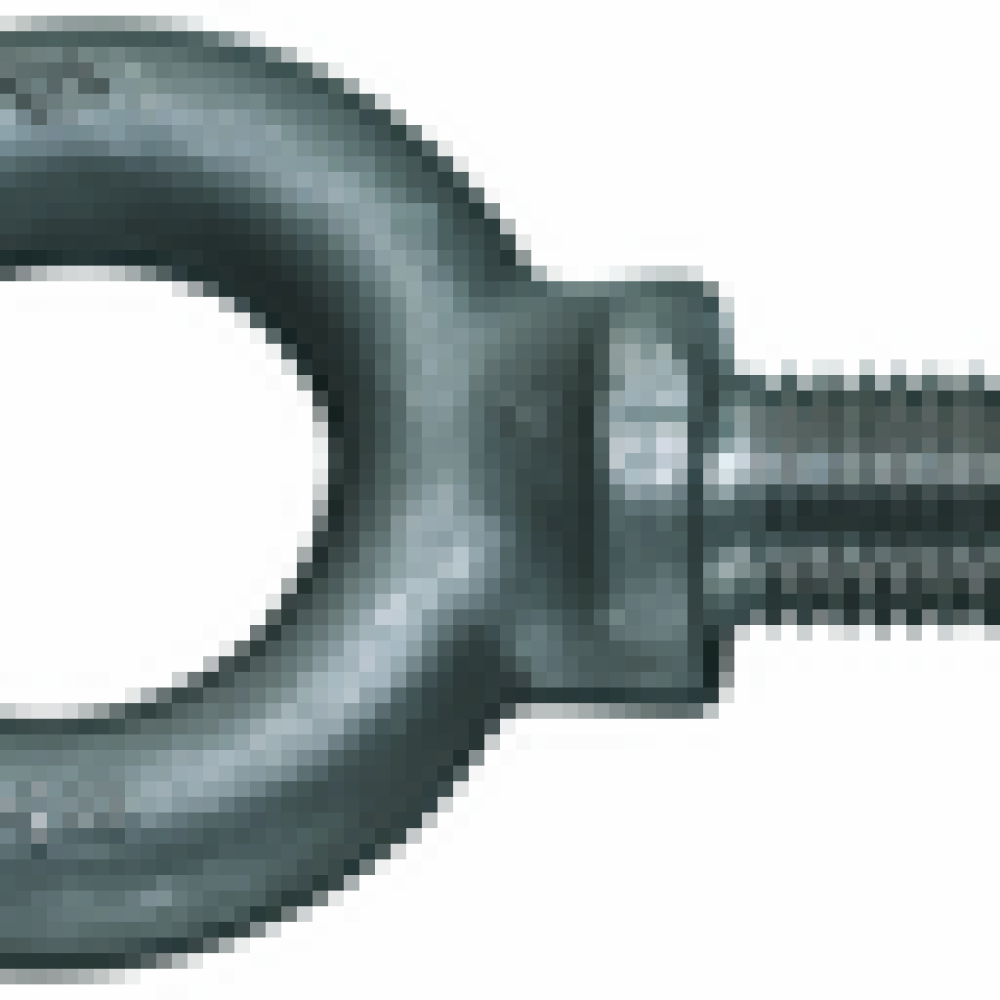

1/4" Shank Diameter Eyebolts Shoulder Pattern
Call For Price
- Part Number: JHWEB-21T
- UPC: 00662459307163
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
1/4" Shank Diameter Eyebolts Shoulder Pattern
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Bolts
Industrial Subtype:
Eyebolts
Country of Origin:
United States
Head Cross-Section Thickness (inches):
9/32
Inner Diameter, inches:
3/4 inches
Length of Shank, inches:
1
OG1 Page:
494
Overall length, inches:
2-7/16
Shank Diameter, inches:
1/4 inches
Shoulder Width, inches:
9/16
Threads per Inch:
20
Ultimate Strength, lb:
2500 lbs
Warranty:
Limited warranty; free from defects in workmanship and materials
Other Details
Available with UNC Class 2A thread only
Each lot is tested and inspected to insure conformance to specifications
Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially. A steel washer or spacer may be required for proper seating
To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable. Tightness and seating must be checked after initial load
