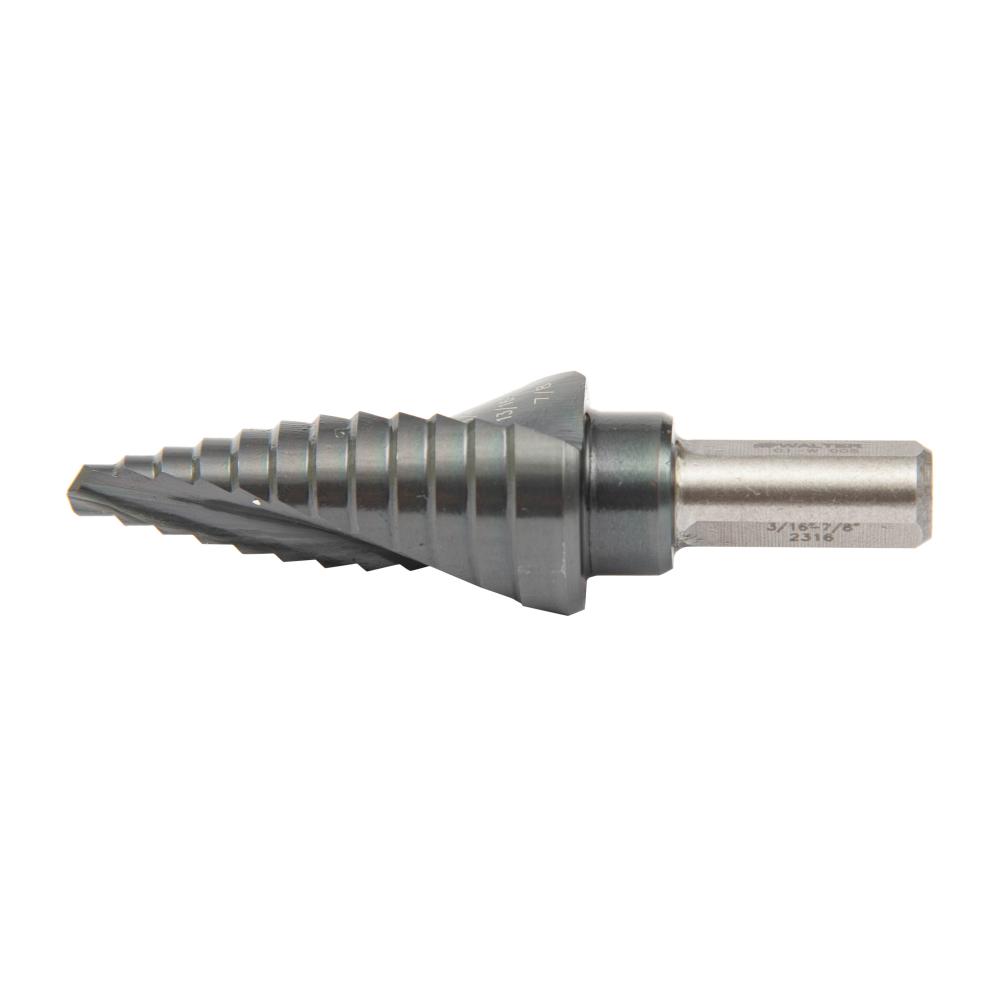

3/16-7/8 MULTI-STEP DRILL
Call For Price
- Part Number: 01W005
- UPC: 00662980080856
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Step drill bits
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Drilling Accessories
Industrial Subtype:
Step Drill Bits
Angle:
135°
Country of Origin:
CN
Diameter:
3/16 to 7/8 in.
Family:
Tooling
Item Length (CM):
8.2
Item Weight (KG):
0.08
Material / For use on::
Other materials < 1/8"; Sheet metal < 1/8"; Stainless steel < 1/8"
Minimum Order:
1
Order Minimum:
1
Overall Length:
3-1/4 in.
Packaging Type:
Plastic Tube
Prod Tech Tips 1:
Always drill at right angle to workpiece
Prod Tech Tips 2:
Reduce speed when diameter of step increases
Product Applications 01:
Cutting or enlarging holes in sheet material
Shank Diameter:
3/8 in.
Tooling Drill Size:
3/16" - 7/8"
Tooling Drill Size Equivalent:
B
Tooling Finish:
ICECUT (AlCrN coating)
Tooling Flute Design:
Spiral
Tooling Flute Direction:
Right hand
Tooling Flute Length:
1-1/2"
Tooling Flute Quantity:
2
Tooling Material Madeof:
High Speed Steel
Tooling Overall Length:
3-1/4"
Tooling Point Angle:
118° Point
Tooling Point Type:
Conventional Point
Tooling Sets:
No
Tooling Shank Size:
3/8"
Tooling Shank Type:
3-Flats Shank
Tooling Step Drill Max Size:
7/8"
Tooling Step Drill Min Size:
3/16"
Tooling Step Drill Step Depth:
1/8"
Tooling Step Drill Step Increment:
1/16"
Tooling Step Drills Step Number:
12
Tooling System Of Measurement:
Fractional
Trade Name:
Multi-Step
UPC Code:
662980080856
Other Details
2 wide flutes eliminate chip build-up and chatter
3-flats shank for reduced slippage in drill chucks
ICECUT coating for increased wear resistance and life
Point is self-centering
Straight flutes for better surface finish, spiral flutes for faster operation
