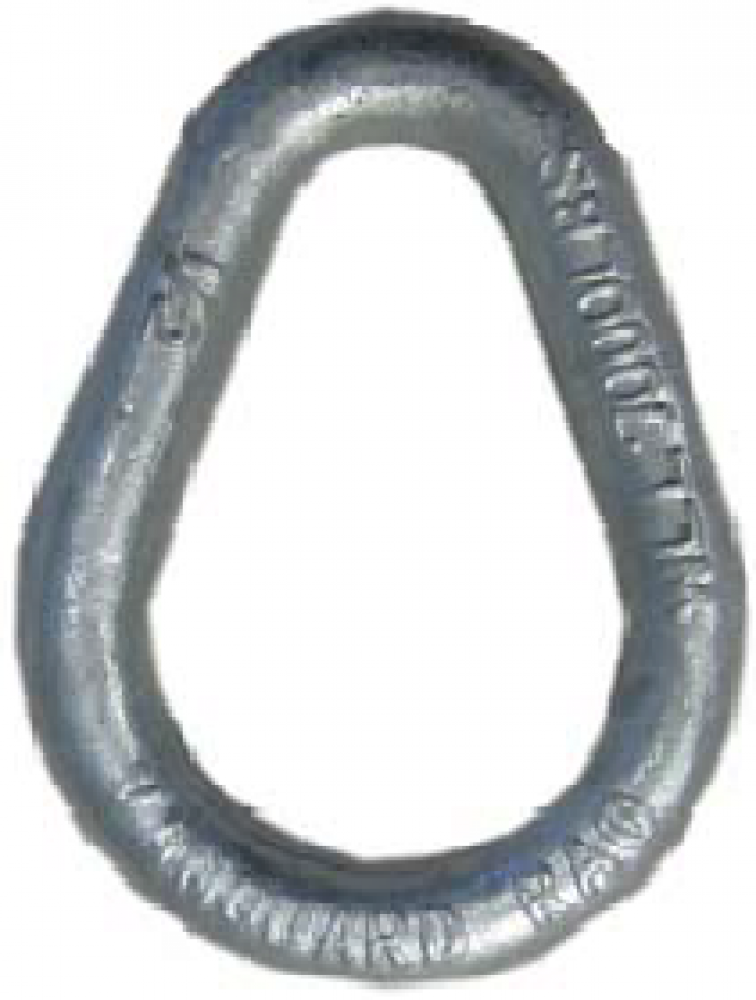

Weldless Pear Shaped Links

Call For Price

Part Number: 3932 1056
UPC:
Availability:

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (13)

Specifications

Details

Industrial Category:

Material Handling

Industrial Subcategory:

Chain and Chain Accessories

Industrial Subtype:

Connecting and Clevis Links

Master Links

Description:

D.F.PEAR SHAPED LNK

Design Factor:

Proof Load: 2 Times WLL Ultimate Load: 5 Times WLL

Detail:

7/8 ''

Dimensions (Inch) (A):

3.5

Dimensions (Inch) (B):

1.75

Dimensions (Inch) (D):

7/8

Dimensions (Inch) ©:

5.25

Finish:

Hot Dipped Galvanized

Material:

Alloy Steel

Type:

Weldless, Pear Shaped

Unit:

Weight:

2.78 lbs

WLL (lbs):

15000

Other Details

Design factor 5 times WLL

Drop Forged - Alloy Steel – Quenched and Tempered

Hot dipped galvanized finish

Permanently embossed with Vanguard, size, Working Load Limit (WLL) and trace code

Proof Load 2 times WLL
