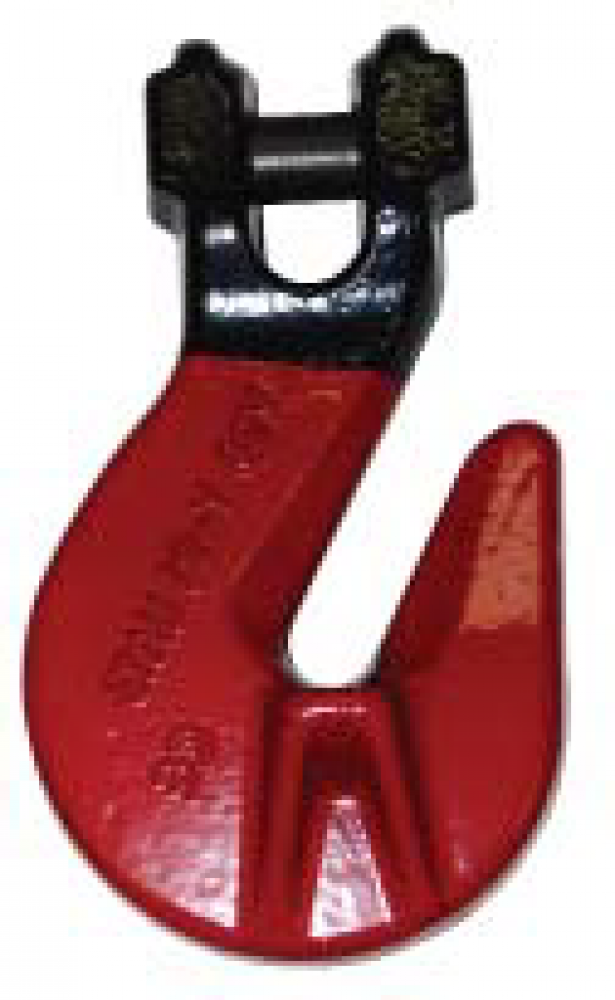

V-Line Grade 80 Clevis Grab Hooks
Call For Price
- Part Number: 3950 00161
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (15)
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Chain and Chain Accessories
Industrial Subtype:
Hooks
Chain and Cable Hooks
Chain Size:
9/32 - 5/16
Description:
V 90 CL.GRAB HOOKS
Design Factor:
4:1
Detail:
9/32''
Dimensions (Inch) (A):
3.62
Dimensions (Inch) (B):
1.97
Dimensions (Inch) (D):
0.41
Dimensions (Inch) (E - Pin):
0.39
Dimensions (Inch) ©:
0.41
Load Chain Type:
Grade 80
Material:
Alloy Steel
Series:
V-Line
Standard:
ASTM A-952-96, EN1677
Type:
Grab
Unit:
/1
Weight:
0.73 lbs
WLL (lbs):
4500
Other Details
Alloy Steel – Quenched and Tempered
Approved for overhead lifting when all components are grade 80
Design factor 4:1
Fast and easy assembly without the need for special tools
Meet EN1677 standard (20,000 cycle fatigue test)
Meet or exceed ASTM A-952-96 standard
Permanently embossed with VGD, size, model number and trace code
Proof tested to 2.5 times the Working Load Limit (WLL)
