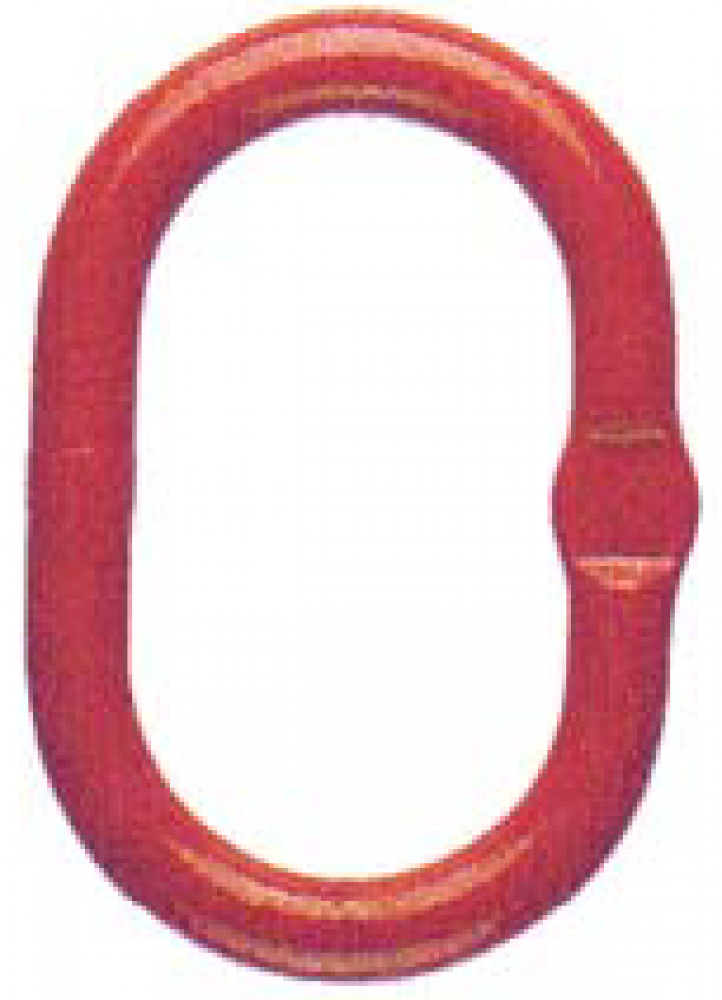

V-Line Grade 80 Alloy Master Links With Flat Spot
Call For Price
- Part Number: 3953 0116
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Chain and Chain Accessories
Industrial Subtype:
Master Links
Design Factor:
4:1
Dimensions (Inch) (D):
1-1/4
Dimensions (Inch) (L):
5.1
Dimensions (Inch) (P):
9
Dimensions (mm) (S x X):
18 x 45
Double Size:
5/8
Load Chain Type:
Grade 80
Material:
Alloy Steel
Quad Size:
1/2
Series:
V-Line
Single Size:
3/4
Standard:
ASTM 906/952, EN1677
Triple Size:
1/2
Type:
Master
Weight:
9.75 lbs
WLL (lbs):
31300
Other Details
Alloy Steel – Quenched and Tempered
Approved for overhead lifting when all components are grade 80
Design factor 4:1
Individually proof tested per ASTM 906/952 prescribed loads
Meet EN1677 standard (20,000 cycle fatigue test)
Permanently embossed with VGD, size, model number and trace code
Proof tested to 2 times the Working Load Limit (WLL)
