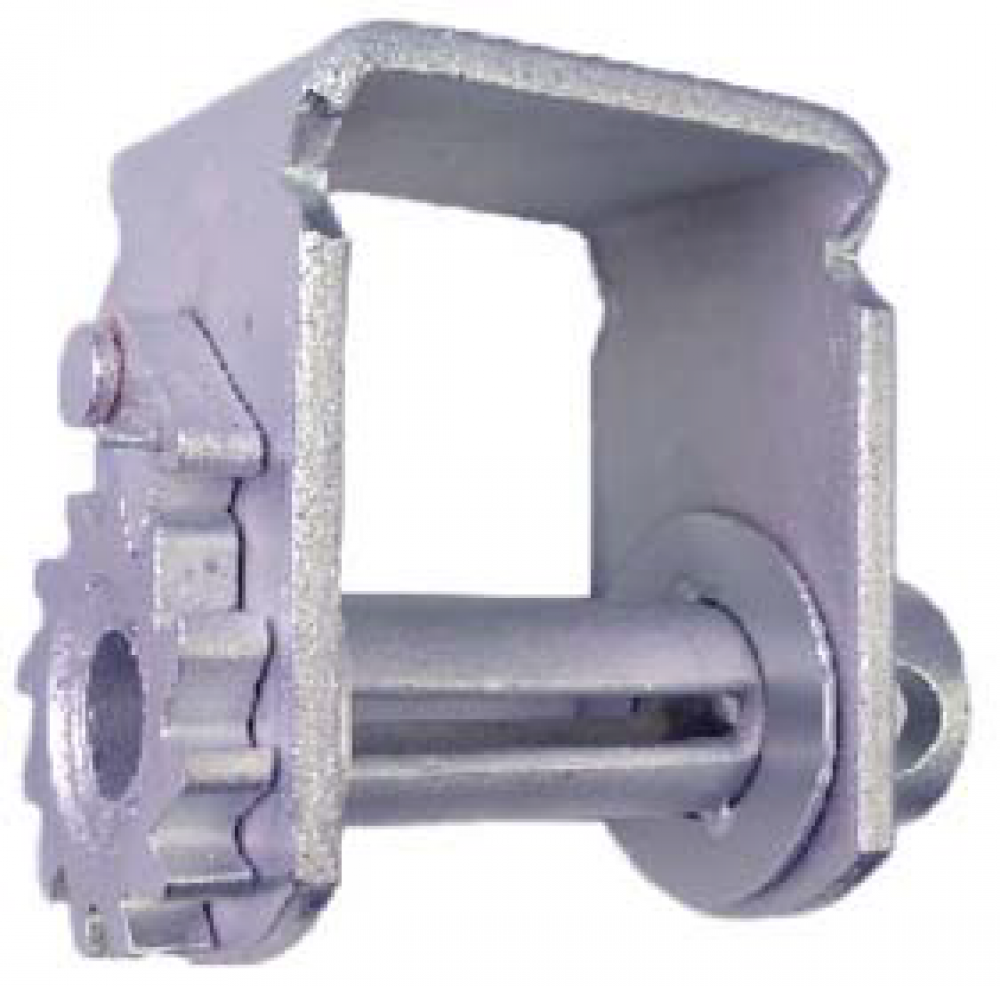

Standard Sliding Winches
Call For Price
- Part Number: 3705 1021
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (11)
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Ratchet Straps and Tie Downs
Industrial Subtype:
Tie Down Winches
Description:
CARGO WINCH STD.4" NO FLANGE, ZINC PLATED
Design Factor:
3:1
Dimensions (Inch) (A):
6.75
Dimensions (Inch) (B):
4
Dimensions (Inch) (D):
8.25
Dimensions (Inch) (F):
1.75
Dimensions (Inch) (G):
1
Dimensions (Inch) ©:
2.5
Dimensions (Inch) €:
4.5
Type:
Without Flange
Unit:
/ 1
WLL (lbs):
6000
Other Details
Bolt on type winches, can be welded for fi xed applications, this must only be performed by a competent/qualifi ed welder. For best results use Bonarc® 7018 mild steel electrodes or Bonarc® ER70S-6 wire
Design factor 3:1
Extra strong ratchet pawl
For use with 4” straps
Sliding winches allow for easy positioning in the track, however once tension is applied they will lock into place
Sturdy construction
The WLL is permanently marked on each winch
Unless otherwise stated all Vanguard winches shown are right hand models, left hand models are only available as a special order
