Malleable Wire Rope Clips
Call For Price
- Part Number: 2901 0108
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (13)
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Wire Rope and Fittings
Industrial Subtype:
Wire Rope Clips
Description:

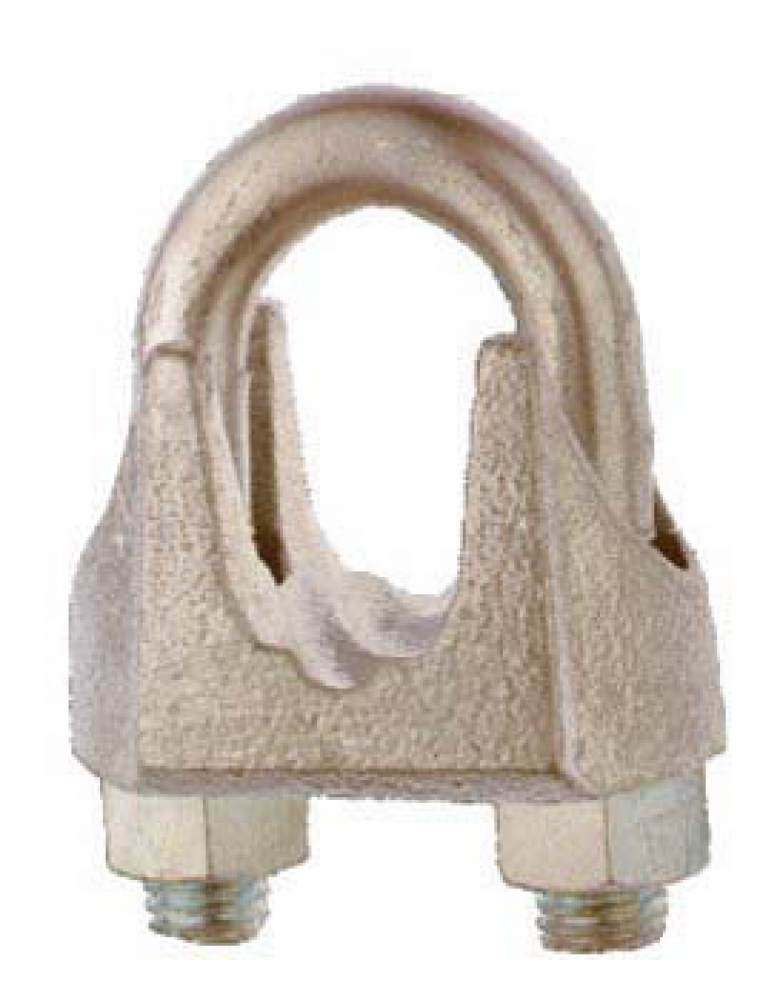

GALVANIZED MALLEABLE WIRE ROPE CLIPS
Detail:
1 1/8 ''
Dimensions (Inch) (A):
0.72
Dimensions (Inch) (B):
4.44
Dimensions (Inch) (D):
1.84
Dimensions (Inch) (F):
1.77
Dimensions (Inch) (G):
3.24
Dimensions (Inch) ©:
2.7
Dimensions (Inch) €:
1.97
Finish:
Electro-Galvanized
Min. No. Clips:
7
Nut Torque (ft/lbs):
200
Rope Diameter:
1-1/8
Standard:
FF-C-450D, Type 1, Class 2
Turn Back Length (Inch):
39
Type:
Light Duty
Unit:
/1
Weight:
243 lbs/100'
Other Details
Electro-galvanized fi nish
Federal Specifi cation FF-C-450D, Type 1, Class 2
Rope diameter stamped on saddle
The tightening torque values shown are based upon the threads being clean, dry and free of lubrication
To be used for light duty, non-critical applications only
Torque tested threads
Typical uses include guard lines and fencing
