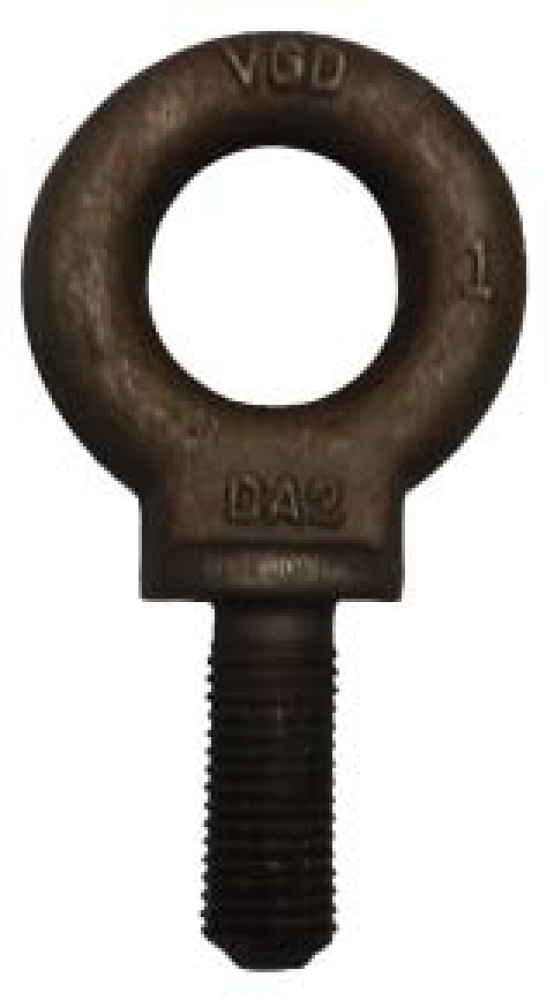

Machined Eye Bolts
Call For Price
- Part Number: 2975 9035
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (17)
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Bolts
Industrial Subtype:
Eyebolts
Description:
MACHINERY EYE BOLT
Design Factor:
Proof Load 2:1 WLL, Ultimate Load 5:1 WLL
Detail:
1 1/2'' X 3-1/2"
Dimensions (Inch) (A):
1.465
Dimensions (Inch) (B):
3.449
Dimensions (Inch) (D):
2.832
Dimensions (Inch) (F):
1.347
Dimensions (Inch) (G):
3.118
Dimensions (Inch) ©:
5.366
Dimensions (Inch) €:
9.25
Item Weight (kgs):
2.966
Material:
Carbon Steel
Proof Load (lbs):
48000
Size:
1-1/2 X 3-1/2
Standard:
ASME B30.26, UNC
Type:
Machined
Unit:
/1
Weight:
7.2 lbs
WLL (lbs):
24000
Other Details
Design factor proof load 2:1 WLL, ultimate load 5:1 WLL
Forged carbon steel
Permanently embossed with trace code, VGD© and size for traceability to meet ASME B30.26
Quenched and tempered
UNC Threads
