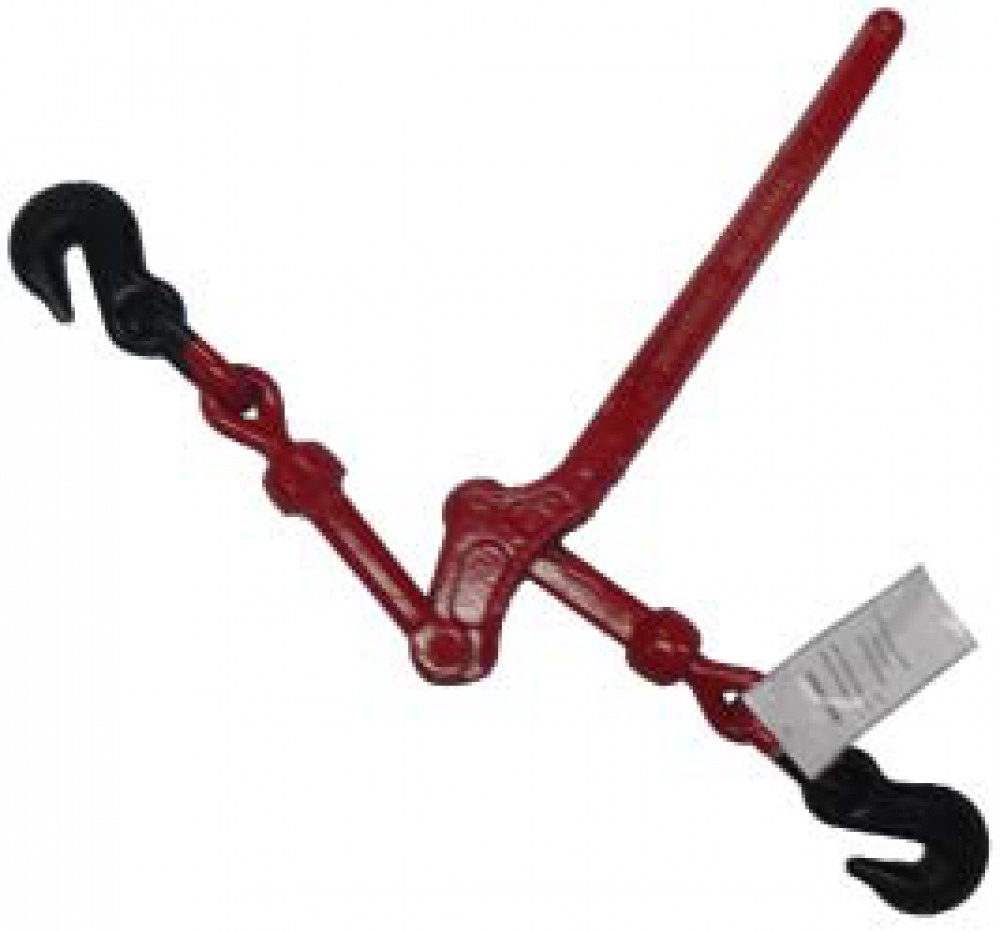

Lever Type Load Binders
Call For Price
- Part Number: 3904 1024
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (6)
Product Overview
Load binders are used for easy and effi cient tightening of chain used for lashing purposes.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Ratchet Straps and Tie Downs
Industrial Subtype:
Load Binders
Breaking Strength (lbs):
19800
Chain Size:
5/16 - 3/8
Color:
Red, Black
Description:
LOADBINDER 5/16"-3/8'' WLL 6600 LBS
Design Factor:
3.5:1
Dimensions (Inch) (A):
24.1
Dimensions (Inch) (B):
22.1
Dimensions (Inch) (D):
16
Dimensions (Inch) (F):
10.4
Dimensions (Inch) (G):
0.5
Dimensions (Inch) (Take):
4.25
Dimensions (Inch) ©:
17.9
Dimensions (Inch) €:
10.4
Material:
Steel
Type:
Lever
Unit:
/1
Weight:
7.4 lbs
WLL (lbs):
6600
Other Details
Ball and socket swivel joints at hook assemblies permit a straight line pull
Design Factor 3.5:1
Forged steel - quenched and tempered
Painted red with black hooks, embossed with VGD, Trace Code, WLL and chain dimensions
