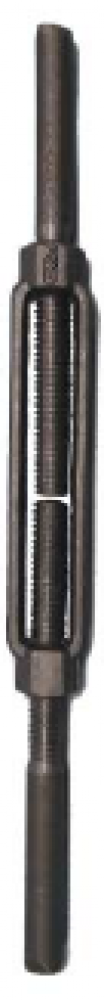

Forged Stub End Turnbuckles
Call For Price
- Part Number: 2926 1100C
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (6)
Specifications
Details
Industrial Category:
Hardware
Industrial Subcategory:
Hardware Supplies
Industrial Subtype:
Turnbuckles
Color:
Self Colored
Description:
FORGED T.B. STUB ENDS
Design Factor:
Proof Load 2.5:1, Ultimate Load 5:1
Detail:
1 X 6"
Diameter X Take-Up E X B:
1 x 6
Dimensions (Inch) (A):
9.01
Dimensions (Inch) (D):
19
Dimensions (Inch) (F):
5.01
Dimensions (Inch) ©:
1.51
Material:
Carbon Steel
Standard:
ASME B30.26, FF-T-791B Type 1, Form 1, UNC
Type:
Forged
Unit:
/1
Weight:
9.04 lbs
WLL (lbs):
10000
Other Details
Design factor proof load 2.5:1 the WLL - ultimate load 5:1 the WLL
Forged carbon steel bodies heat treated by normalizing. end fittings quenched and tempered
Meet the requirements of US Fed. Spec. FF-T-791B Type 1, Form 1 (open body)
Permanent embossed with R, L, VGD® and size for traceability to meet ASME B30.26
Self colored
UNC Threads
