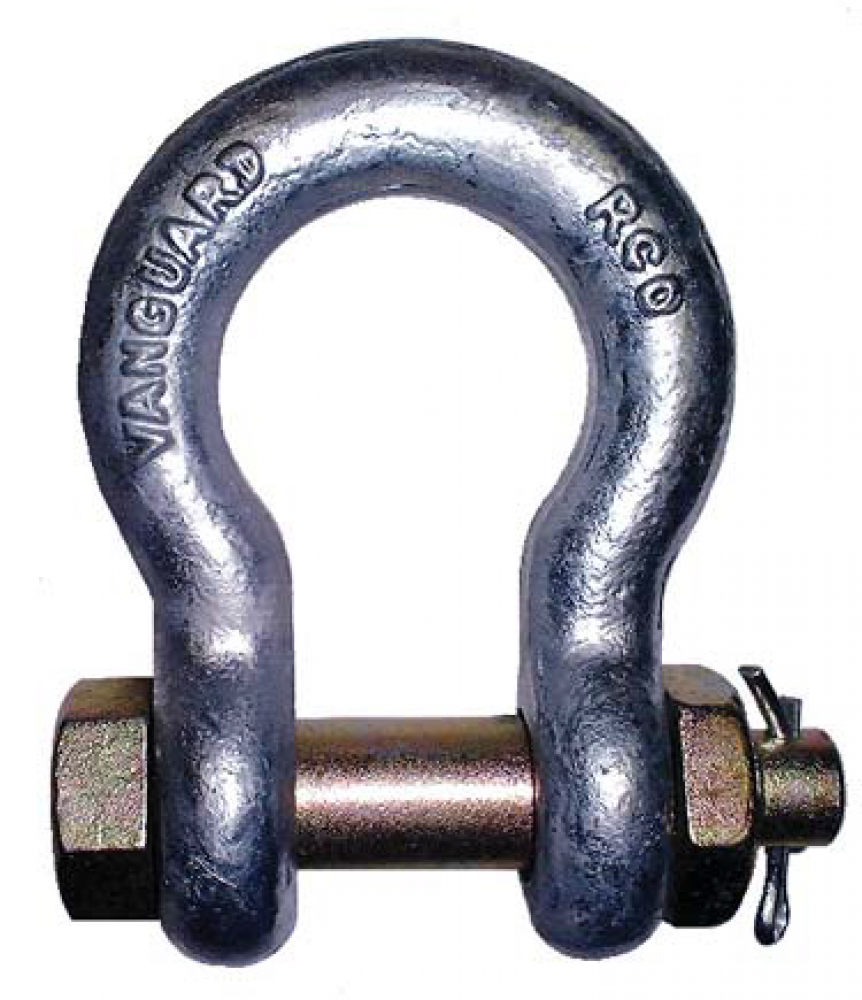

‘Golden Pin’ ® Bolt Type Anchor Shackles
Call For Price
- Part Number: 2914 0032
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (16)
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Lifting Hardware
Industrial Subtype:
Shackles
Description:
G.P.BOLT ANCHOR SHACKLE 1/2"
Design Factor:
6:1
Detail:
2 T
Dimensions (Inch) (D):
0.84
Dimensions (Inch) (F):
1.16
Dimensions (Inch) ©:
1.87
Dimensions (Inch) €:
1.19
Finish:
Hot Dipped Galvanized, Metallic Coating, Yellow Chromated
Item Weight (kgs):
0.308
Material:
Carbon Steel, Alloy
Pin Diameter (B):
5/8
Size (A):
1/2
Standard:
ASME B30.26, RR-C-271D, Type 4A, Grade A, Class 3
Type:
Golden Pin, Bolt
Unit:
/1
Weight:
0.8 lbs
WLL (Tons):
2
Other Details
Alloy Pin I.D.WLL (HS)
Design factor 6:1 To assure total traceability and to exceed the requirements of ASME B30.26 ‘Golden Pin’ shackles bodies are embossed with:
Heat treated carbon steel bows, quenched and tempered with Alloy pins
Hot dipped galvanized
Meet the performance requirements of U.S. Fed. Spec. RR-C-271D, Type 4A, Grade A, Class 3
Metallic coating of shackle pins allows for closer thread tolerances than possible for shackles with an extra layer of paint
Recommended for long term service installation as well as for applications where there is the possibility that the pin can rotate under load
Size
Trace Code
Trace Code ‘Golden Pin’ shackles pins are stamped with:
Vanguard
Vanguard I.D. (VGD®)
WLL (working load limit)
Yellow chromated for instant recognition
