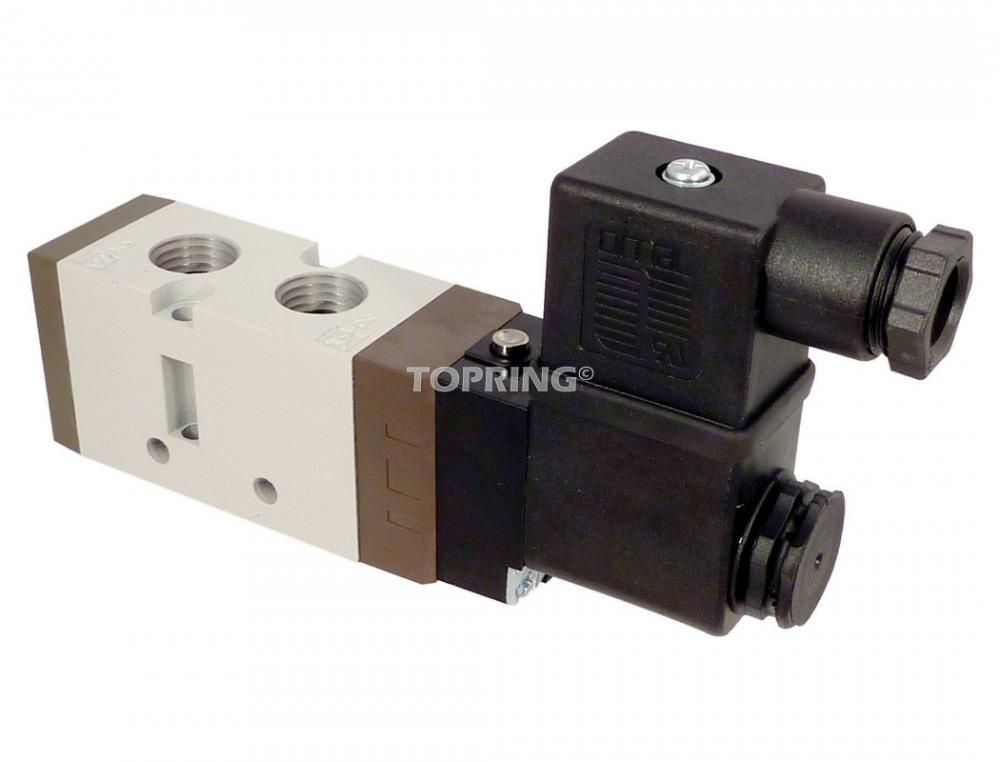

Valve 1 Solenoid 110VAC 5/2 3/8NPT OPTIMA
Call For Price
- Part Number: 80.97
- UPC: 00774679809706
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (22)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Valves
Item Length inches:
7.09
Item Quantity:
1
Item Weight lbs:
0.83
Product Series:
S80 OPTIMA and MAXPRO Air Control Valves
Spec 01:
Application: 5/2 (way / position)
Spec 02:
Category: Single solenoid
Spec 03:
Connection Type: 110 VAC
Spec 04:
Mechanism: Electrical (solenoid)
Spec 05:
Thread and Port Sizes: 3/8
UNSPSC Number:
40141603
Other Details
3 and 5 WAYS, 2 and 3 positions
5 Ways / 2 positions
A "maintained electrical signal shifts the single solenoid valve. When the signal is removed, the valve returns to its normal positions
Body, End Caps, and Manifold: Anodized Aluminium
Compact size
Cv: 2.00
Designed for in-line or bar manifolding
Electrical coil can be turned 360° in 90° increments to accommodate most installation requirements
High flow
Highly reliable spool technology
Manual Override: Push-Button
Maximum Cycles/Minute: 300
OPTIMA air control valves offer high flow performance and reliability
Other Internal Parts: Stainless Steel, Brass, Aluminium
Port Size: 3/8 (F) NPT
Quick response
Response Time: = 25 ms
Seals: Oil resistant Rubber lip gaskets
Solenoid manual override button shifts the valve without electrical power
Spool: Aluminium
Standard connector (DIN type)
These valves can be used to provide pilot signals for larger valves
Type: Single solenoid
Voltage : 110 VAC
Voltage Fluctuation: ±10%
Working Pressure: 22 to 145 PSI
Working Temperature: 5 to 60 °C
