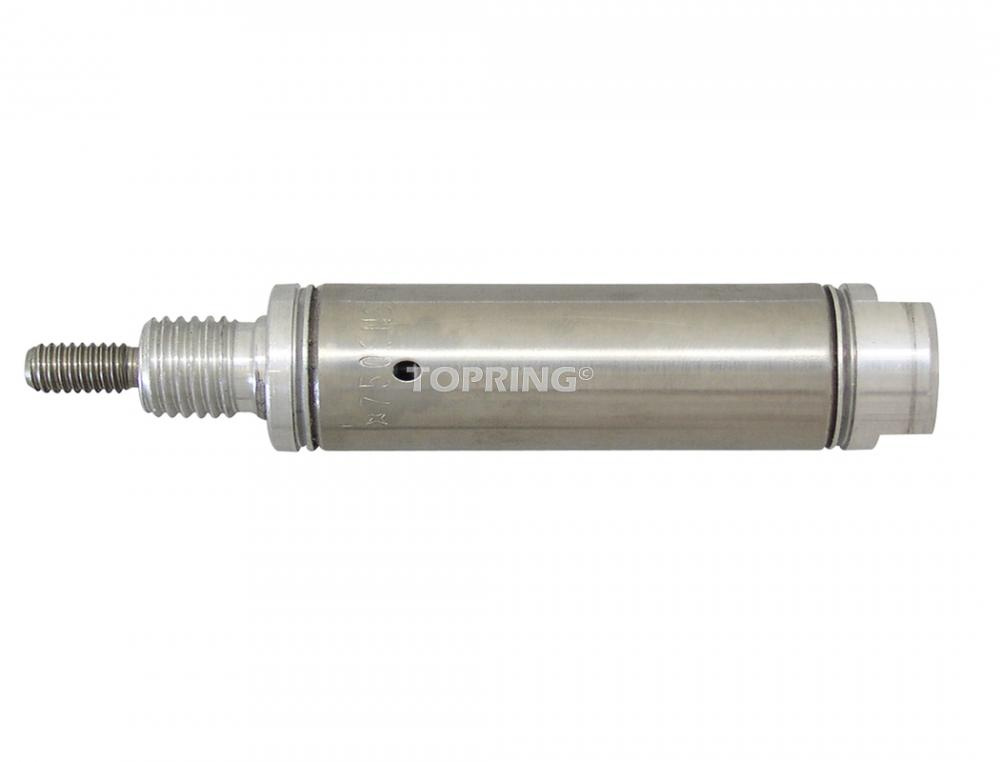

Stainless Steel Cylinder 1-1/2 In. Bore 4 In. Stroke
Call For Price
- Part Number: 83.707
- UPC: 00774679837075
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (16)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Pneumatic System Components
Industrial Subtype:
Air Cylinders
Body, Housing or Frame Material:
Stainless Steel
Bore Size (in):
1-1/2
Color:
Silver
Compatible Fluids:
Air
Country of Origin:
US
Cylinder Action Type:
Double
Installation Type:
Nose Mount
Item Quantity:
1
Item Weight (lbs):
1.11
Maximum Fluid Temperature (°C:
93
Maximum Inlet Pressure (PSI):
200
Minimum Fluid Temperature (°C:
-29
Order Minimum:
1
Order Multiple:
1
Order Unit Of Measure:
EA
Package Height (inches):
1.75
Package Length (inches):
10.00
Package Width (inches):
10.00
Product Series:
83
Product Type:
Pneumatic Cylinders
Return Mechanism:
Spring
Stroke Length (in):
4
With Exhaust:
Yes
Other Details
303 stainless steel piston rod
304 stainless steel body
Compatible fluid: compressed air only
Front installation
High strength aluminum alloy piston and cap
Maximum inlet pressure: 250 PSI
Nitrile rubber seals
Oil-impregnated porous bronze piston rod ring
Operating temperature: -29 to 93°
Piano wire spring
Single action
