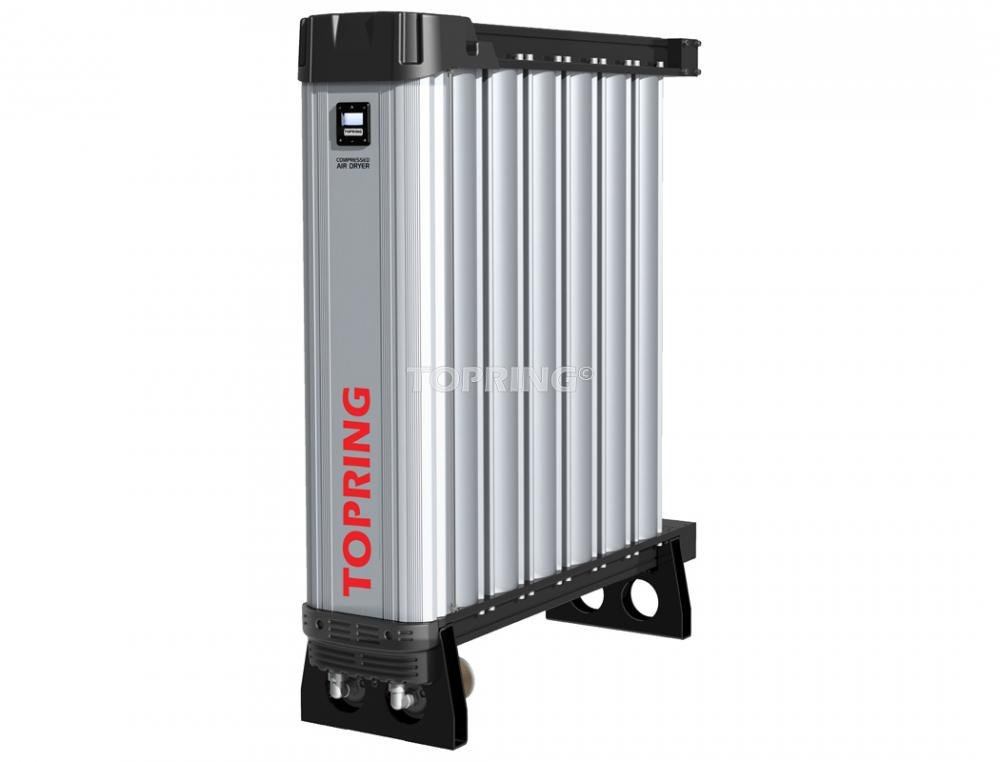

Regenerative Air Dryer 750 SCFM & Filter M01
Call For Price
- Part Number: 49.74
- UPC: 00774679091491
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (8)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Industrial Subtype:
Desiccant Dryers
Item Length inches:
0
Product Groups:
Group 1: Compressed air treatment
Product Series:
S49 Refrigerant Air Dryers
UNSPSC Number:
23201202
Other Details
• At 100 PSI, 38 °C inlet conditions and a -40 °C outlet pressure dew point
• Available airflows from 10 to 212 SCFM at 100 PSI operating pressure
• Available upon special request up to 1110 SCFM
• Compressed air contains moisture, such as water vapors, aerosols and contaminants, in addition to other impurities
• CRN, CE , and CSA
• CRN, CE and CSA
• Dew Point: -40 °C
• Dimensions: Height 189 cm, Width 40 cm, Depth 96 cm
• Effectiveness pressure dew point at -40°C under pressure preventing vapor condensate from becoming liquid at a given pressure
• Extruded anodized powder-coated , Aluminum
• For all other conditions, please contact TOPRING to select the proper model
• Heatless configuration
• Inlet/Outlet: 2-1/2 NPT
• Low energy costs and simplified maintenance
• Maximum Airflow Capacity: 750 SCFM
• Maximum protection against corrosion
• Maximum Working Pressure: 145 PSI
• Minimum Working Pressure: 58 PSI
• Moisture and particulate protection of the production process
• PLC periodically switches the solenoid valves when the compressor is running, reversing the function of each column and therefore ensuring a continuous supply of dry air
• Robust and reliable PL (programmable logic controller)
• Rotary mounting brackets included with models 54.310, 54.312, 54.314
• Safe and quiet operation
• This moisture must be treated to prevent the growth of bacteria, mold, particulates and corrosion at the point of application
• Universal Power Supply: 100V to 240V / 50Hz or 60Hz
• Weight: 425 kg
• Working Temperature: 10 to 40 °C
