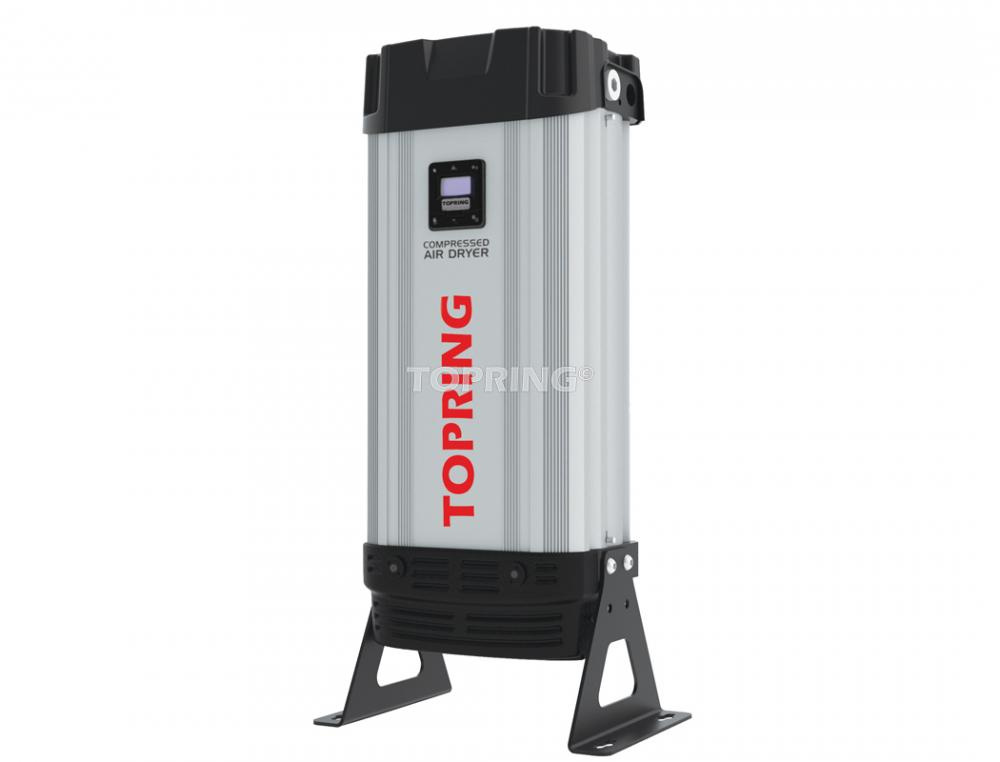

Regenerative Air Dryer 177 SCFM & Filter M01
Call For Price
- Part Number: 49.73
- UPC: 00774679091361
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (10)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Industrial Subtype:
Desiccant Dryers
Item Length inches:
0
Product Groups:
Group 1: Compressed air treatment
Product Series:
S49 Refrigerant Air Dryers
UNSPSC Number:
23201202
Other Details
Regenerative air dryers have been 100 % function and performance tested at the factory to ensure the highest standard of performance, delivering compressed air purity in accordance with ISO8573:1 - 2001, Class 2 dirt (1 micron) and Class 2 water
• At 100 PSI, 38 °C inlet conditions and at -40 °C outlet pressure dew point
• Compact design allows installation in spaces too small for traditional dryers
• Constant flow and pressure. Pressure is equalized before switching columns to ensure uninterrupted compressed air and consistent air pressure. Equalization also ensures long desiccant life due to minimized desiccant attrition
• CRN, CE , and CSA
• CRN, CE and CSA
• Dew Point: -40 °C
• Dimensions: Height 185 cm, Width 43 cm, Depth 28 cm
• Extruded anodized powder-coated Aluminum resistant to corrosion
• For all other conditions, please contact TOPRING to select the proper model
• High efficiency moisture removal and reliable operation with PLC (Programmable Logic Controller) controlled solenoid valves
• High quality construction, 100 % tested for leaks, proper operation and dew point performance
• High tensil Aluminum columns are alocromed then externally powder coated to provide maximum protection for corrosive environments
• Inlet/Outlet: 1 NPT
• Integral volumetric flow limiter prevents overflow ensuring consistent dew point performance
• Maximum Airflow Capacity: 177 SCFM
• Maximum Working Pressure: 217 PSI
• Minimum Working Pressure: 58 PSI
• Patented, combined filter and desiccant cartridges can be serviced in less than 15 minutes
• Ready to be installed and ready to use
• Rotary mounting brackets are ideal for either floor or wall mounting
• Universal Power Supply: 100V to 240V / 50Hz or 60Hz
• Weight: 112 kg
• Working Temperature: 2 to 50 °C
