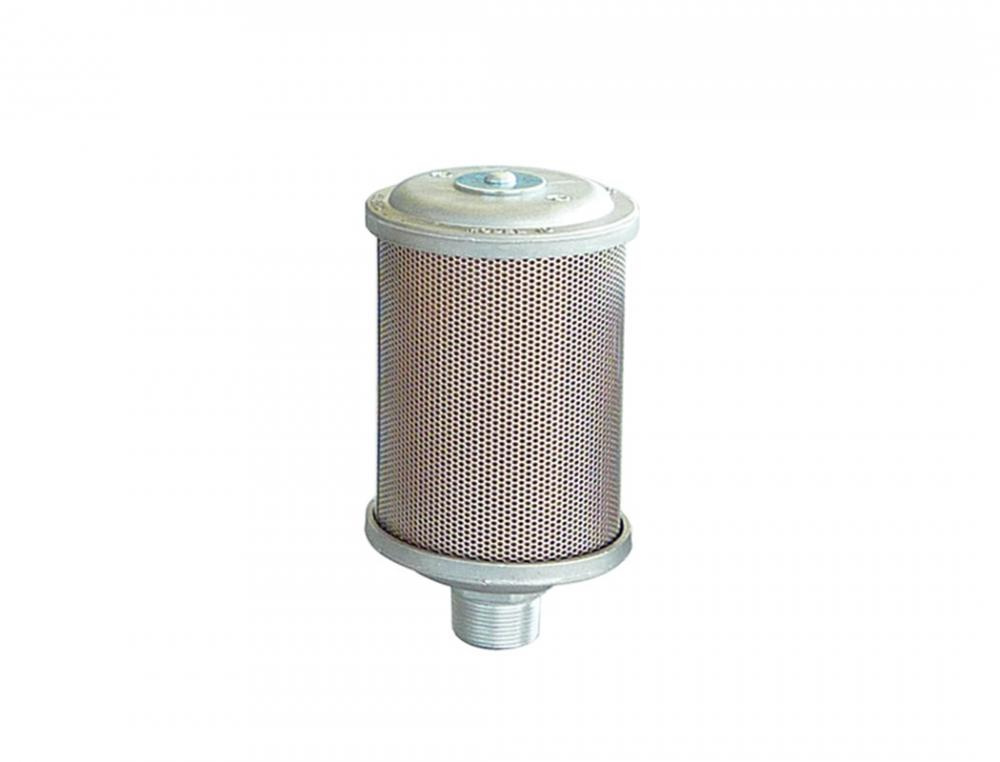

Pneumatic Muffler With Pressure Relief Valve 3/4 (M) NPT
Call For Price
- Part Number: 86.765
- UPC: 00774679039882
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Pneumatic System Components
Industrial Subtype:
Pneumatic Muffler
Airflow Control Valve Included:
No
Body, Housing or Frame Material:
Aluminum
Check Valve Included:
Yes
Color:
Silver; Gold
Compatible Fluids:
Air
Country of Origin:
CN
Filter Included:
Yes
Inlet Connection Gender:
Male
Inlet Connection Subtype:
NPT
Inlet Connection Type:
Threaded
Inlet Nominal Size (Imperial):
3/4 in
Item Height (inches):
7.87
Item Length (inches):
3.54
Item Quantity:
1
Item Weight (lbs):
1.15
Item Width (inches):
3.54
Maximum Inlet Pressure (PSI):
146
Mechanism or Internal Moving Parts Material:
Stainless Steel
Muffler Included:
Yes
Order Minimum:
1
Order Multiple:
1
Order Unit Of Measure:
EA
Package Height (inches):
7.87
Package Length (inches):
3.54
Package Weight (lbs):
1.15
Package Width (inches):
3.54
Product Series:
86
Product Type:
Pneumatic Mufflers
With Exhaust:
Yes
Other Details
25-micron particulate filter element
409 stainless steel discharge valve
Airflow at 90 PSI: 544 SCFM
Aluminum cover
Cellulose fiber
Maximum operating pressure: 145 PSI
Noise reduction up to 15 dB
Operating temperature: -10 to 80°
Zinc-plated coupling bars and locking nuts
