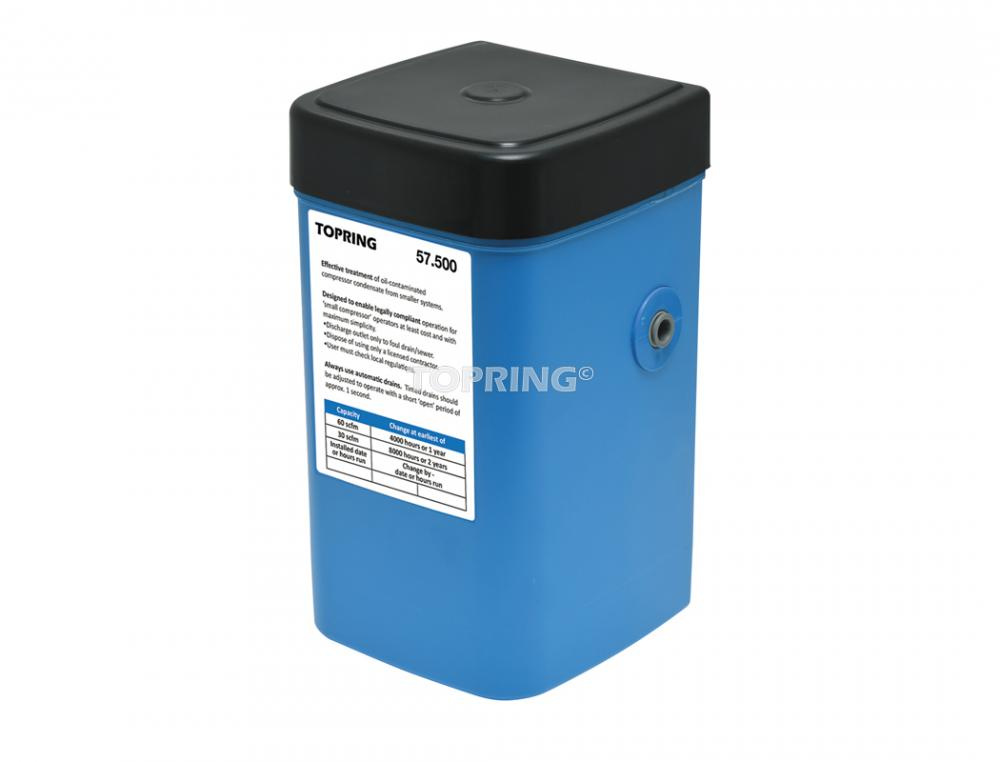

Oil/Water Separator 60 SCFM HIFLO
Call For Price
- Part Number: 57.5
- UPC: 00774679058944
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Item Length inches:
6.3
Item Quantity:
1
Item Weight lbs:
2.71
Product Series:
S57 Water/Oil Separators
Spec 01:
Airflow: 60-120 SCFM
Spec 02:
Application: All application type
Spec 03:
Category: Water/oil separator with simplified maintenance
Spec 04:
Thread: Inlet 1/4 O.D. NPT
Spec 05:
Use: Less than 5 ppm at the outlet
UNSPSC Number:
20142801
Other Details
A cost effective and reliable solution that meet environmental regulations for condensate disposal
Dimensions: A) 22.86 cm x B) 12.70 cm x C) 12.70 cm
Easy to handle, install and remove
Expected duration of the filter element: 8 000 hrs at 30 SCFM 5 000 hrs at 60 SCFM
High quality single piece molded body
Highest performance and low operating cost
Inlet condensate temperature range: 1.7 to 43 °C
Inlet(s): 1/4 O.D. NPT
It is easy to select a water/oil separator model based on the applications airflow requirements ( SCFM)
Maximum condensat inlet pressure: 232 PSI
Maximum Flow ** : 30 SCFM** Choice based on a compressor using polyglycol
Maximum Flow *: 60 SCFM* Choice based on a compressor using mineral or synthetic oil with an oil residue adsorption capacity of 5 mg/m3 or less
Maximum oil carry over: < 20 ppm
Multiple inlet connections for multiple purge points
No pre-soaking required saving installation and maintenance costs
Outlet: 3/8 O.D. NPT
Polyethylene
Reliable, lightweight, clean, dust-free
Replacement media kit: --
They separate any type of condensate discharged from a drain and reduce condensate disposal costs
TOPRING water/oil separators efficiently treat oils and other condensate contaminants from the compressed air system for safe and legal disposal in the drain
Wall mounting bracket: included
Weight : 1.3 kg
With an advanced polypropylene filter, it can separate any type of condensate containing any type of compressor lubricant discharged from any type of drain, without the need for a settling or storage tank
