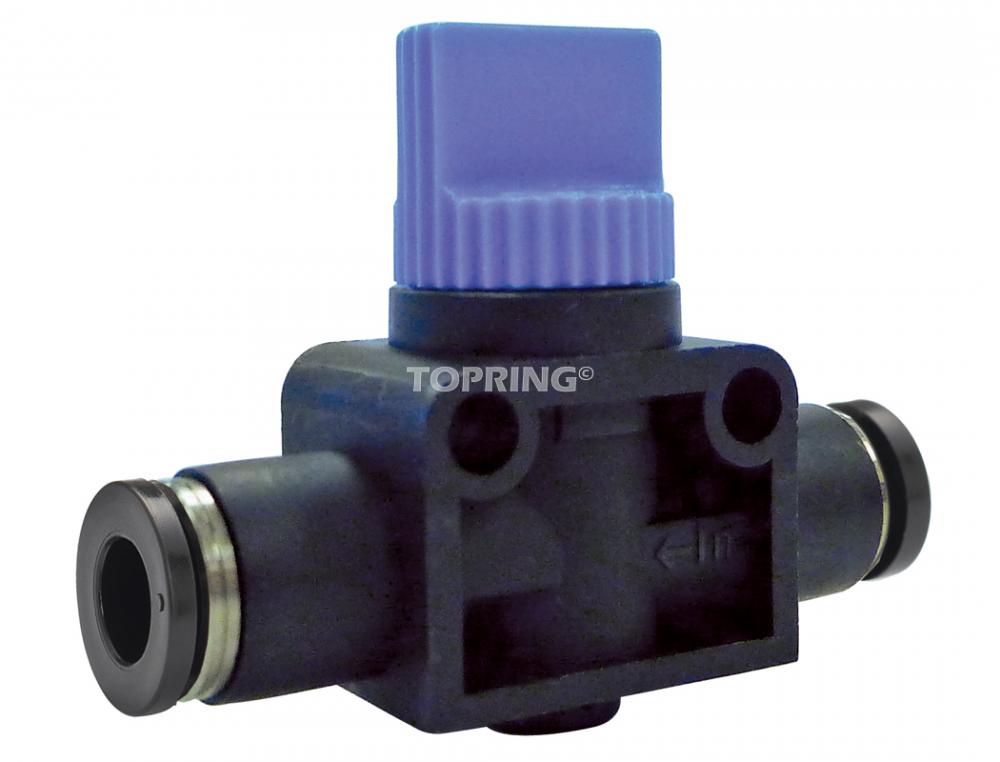

Mini Hand Valve 3W 1/4 MAXFIT
Call For Price
- Part Number: 44.07
- UPC: 00774679440701
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Valves
Item Length inches:
0.87
Item Quantity:
5
Item Weight lbs:
0.23
Product Series:
S44-46 MAXFIT Polymer Push-to-Connect Fittings
Spec 01:
Category: Miniature hand valve
Spec 02:
Format: Imperial
Spec 03:
Outside diameter: 1/4 in O.D.
Spec 04:
Subcategory: Straight shape
UNSPSC Number:
40141600
Other Details
Adjusting screw: Nickel-plated Brass
Body: Polymer (PBT)
Compact design: Allows fittings to be closely mounted
Elastic Sleeve: Nitrile Rubber
Fully reusable: Designed for multiple connections and disconnections with leak-free operations and solid tubing gripping
Instantaneous connection/disconnection: Designed for fast assembly, disassembly and reassembly without tools
Lock Claws: Stainless steel
Lock nut: Aluminium
Maximum working pressure: 150 PSI
Needle: Nickel-plated Brass
NPT Thread / series 44: Tubing diameter in inches (imperial system)
O-Ring: Nitrile rubber
Optimum flow: No part of the fitting goes inside the tubing -unrestricted tubing I.D. allows for maximum airflow
PERFECT SEAL:A nitrile rubber elastic sleeve guarantees a perfect seal between standard O.D. tubing and the body of the fitting
POSITIVE GRIPPING ACTION:Stainless steel lock claws hold the tubing securely without damaging its surfaceVibration and pressure surges are safely absorbed to prevent accidental disconnections
Quick and easy connection: Wide release collar allows fast and trouble-free tubing removal
Quick connect design: One-piece fitting saves over 75 % of assembly time compared to standard compression fittings
READY-TO-USE THREADS:Male threads have a pre-applied sealant which allows the fitting to be reused up to five times without the need for additional sealants
Release collar colors: Black, mm and inch size diameter
Release Collar: Polyacetal resin
Threaded body: Nickel-plated Brass
threaded fittings: All threaded fittings are made of nickel-plated brass
Tubing O.D.: 1/4 in
Tubing size identification: Tubing diameter indicated on release collar
Working Temperature: 5 to 60 °C
