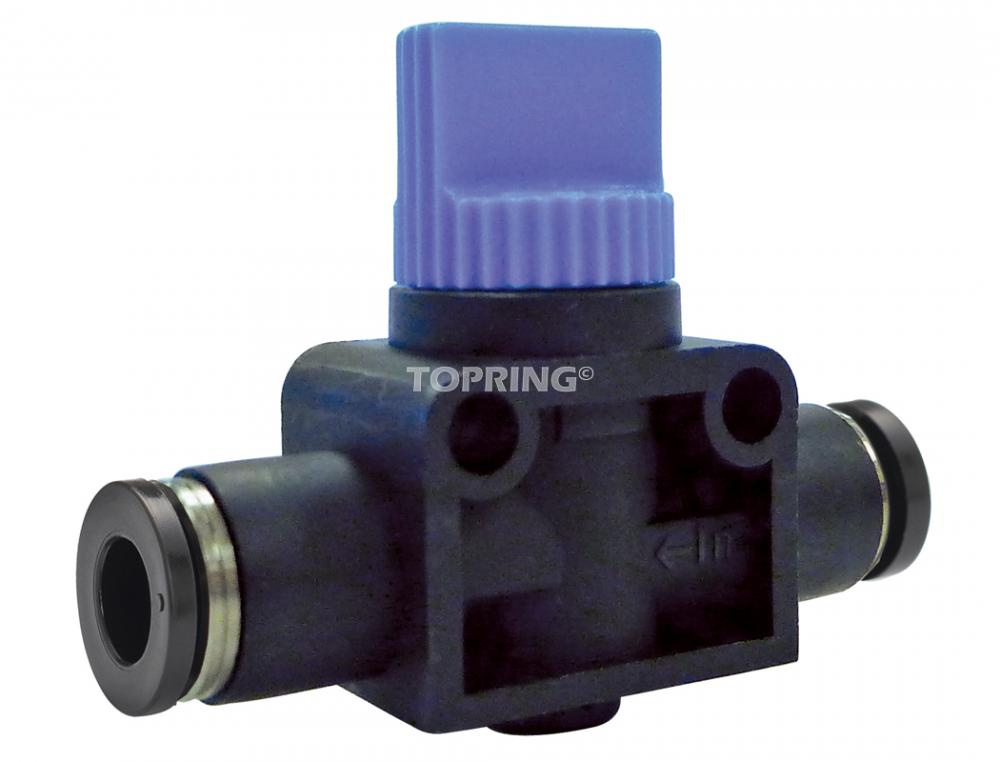

Mini Hand Valve 2W 4mm TOPFIT
Call For Price
- Part Number: 42.07
- UPC: 00774679045975
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Valves
Item Length inches:
0.79
Item Quantity:
1
Item Weight lbs:
0.06
Product Series:
S40-42 TOPFIT Polymer Push-to-Connect Fittings
Spec 01:
Category: Miniature hand valve
Spec 02:
Format: Metric
Spec 03:
Outside diameter: 4 mm O.D.
Spec 04:
Subcategory: Straight shape
UNSPSC Number:
40141600
Other Details
Adjusting screw: Nickel-plated Brass
Body: Polymer (PBT)
BSPT Thread / Series 42: Tubing diameter in millimeters (metric)
Compact design: Allows fittings to be closely mounted
Elastic Sleeve: Nitrile Rubber
Fully reusable: Designed to resist multiple connections and disconnections with leak-free operations and solid tubing gripping
Instantaneous connection/disconnection: Wide release collar allows fast and trouble-free tubing removal
Lock claw: Stainless Steel
Lock nut: Aluminium
Maximum working pressure: 150 PSI
Needle: Nickel-plated Brass
O-Ring: Nitrile rubber
Optimum flow: No part of the fitting goes inside the tubing for maximum unrestricted airflow
PERFECT SEAL: A nitrile rubber elastic sleeve guarantees a perfect seal between standard O.D. tubing and the body of the fitting
POSITIVE GRIPPING ACTION: Stainless steel lock claws hold the tubing securely without damaging its surfaceVibration and pressure surges are safely absorbed to prevent accidental disconnections
Quick connect design: One-piece fitting saves over 75 % of assembly time compared to standard compression fittings
READY-TO-USE THREADSMale threads have a pre-applied sealant which allows the fitting to be reused up to five times without the need for additional sealants
Release Collar Colors White: inch size diameter Black: mm size diameter
Release Collar: Polyacetal resin
The 2-Way miniature hand valve does not discharge the residual pressure
Threaded body: Nickel-plated Brass
threaded fittings: All threaded fittings are made of nickel-plated brass resistant to corrosion
Tubing O.D.: 4 mm
Tubing size identification: Tubing diameter indicated on release collar
Working Temperature: 0 to 60 °C
