![Liquid Gauge 4" - 1/4NPT LM 0-100 SS](/vendors/5495/large/55.920_web_01.jpg "Liquid Gauge 4" - 1/4NPT LM 0-100 SS")

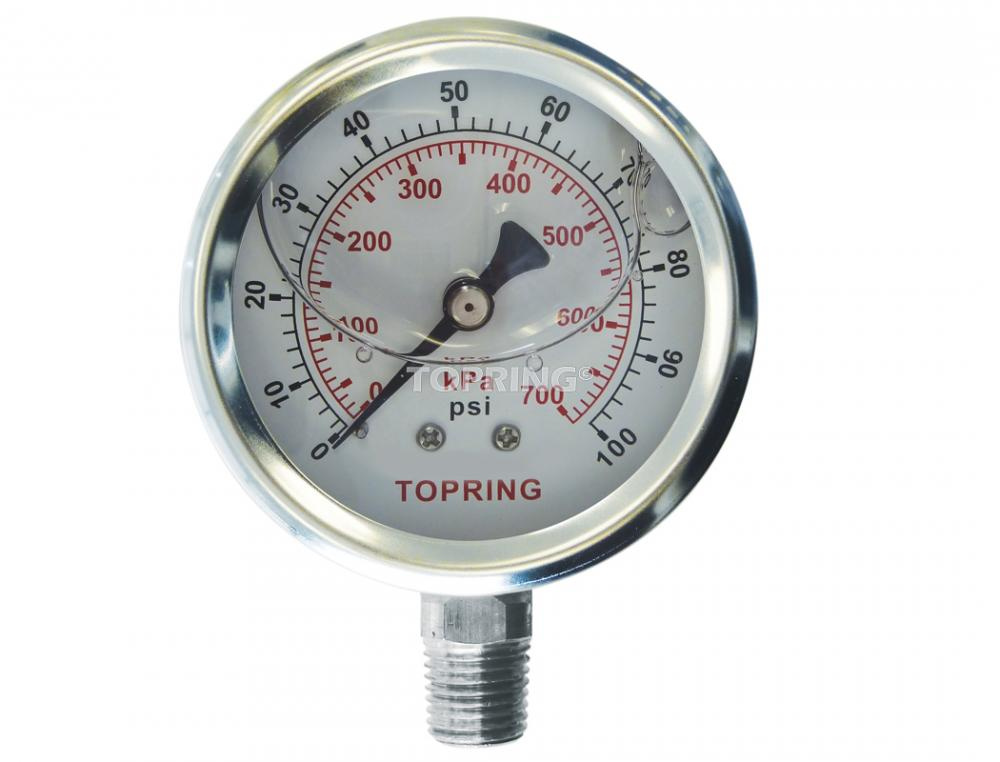

Liquid Gauge 4" - 1/4NPT LM 0-100 SS
Call For Price
- Part Number: 55.92
- UPC: 00774679559205
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Specifications
Details
Industrial Category:
Test Instruments
Industrial Subcategory:
Pressure and Vacuum Measuring
Item Length inches:
5.39
Item Quantity:
1
Item Weight lbs:
1.23
Product Series:
S55 Pressure Gauges
Spec 01:
Category: Glycerine pressure gauge
Spec 02:
Material: Stainless steel 304
Spec 03:
Outside diameter: 4 in
Spec 04:
Subcategory: Lower mount (LM) 1/4 NPT
Spec 05:
Working pressure: 0 to 100 PSI
UNSPSC Number:
41112412
Other Details
316 stainless steel pressure gauges have exceptional features that prolong lifespan and reliability
Accuracy: ± 1.6% of the full scale
Bourdon Tube: 316 Stainless steel
Calibration certifications available upon request
Connection: 316 Stainless steel
Crystal: Acrylic
Diameter: 4 in
Dual scale in PSI (black) and in kPa (red)
Excellent resistance to strong fluctuations, pulsations, vibration and metal fatigue
Fluid: Air, water, oil
Gycerine prevents needle vibrations, protects the mechanism and facilitates pressure reading
High quality pressure gauge with glycerine which prolongs the service life of the pressure gauge
Housing: 304 Stainless steel
LM: 1/4 NPT
Movement: 316 Stainless steel
Pressure gauges with CRN numbers available upon request
Pressure Range: 0-100 PSI
Provide excellent resistance to corrosion, acidity and alkalinity
Working Temperature: -18 to 60 °C
