![Gauge 4" - 1/4NPT LM 0-160](/vendors/5495/large/55.520_web_01.jpg "Gauge 4" - 1/4NPT LM 0-160")

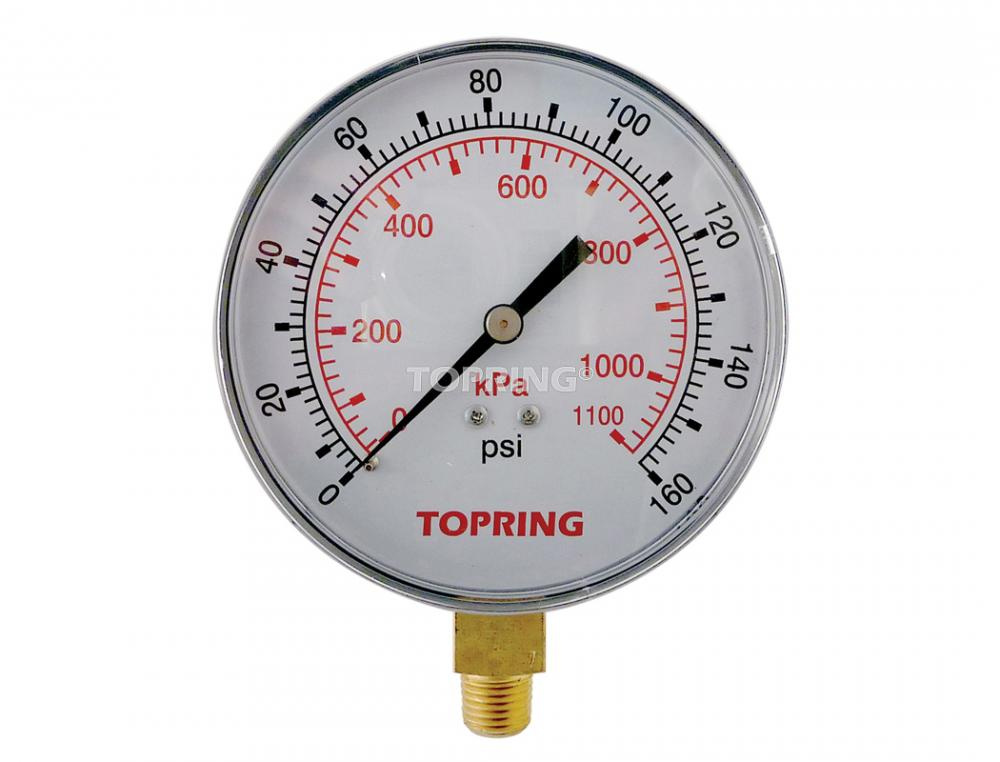

Gauge 4" - 1/4NPT LM 0-160
Call For Price
- Part Number: 55.52
- UPC: 00774679555207
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Specifications
Details
Industrial Category:
Test Instruments
Industrial Subcategory:
Pressure and Vacuum Measuring
Item Length inches:
4.92
Item Quantity:
1
Item Weight lbs:
0.58
Product Series:
S55 Pressure Gauges
Spec 01:
Category: Standard dry pressure gauge
Spec 02:
Material: Steel
Spec 03:
Outside diameter: 4 in
Spec 04:
Subcategory: Lower mount (LM) 1/4 NPT
Spec 05:
Working pressure: 0 to 160 PSI
UNSPSC Number:
41112412
Other Details
Accuracy: ± 1.6 % of the full scale
Bourdon Tube: Phosphorous bronze
Calibration certifications available upon request
Connection: Brass
Crystal: Acrylic
Diameter: 4 in
Dual scale in PSI (black) and in kPa (red)
Housing: Black painted steel
LM: 1/4 NPT
Movement: Brass and nylon with highly polished bearing surfaces
Precision movement provides accurate readings
Pressure gauges with CRN numbers available upon request
Pressure Range: 0-160 PSI
Stem and Connection are machined from a single piece of brass
TOPRING standard dry pressure gauges are high quality pressure gauges designed to provide reliable service in applications and environments where the atmospheric and substances used do not have corrosive effects on brass
Working Temperature: -18 to 60 °C
