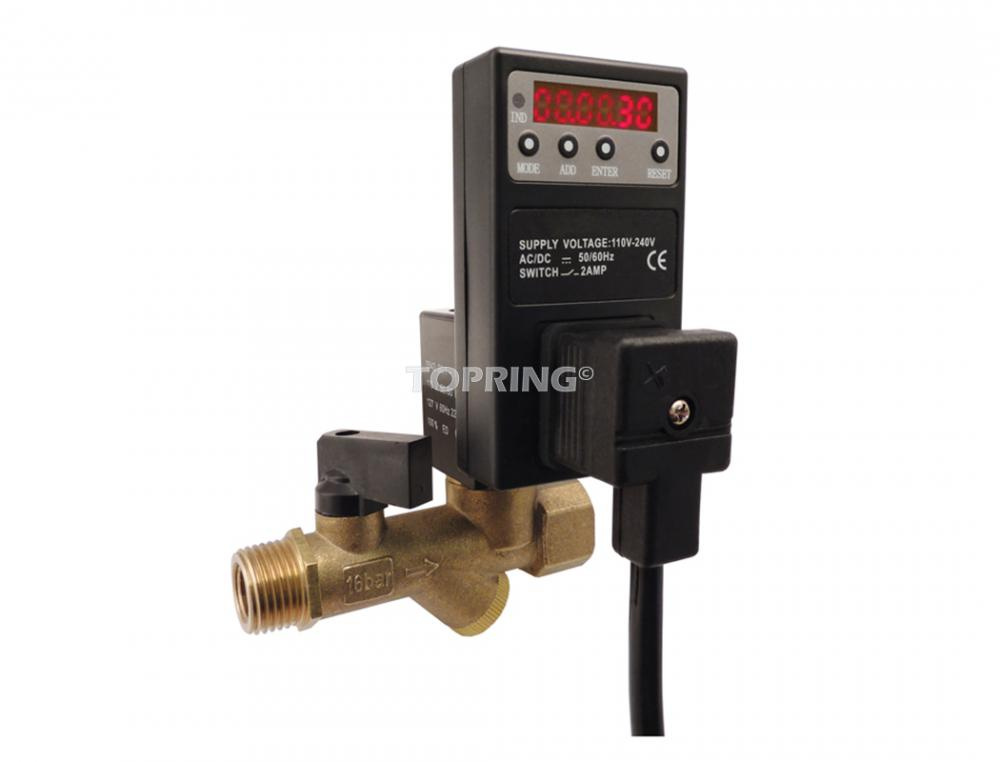

Automatic Drain 1/2 (M) or 1/4 (F) NPT
Call For Price
- Part Number: 59.365.24
- UPC: 00774679052812
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Pneumatic System Components
Industrial Subtype:
Air Operated Drain Valves
Pneumatic Zero Loss Condensate Drains
Body, Housing or Frame Material:
ABS Polymer
Compatible Fluids:
Air
Country of Origin:
CN
Drain Type:
Automatic
Inlet Connection Gender:
Male
Inlet Connection Subtype:
NPT
Inlet Connection Type:
Threaded
Inlet Nominal Size (Imperial):
1/2 in
Item Quantity:
24
Item Weight (lbs):
1.10
Maximum Cycle Opening Time (sec):
360000
Maximum Fluid Temperature (°C:
90
Maximum Inlet Pressure (PSI):
230
Maximum Interval Time Between Two Cycles (min):
360000
Mechanism or Internal Moving Parts Material:
Stainless Steel; Brass
Minimum Cycle Opening Time (sec):
1
Minimum Interval Time Between Two Cycles (min):
1
Order Minimum:
24
Order Multiple:
24
Order Unit Of Measure:
EA
Package Height (inches):
8.00
Package Length (inches):
25.00
Package Width (inches):
25.00
Power Supply Type:
Wired
Product Series:
59
Product Type:
Condensate Drains
Trigger Type:
Digital Timer
Other Details
2 air inlet connection options: 1/2 (M) NPT external thread or 1/4 (F) NPT internal thread
ABS plastic timer housing
Air outlet connection: 1/2 (F) NPT
Brass and stainless steel valve
Brass strainer
FKM gasket
MAXDRAIN model
Maximum operating pressure: 230 PSI
Operating temperature: 0 to 60°
Power cable included
Purge interval setting: 1 second to 99 hours 59 minutes and 59 seconds
Purge time settings: 1 second to 99 hours 59 minutes and 59 seconds
With digital timer
