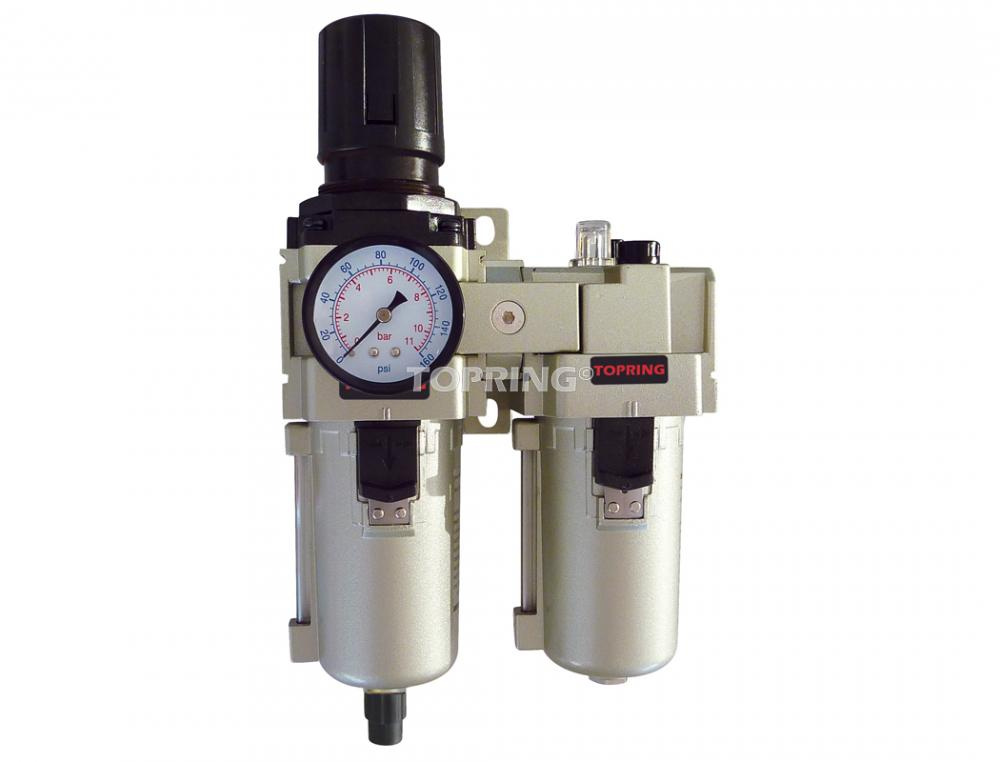

AIRFLO 450 F/R+L 3/4 Semi-auto MB
Call For Price
- Part Number: 51.52
- UPC: 00774679028626
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Item Length inches:
11.02
Item Quantity:
1
Item Weight lbs:
4.96
Product Series:
S51 AIRFLO FRL
Spec 01:
Airflow: 125 to 212 SCFM
Spec 02:
Category: Filter + Regulator + Lubricator
Spec 03:
Subcategory: AIRFLO 450
Spec 04:
Thread: 3/4 (F) NPT
Spec 05:
Working pressure: 150 PSI
UNSPSC Number:
40161516
Other Details
5-60 PSI
Accurate pressure control with little drift
Bayonet type bowl locking system
Body Die cast aluminium
Bowl Capacity: Filter/regulator: 45 ml, Lubricator: 130 ml
Bowl Guard: Steel
Bowl Type: Die cast aluminium
Check Flap: Polyurethane
Compact design with space saving integrated F/R
Compact size for easy installation
Deflector & Spinner: ABS
Diaphragm: EPDM rubber
Drain: Semi-automatic, 1/8 (F) NPT
Fill Plug: ABS
Filter Element: Polyethylene, 5 microns
Filtration: 5 microns
High performance filtration, regulation and lubrication
Lubrication proportioned to airflow
Lubricator Adjusting Knob: ABS
Lubricator Sight Gauge: Polycarbonate
Maximum Airflow at 100 PSI: 105 SCFM
Maximum working pressure: 150 PSI
O-Rings & Seals: EPDM rubber
Options: 5-30 PSI
Poppet Valve: Brass and rubber
Port Size: 3/4 (F) NPT
Pressure gauge and mounting bracket included
Pressure Gauge Port Size: 1/4 (F) NPT
Pressure Range: Standard: 5-125 PSI
Quick and easy mounting and removal with modular system
Regulation Type: Relieving
Regulator Adjusting Knob: Reinforced nylon
Regulator Cap: Die cast aluminium
Regulator Spring: Stainless steel
Removable locking push-pull adjusting knob
Retainer: ABS
Silicone-free assembly lubricant
Standard semi-automatic drain requires a simple tug of the ring to drain
Working Temperature: 5 to 60 °C
