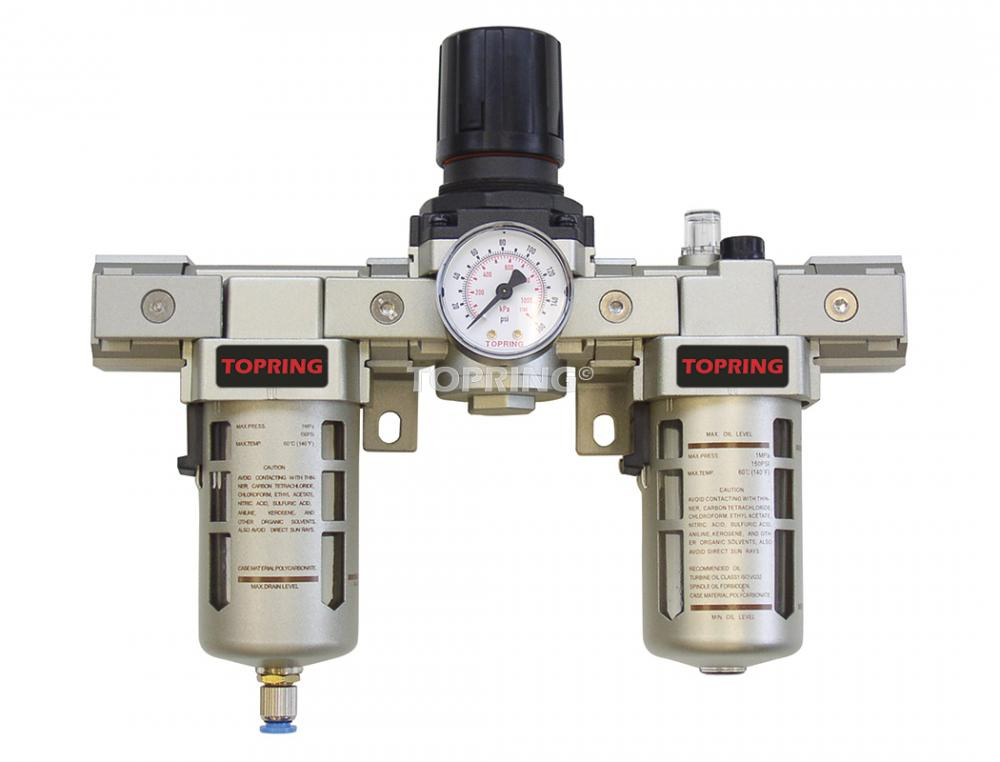

AIRFLO 400 F+R+L 3/8 Semi-auto
Call For Price
- Part Number: 51.41
- UPC: 00774679514105
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Item Length inches:
8.03
Item Quantity:
1
Item Weight lbs:
6.12
Product Series:
S51 AIRFLO FRL
Spec 01:
Airflow: 125 to 212 SCFM
Spec 02:
Category: Filter + Regulator + Lubricator
Spec 03:
Subcategory: AIRFLO 400
Spec 04:
Thread: 3/8 (F) NPT
Spec 05:
Working pressure: 150 PSI
UNSPSC Number:
40161516
Other Details
5-60 PSI
Accurate pressure control with little drift
Body Die cast aluminium
Bowl Capacity: Filter: 45 ml, Lubricator: 130 ml
Bowl Guard: Steel
Bowl Type: Polycarbonate with steel guard
Coalescing high performance filter that eliminates all solid particles superior to 0.01 micron and 99.99 % of water and oil aerosols
Drain: Semi-automatic, 8 mm O.D. tubing
Easy removal of individual units
Filtration: 5 microns
Includes venting safety lockout valve for closing flow to or from AIRFLO F+Fc+R
Maximum Airflow at 100 PSI: 141 SCFM
Maximum working pressure: 150 PSI
Options: 5-30 PSI
Port Size: 3/8 (F) NPT
Pressure Gauge Port Size: 1/4 (F) NPT
Pressure gauge, piping adapters and mounting brackets included
Pressure Range: Standard: 5-125 PSI
Removable locking push-pull adjusting knob
Shut off valve with 3 ports and 2 positions relieves downstream pressure when closed and can be locked in closed position.
Standard semi-automatic drain requires a simple tug of the ring to drain
Working Temperature: 5 to 60 °C
