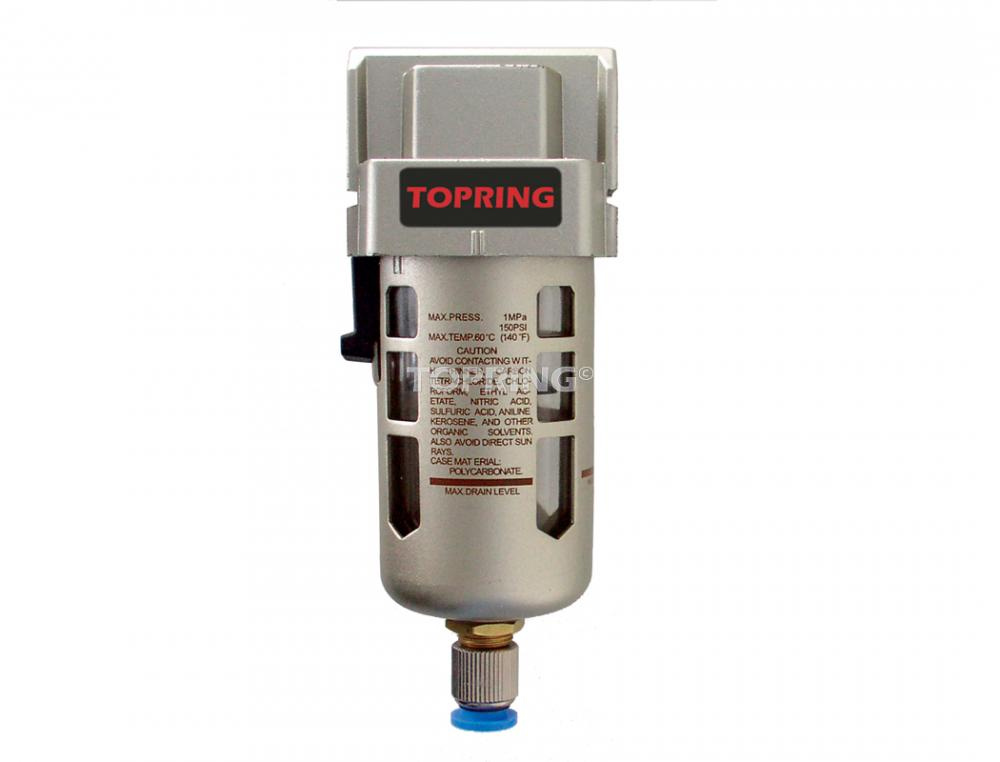

AIRFLO 300 Filter 1/4 Semi-auto
Call For Price
- Part Number: 51.36
- UPC: 00774679513603
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Item Length inches:
7.09
Item Quantity:
1
Item Weight lbs:
0.86
Product Series:
S51 AIRFLO FRL
Spec 01:
Airflow: 40 to 80 SCFM
Spec 02:
Category: Filter
Spec 03:
Subcategory: AIRFLO 300
Spec 04:
Thread: 1/4 (F) NPT
Spec 05:
Working pressure: 150 PSI
UNSPSC Number:
40161516
Other Details
Body Die cast aluminium
Bowl Capacity: 20 ml
Bowl Guard: Steel
Bowl Type: Polycarbonate with steel guard
Compact size
Deflector & Spinner: ABS
Diaphragm: EPDM rubber
Drain: Semi-automatic, 8 mm O.D. tubing
Filter Element: Polyethylene, 5 microns
Filtration: 5 microns
Maximum Airflow at 100 PSI: 53 SCFM
Maximum working pressure: 150 PSI
Mounting bracket included
O-Rings & Seals: EPDM rubber
Poppet Valve: Brass and rubber
Port Size: 1/4 (F) NPT
Regulator Adjusting Knob: Reinforced nylon
Regulator Cap: Reinforced nylon
Regulator Spring: Stainless steel
Removes contaminants down to 5 micron in size
Removes water through centrifugal force
Standard semi-automatic drain requires a simple tug of the ring to drain
Working Temperature: 5 to 60 °C
