![90° Angle Bracket Mounting 3-1/4"](/vendors/5495/large/81.560_web_01.jpg "90° Angle Bracket Mounting 3-1/4"")

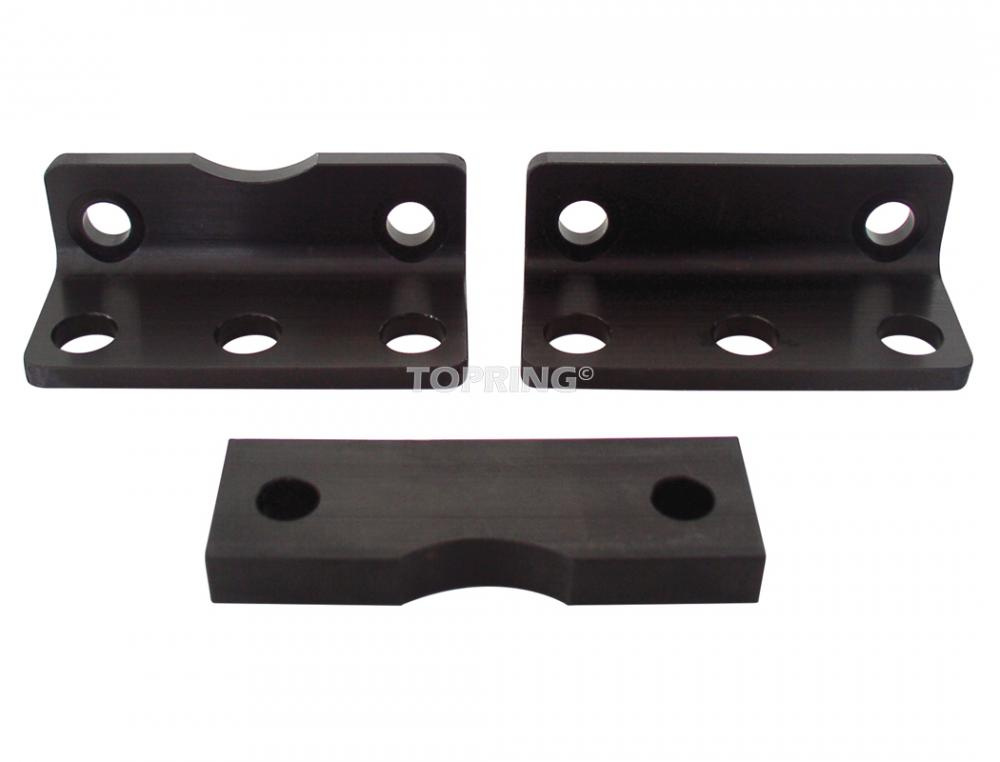

90° Angle Bracket Mounting 3-1/4"
Call For Price
- Part Number: 81.86
- UPC: 00774679818609
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (13)
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Pneumatic System Components
Item Length inches:
1
Item Quantity:
1
Product Series:
S81-83 Pneumatic Cylinders
Spec 01:
Bore size: 3-1/4"
Spec 02:
Category: Pneumatic cylinder NFPA
Spec 03:
Subcategory: Mounting and repair accessories (NFPA)
UNSPSC Number:
27131700
Other Details
90° ANGLE BRACKET (NFPA-MS1)
Bore Size: 3-1/4
Dimensions AB: 9/16 (in) (holes (6)
Dimensions AH: 1-15/16 (in)
Dimensions AL: 1-3/4 (in)
Dimensions AO: 1/2 in)
Dimensions AT: 3/16 (in)
Dimensions S: 2-3/4 (in)
Dimensions SA: 7-3/8 (in) + stoke
Dimensions XA: 6-7/8 (in) + stroke
Screws included
