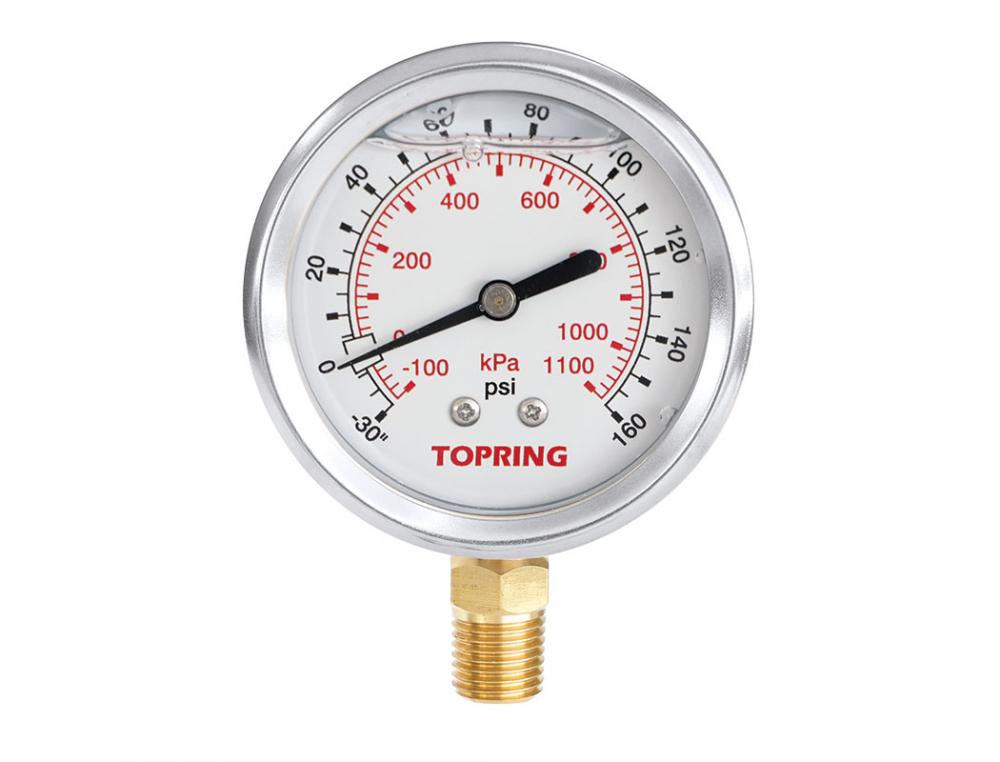

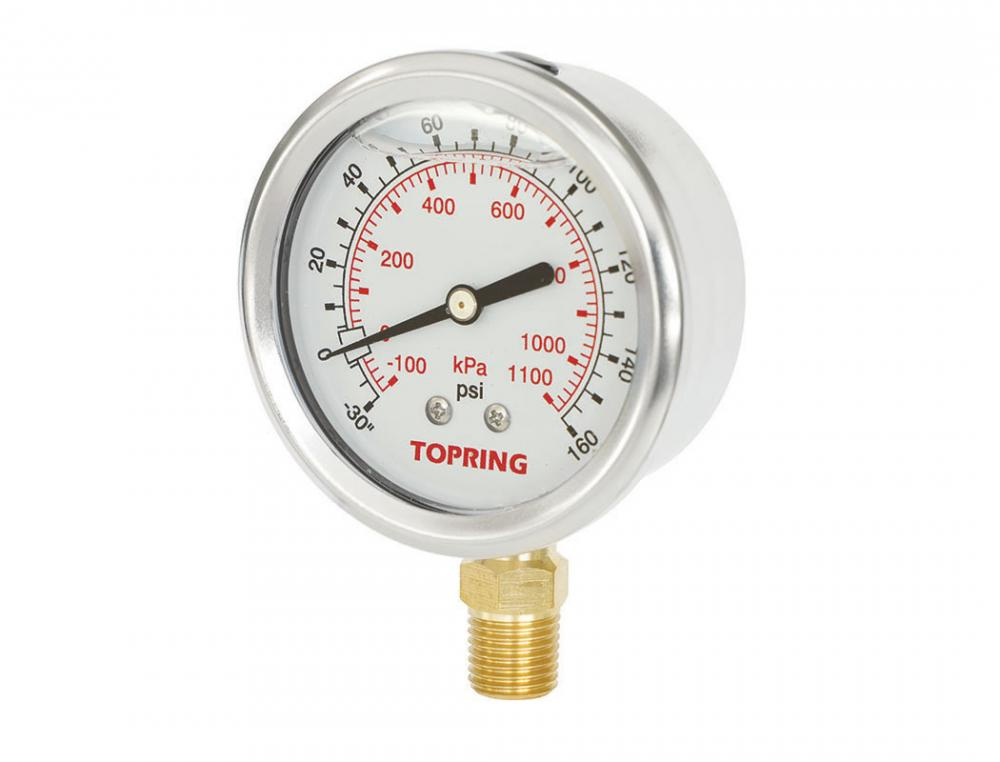

2-1/2 In. Stainless Steel Liquid Filled Pressure Gauge With Glycerin 30 Hg + 160 PSI
Call For Price
- Part Number: 55.604
- UPC: 00774679098292
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Test Instruments
Industrial Subcategory:
Pressure and Vacuum Measuring
Industrial Subtype:
Digital Pressure and Vacuum Gauges
Pressure and Vacuum Gauges
Body, Housing or Frame Material:
Stainless Steel 304
Color:
Silver
Compatible Fluids:
Air
Country of Origin:
CN
Display Type:
Analog
Inlet Connection Gender:
Male
Inlet Connection Subtype:
NPT
Inlet Connection Type:
Threaded
Inlet Nominal Size (Imperial):
1/4 in
Installation Type:
Lower Mount (LM)
Item Height (inches):
1.38
Item Length (inches):
3.74
Item Quantity:
1
Item Weight (lbs):
0.44
Item Width (inches):
2.95
Maximum Ambient Operating Temperature (°C):
60
Maximum Display Pressure (PSI):
160
Maximum Fluid Temperature (°C:
60
Mechanism or Internal Moving Parts Material:
Phosphor Bronze; Brass
Nominal Diameter (in):
2-1/2
Order Minimum:
1
Order Multiple:
1
Order Unit Of Measure:
EA
Package Height (inches):
1.38
Package Length (inches):
2.95
Package Weight (lbs):
0.44
Package Width (inches):
2.95
Product Series:
55
Product Type:
Pressure Gauges
Reading Accuracy (% Of Full Scale):
+-1.6
With CRN:
No
Other Details
304 stainless steel housing
Acrylic lens
Also for 0 to 160 PSI
Base Mount (LM)
Brass fitting
Graduation: PSI in black and kPa in red
Inlet connection: 1/4 (M) NPT
Movement: Polished brass surface
Operating temperature: -18 to 60°
Phosphor bronze drone tube
Reading accuracy: Âą1.6% full scal
