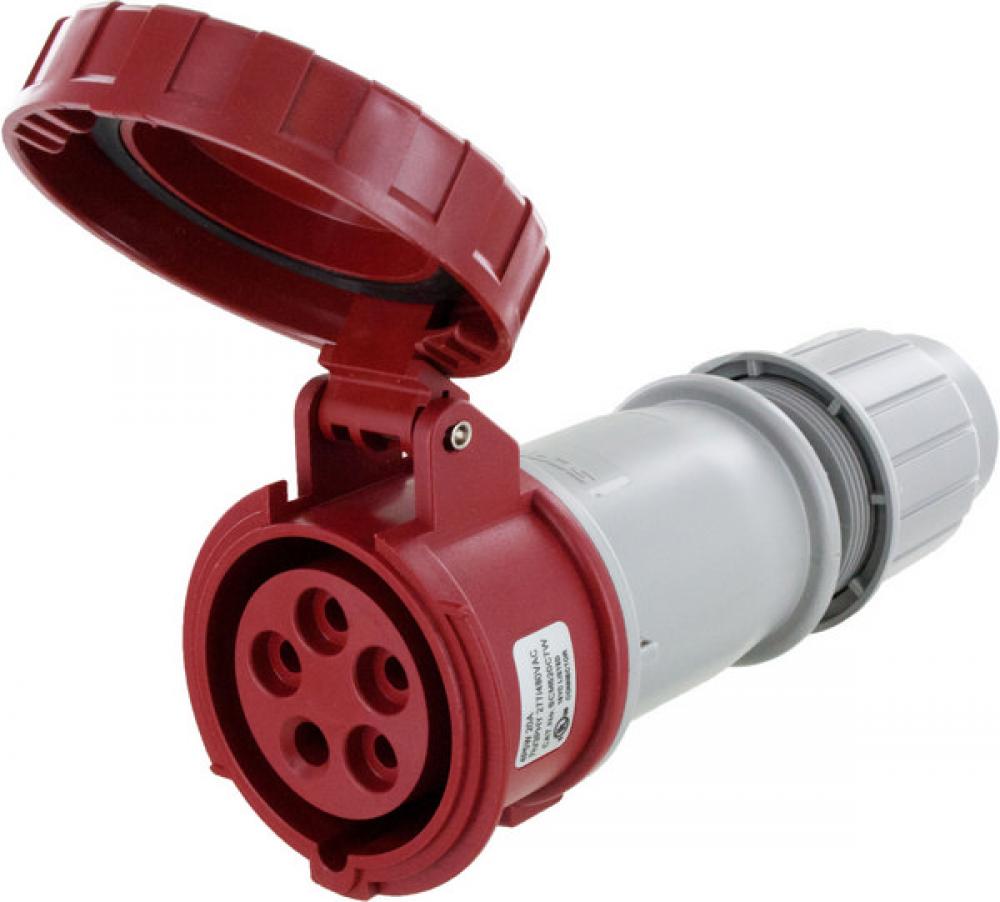

IP67 CONNECTOR 20A 3phase delta 277/480 4P 5W WATERTIGHT
Call For Price
- Part Number: SCM520C7W
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Plugs and Receptacles
Industrial Subtype:
Pin and Sleeve Connectors
Pin Sleeve Cable Bushing:
Solid neoprene, onion ring type
Pin Sleeve Cable Gland Nut:
VALOX®
Pin Sleeve Cable Od:
Round portable service cord from 0.57" O.D. through 1.79 O.D.
Pin Sleeve Clock Position:
7h
Pin Sleeve Cold Impact Resistance:
Per UL 1682 Section 34 and IEC 60309-1 Clause 24
Pin Sleeve Colour Coding:
Red
Pin Sleeve Contact Carriers:
VALOX®
Pin Sleeve Cord Grip Range Max Awg:
0.71
Pin Sleeve Cord Grip Range Max Mm2:
18
Pin Sleeve Cord Grip Range Min Awg:
0.57
Pin Sleeve Cord Grip Range Min Mm2:
14
Pin Sleeve Corrosion Resistance:
All metallic components stainless steel or nickel plated brass. Sleeve pressure rings of zinc plated steel
Pin Sleeve Current Interrupting:
Tested to 150% of full rated current for circuit interrupting
Pin Sleeve Dielectric Voltage Withstand:
3000 Volts for 1 minute (fixed devices), 2200 Volts for 1 minute (portable devices)
Pin Sleeve Endurance With Load:
20 Amp: 500 cycles: Load only
Pin Sleeve Flap:
Stainless Steel
Pin Sleeve Force Ring:
Zinc plated steel
Pin Sleeve Frequency:
D.C. - 50÷500Hz
Pin Sleeve Housing:
VALOX®
Pin Sleeve Ik Degree:
IK10 (20J)
Pin Sleeve Insulating Voltage:
500/690V~
Pin Sleeve Material:
VALOX®
Pin Sleeve Max Working Voltage:
600 VAC/250 VDC(minimum creepage and clearances per UL 840)
Pin Sleeve Mounting Flanges:
VALOX®
Pin Sleeve O Ring:
Solid neoprene
Pin Sleeve Operating Ambient Temp:
-25°C + 40°C
Pin Sleeve Per Iec:
30 Amp: 1000 cycles, 60 Amp: 1000 cycles: 100 Amp: 250 cycles (Alternating load)
Pin Sleeve Pin Sleeve:
Nickel plated brass
Pin Sleeve Poles Wires:
4P 5W
Pin Sleeve Protection Degree:
IP67
Pin Sleeve Pull Out Force:
Per UL 1682 Section 33 and IEC 60309-1 Clause 23
Pin Sleeve Rated Current:
20A
Pin Sleeve Rated Voltage:
380 - 480 V~
Pin Sleeve Rated Voltage1:
3øy277/480
Pin Sleeve Self Extinguishing Ul94:
V1 (3mm)
Pin Sleeve Self Extinquishing:
GW test 650°C /850°C
Pin Sleeve Series:
II
Pin Sleeve Snap On Spring:
Stainless Steel
Pin Sleeve Terminal Identification:
In accordance with UL 1682 standards and IEC 60390-1 as 3P+N+E - L1-L2-L3-N-G
Pin Sleeve Terminal Screws:
Nickel plated steel
Pin Sleeve Type:
IP67
Pin Sleeve Wiring And Installation Max Awg:
12
Pin Sleeve Wiring And Installation Max Mm2:
2.5
Pin Sleeve Wiring And Installation Min Awg:
16
Pin Sleeve Wiring And Installation Min Mm2:
1
Pin Sleeve Wiring And Installation Rated Current:
20A
Unit Priced:
EA
