Product Overview
Info & Guides

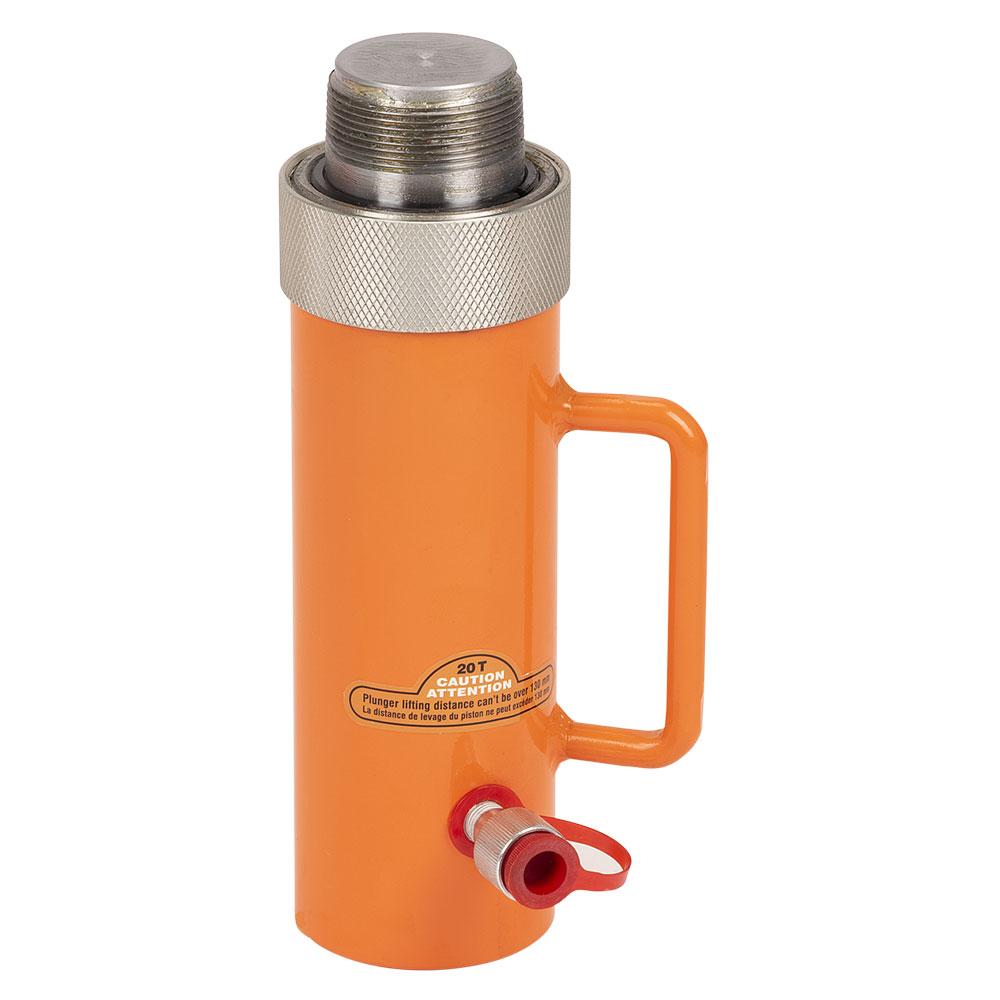

Strongarm® offers a wide assortment of hydraulic rams to suit your high-force applications. Styles include mini, snap, screw, and long configurations.
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
Hydraulic Rams
Brand:
Strongarm
Closed Height (in.):
11.1
Country of Origin:
CN
Diameter - Piston (in.):
2.36
Diameter - Saddle (in.):
2.13
Each Qty.:
1
Effective Area (in²):
5.14
Extension Tubes Length (mm/in.):
28.34mm / 1.1"|50mm / 2"|100.39mm / 4.0"|200mm / 7.9"|275.59mm / 10.9"
Extention Tubes Length (in.):
28.34|50|100.39|200|275.59
Harmonized Tariff Code:
8413.20.00.00
HTS (Harmonized Tariff Schedule) Code:
4016.99.90.90
Item Height (inches):
5.45
Item Length (inches):
12.60
Item Quantity:
1
Item Weight (lbs):
20.7550
Item Width (inches):
6.35
Model Number:
BRK20RAM
Oil Capacity (ml):
425
Order Unit Of Measure:
EA
Ordering Quantity:
1
Outside Unit Diameter (in.):
3.23
Package Quantity:
1
Package UPC:
10059629998943
Quantity:
1
Ram Capacity (T):
20
Ram Extended Height (in.):
16
Stroke (in.):
5.04
UOM:
EA
UPC:
059629998946
UPC Code:
059629999226
UPC Number:
059629999226
Other Details
Available in a variety of styles that can be used with Strongarm® and other body and frame repair kits
For use in high-force applications including lifting, pulling, pushing, bending, and alignment
Ideal for industrial and construction markets, vehicle service facilities, agriculture, and more
Integrated built-in oil-bypass and overload valve protects the hydraulic system from accidental overload
Made with professional-grade material and designed to provide years of trouble-free service for a wide range of applications
