Air End Lift Jacks
Call For Price
- Part Number: 030457
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

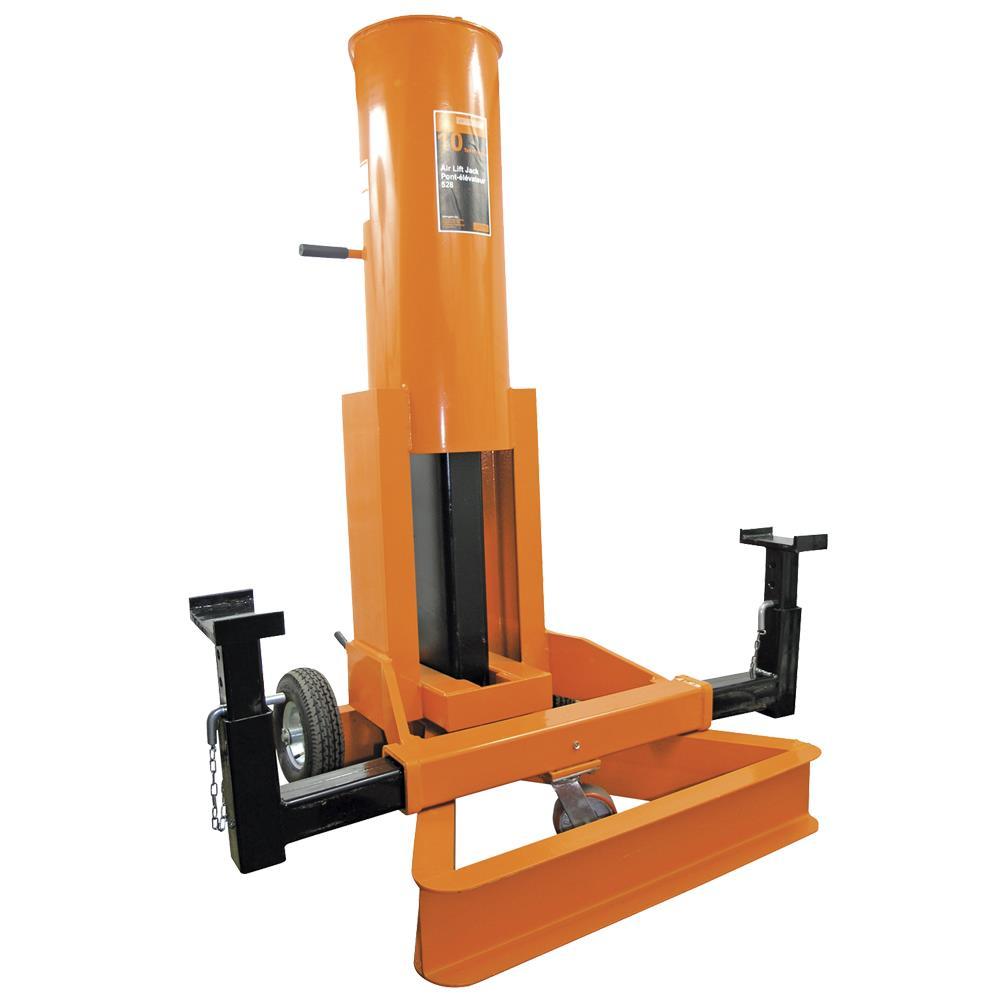

Strongarm® Air End Lift Jacks are designed for quick and efficient lifting of large trucks, tractor trailers, and heavy construction equipment. All units are 100% air operated and includes integrated locking mechanisms to hold the load.
Specifications
Details
Industrial Category:
Fleet and Vehicle Maintenance
Industrial Subcategory:
Automotive Lifting Tools
Industrial Subtype:
Air, Mechanic, and Hydraulic Floor Jacks
Brand:
Strongarm
Capacity (lb.):
20000
Capacity (T):
10 T
Certification:
ASME PASE 2014 Safety Standard
Chassis Length (in.):
35.5
Chassis Width - Front (in.):
47.3
Country of Origin:
CN
Duty Level:
Heavy Duty
Each Qty.:
1
Handle Length (in.):
18.9
Harmonized Tariff Code:
8425.49.00.00
High Height (in.):
49.6
HTS (Harmonized Tariff Schedule) Code:
6307.20.00.00
Inner Pack Qty.:
0
Inner Pack Weight (lb):
0.0000
Item Height (inches):
72.00
Item Length (inches):
42.00
Item Quantity:
1
Item Weight (lbs):
722.0000
Item Width (inches):
37.20
Low Height (in.):
12.4
Model Number:
528
Operation:
Air/Hydraulic
Order Unit Of Measure:
EA
Ordering Quantity:
1
Package Quantity:
1
Quantity:
1
Ram Lift (in.) - Stage 1:
37.2
Reach (in.):
50.6
Saddle Spread (in.):
36 - 50"
Type:
Air Lift Jacks
UOM:
EA
UPC:
059629999387
UPC Code:
059629995518
UPC Number:
059629995518
Weight (lb.):
682
Working Air Pressure:
200 PSI
Other Details
Automatic mechanical lock engages at five lift heights from 17.5" to 50"
Constructed with an extra wide stance to lift the entire front or rear of large trucks, buses, and other heavy-duty equipment.
Front swivel caster and two pneumatic rear tires provide easy maneuverability
Made with a three-way air valve for high precision lifting and lowering control
Saddle arms are reversible for low height loads
