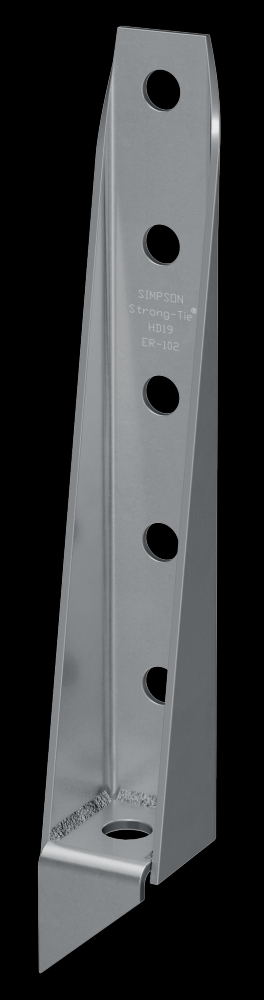

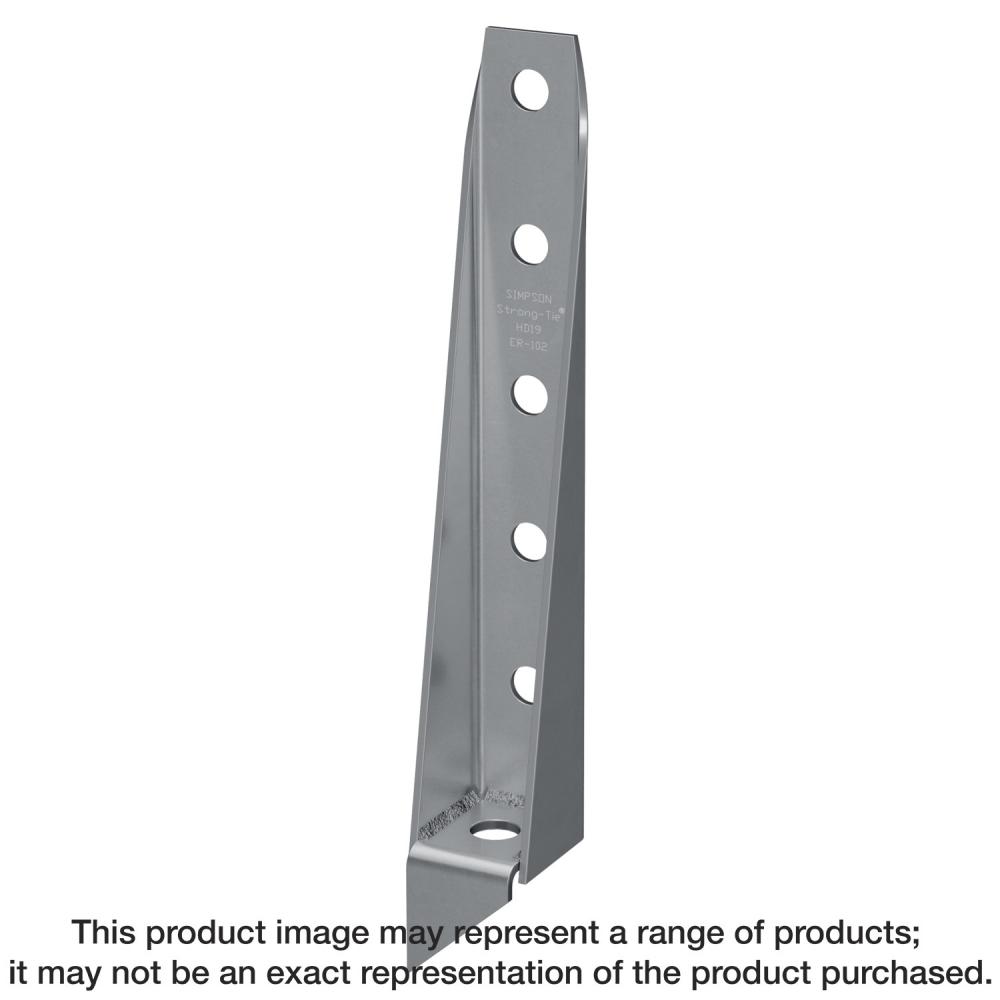

HD 24-1/2 in. Bolted Holdown
Call For Price
- Part Number: HD19
- UPC: 00707392198307
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The HD is designed to create high allowable loads for both vertical and horizontal applications in wood construction. This holdown is installed with bolts into posts or columns. The HD can be installed back to back when eccentricity is an issue.
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Building Materials
Industrial Subtype:
Braces and Reinforcement Hardware
Holdowns
Assembled Depth - Imperial:
4.15625 in.
Assembled Height - Imperial:
24.5 in.
Assembled Width - Imperial:
3.4375 in.
Brand Name:
Simpson Strong-Tie®
Coating:
E-coat® Electrocoating
Color:
None
Country of Origin:
US
Display Unit/Measure:
EA
Drive Type:
5/16 in. Hex
GTIN:
00707392198307
Head Diameter in:
0.73
Head Type:
Hex Washer Head
ICCES Reports:
ESR-3046
Item Length (inches):
4.15625
Item Quantity:
25
Limited Warranty:
Limited warranty, available at www.strongtie.com/limited-warranties.
MFG Name:
Simpson Strong-Tie®
Packaging Quantity:
1
Point Type:
Type-17 Point
Product Class:
Holdown
Product Weight:
10.75
Prop 65 Cancer:
View
Quantity:
1
Shank Diameter in:
0.27
Shipping Weight:
10.75
Thread Length:
5
Thread Type:
Variable Thread Design
Unit Of Measure:
EA
UPC Code:
707392198307
UPC Number:
707392885405
Other Details
Kit includes all required installation hardware: (25) Strong-Drive SDWF Floor-to-Floor screws, (25) TUW take-up washers, (100) Strong-Drive SD Connector screws (#9), 5/16 in. hex driver bit, screw depth guide
