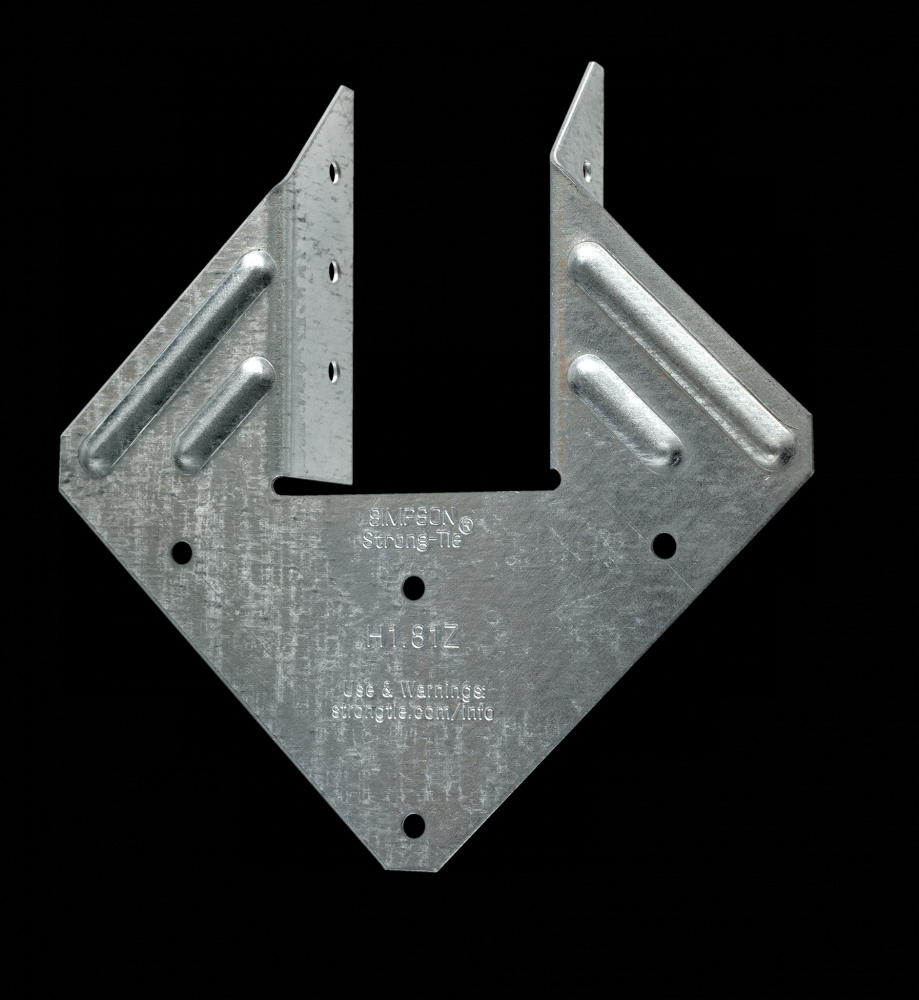

H1.81 18-Gauge ZMAX® Galvanized Hurricane Tie
Call For Price
- Part Number: H1.81Z
- UPC: 00707392000433
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The Simpson Strong-Tie® H1.81Z hurricane tie is designed for use with 1-3/4 in. LVL roof rafters to provide a stronger connection to the top plate of the wall. It’s ideal for connections when there are higher-load demands on the structure, like a heavy snow load, and provides lateral resistance in a seismic event. The 1-3/4 in. wide H1.81Z connector is the first hurricane tie to be specifically sized for engineered wood. The H1.81Z installs with half the nails that are needed for two single-sided twist straps and offers a higher lateral allowable load, making it a cost-effective and higher-performing solution to tie down an LVL roof.
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Building Materials
Industrial Subtype:
Brackets
Ties
Assembled Depth - Imperial:
13/16 in.
Assembled Height - Imperial:
5 5/16 in.
Assembled Width - Imperial:
5 5/16 in.
Brand Name:
Simpson Strong-Tie®
Coating:
Mechanically Galvanized
Color:
None
Country of Origin:
US
Display Unit/Measure:
EA
ExtraPackaging Type:
Individual Item
GTIN:
00707392000433
Item Length (inches):
0.8125
Item Quantity:
1
Limited Warranty:
Limited warranty, available at www.strongtie.com/limited-warranties.
Material:
Carbon Steel
MFG Name:
Simpson Strong-Tie®
Packaging Quantity:
1
Product Class:
Tie
Product Weight:
0.23
Quantity:
1
Threaded Rod Length in:
1/2 to 9/16
Unit Of Measure:
EA
UPC Code:
707392000433
UPC Number:
707392631927
Other Details
Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
Hex-washer head requires no separate washer and provides a clean installed appearance
Mechanical galvanizing meets ASTM B695, Class 65, Type 1, intended for some pressure-treated wood sill plate applications; not for use in other corrosive or outdoor environments
No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
Qualified for static and seismic loading conditions
Size: 3/8 in. x 4 in.
Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
Thread design undercuts to efficiently transfer the load to the base material
