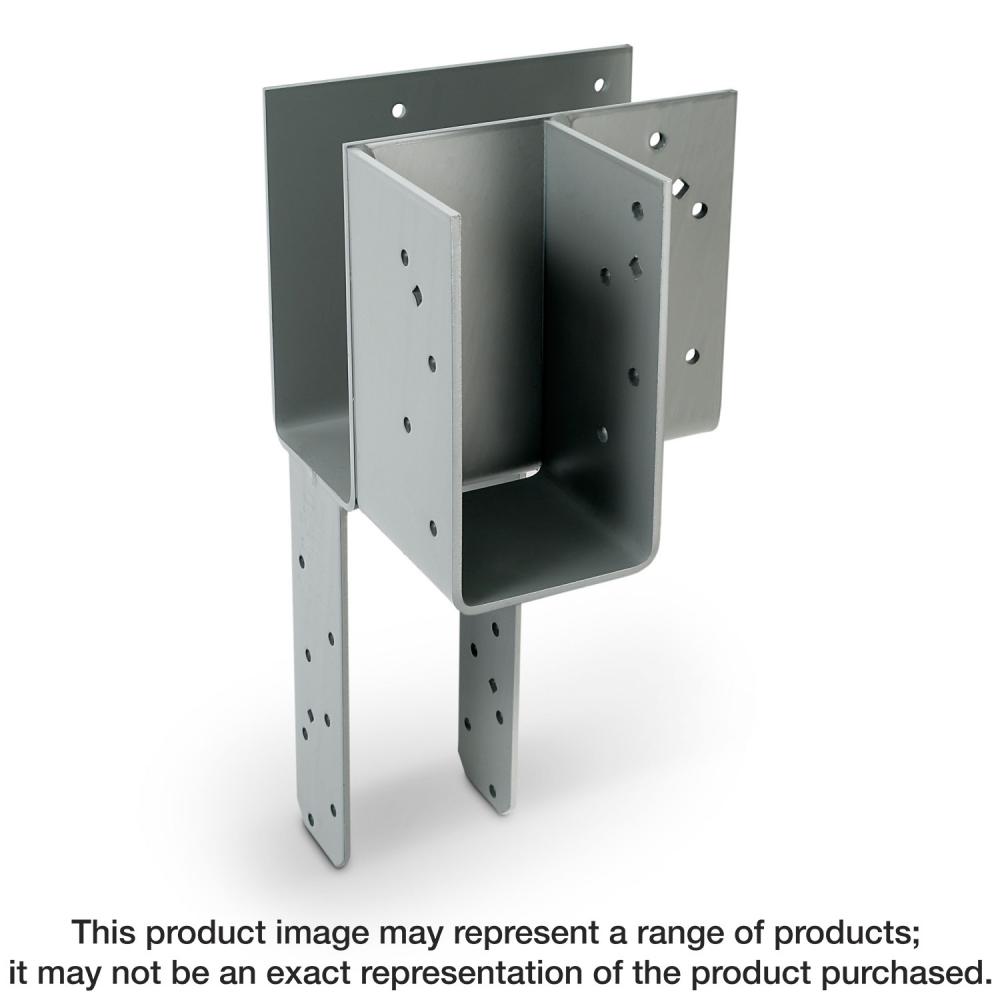

ECCLRQ HDG L-Shape End Column Cap for 4x Beams, 4x Post w/ SDS Screws, Skewed Right
Call For Price
- Part Number: ECCLRQ444HDG
- UPC: 00707392008439
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The Simpson Strong-Tie® ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Building Materials
Industrial Subtype:
Brackets
Column Caps
Brand Name:
Simpson Strong-Tie®
Color:
None
Component Material Anchor Body:
Type 304 Stainless Steel
Component Material Clip:
Type 304 or Type 316 Stainless Steel
Component Material Nut:
Type 304 stainless steel
Component Material Washer:
Type 304 stainless steel
Country of Origin:
US
Display Unit/Measure:
EA
ExtraPackaging Type:
Individual Item
GTIN:
00707392008439
Item Quantity:
1
Limited Warranty:
Limited warranty, available at www.strongtie.com/limited-warranties.
Material:
Type 304 Stainless Steel
MFG Name:
Simpson Strong-Tie®
Packaging Quantity:
1
Product Class:
Column Cap
Product Weight:
14.5
Quantity:
1
Thread Length:
2.4375
Unit Of Measure:
EA
UPC Code:
707392008439
UPC Number:
10707392503405
Other Details
Code listed under IBC/IRC for cracked and uncracked concrete per ICC-ES ESR-3037
Code listed under IBC/IRC for masonry per IAPMO UES ER-240
Dual embossments on each clip segment: enables clip to undercut into the concrete thereby increasing follow-up expansion should a crack occur
Made from Type 304 stainless steel
Qualified for static and seismic loading conditions (seismic design categories A through F)
Size: 1/4 in. x 3-1/4 in.
Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
Suitable for horizontal, vertical and overhead applications
Tri-segmented clip: each segment adjusts independently, increasing follow-up expansion should the hole increase in size as a result of a crack
