DGF Top-Flange Fire Wall Hanger for 3-1/2 in. x 18 in. Engineered Wood
Call For Price
- Part Number: DGF3.62/18
- UPC: 00707392005766
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

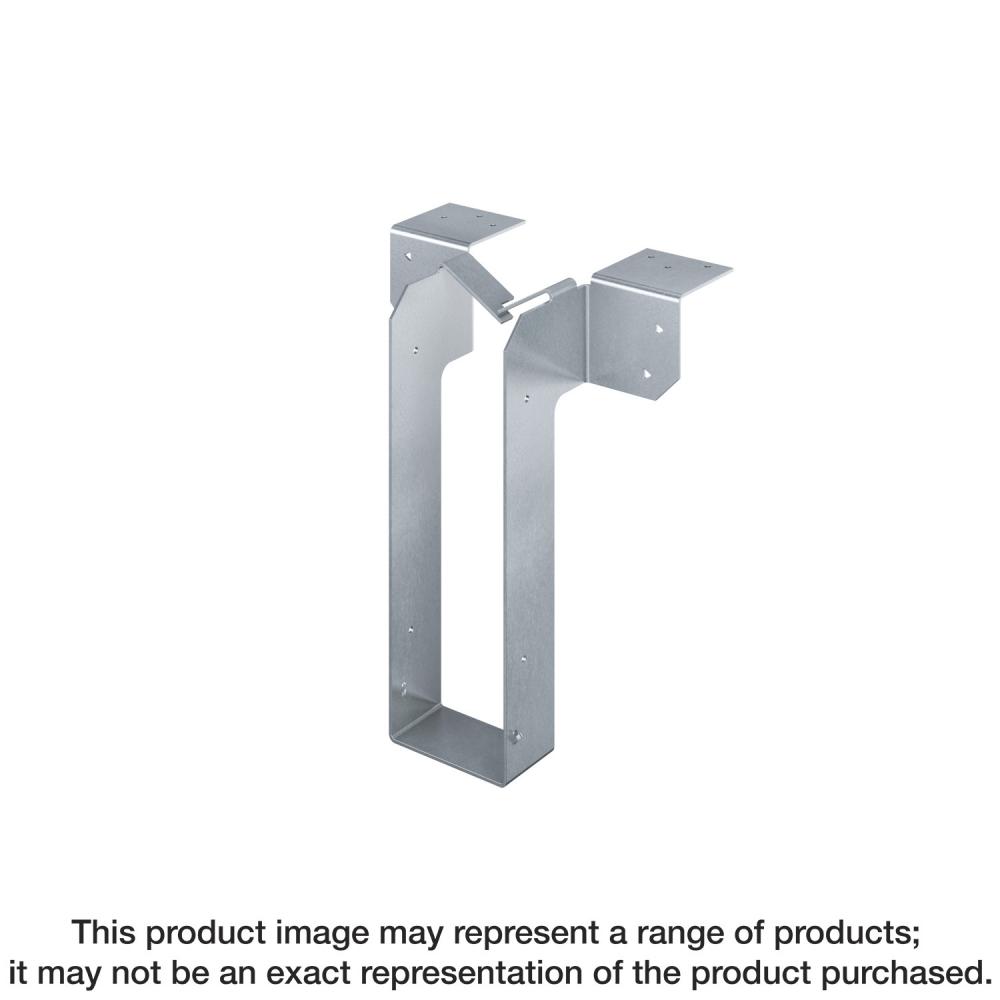

The DGF is a top-flange hanger that connects floor trusses and joists to wood stud walls. The hanger features a v-shaped joist stop at the top whose unique design prevents the joist from seating too far back in the stirrup, creating space for two layers of 5/8" gypsum board (drywall) to be installed between the joist and the wall after framing. This economical hanger provides joist support for the majority of Type III construction projects.
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Building Materials
Industrial Subtype:
Braces and Reinforcement Hardware
Hangers
Assembled Depth - Imperial:
6.25525 in.
Assembled Height - Imperial:
18.1355 in.
Assembled Width - Imperial:
9.573 in.
Brand Name:
Simpson Strong-Tie®
Carton Qty:
10
Coating:
Mechanically Galvanized, Class 55
Color:
None
Country of Origin:
US
Display Unit/Measure:
EA
Drive Type:
1/4 in. Hex
Head Type:
Hex Head
ICCES Reports:
ESR-3046
Item Length (inches):
6.25525
Item Quantity:
100
Item Weight (lbs):
0.9
Limited Warranty:
Limited warranty, available at www.strongtie.com/limited-warranties.
MFG Name:
Simpson Strong-Tie®
Packaging Quantity:
1
Point Type:
Sharp Point
Product Class:
Hanger
Product Weight:
5.9
Prop 65 Cancer:
View
Prop 65 Warning:
View
Quantity:
1
Screw Size:
#9
Shipping Weight:
5.9
Thread Type:
Serrated Threads
UPC Code:
707392005766
UPC Number:
707392977001
