CCTQM™ 5-1/2 in. T-Shape Column Cap for Masonry w/ SDS Screws
Call For Price
- Part Number: CCTQM5.50-SDSG
- UPC: 00707392496304
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

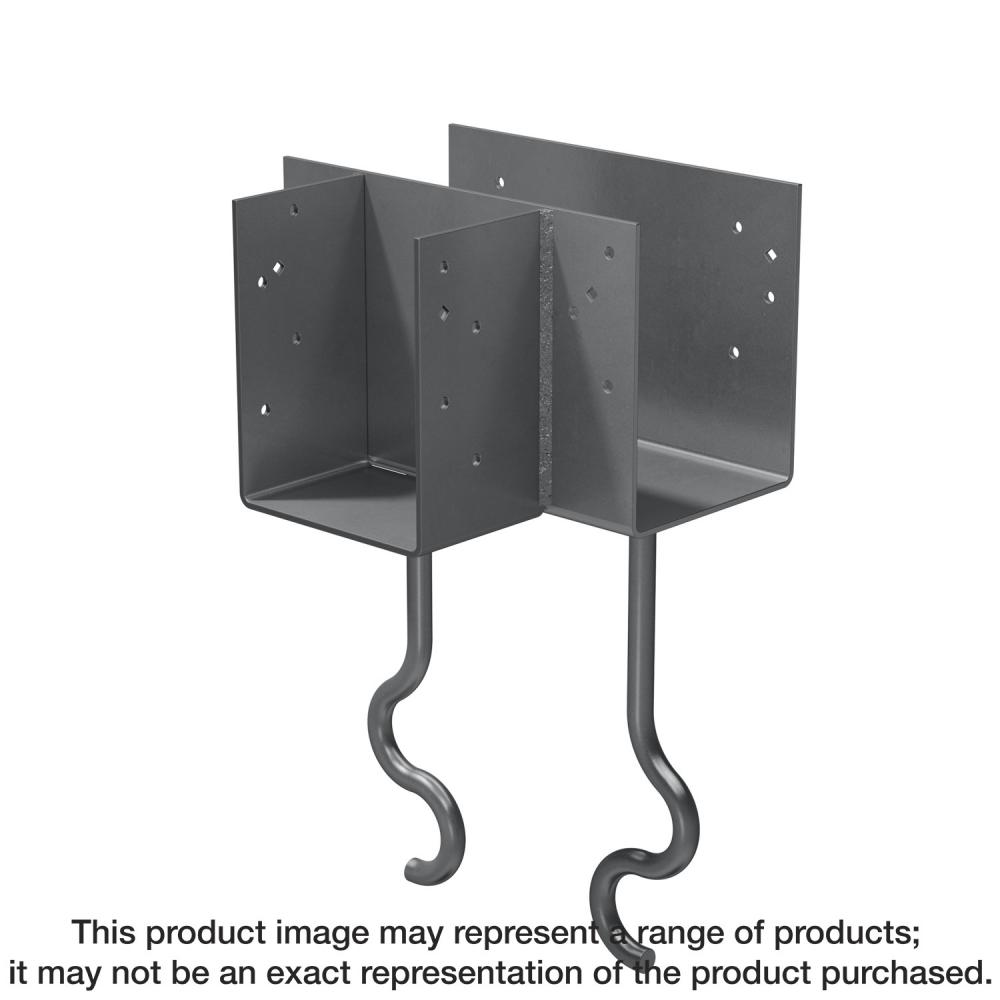

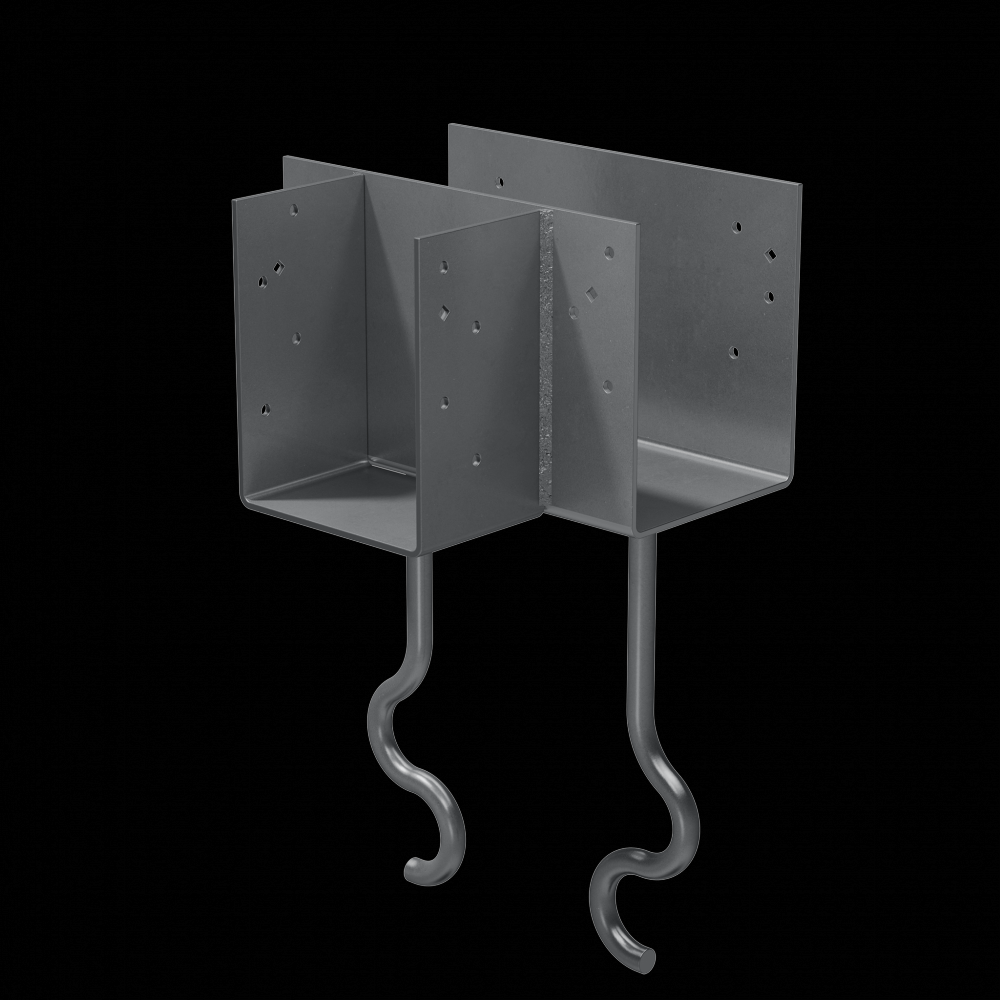

The CCTQM embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCTQM is for use along a floor support beam and non-corner locations with a side stirrup to accommodate intermediate support beams at 90° angles.
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Building Materials
Industrial Subtype:
Brackets
Column Caps
Assembled Depth - Imperial:
13.5 in.
Assembled Height - Imperial:
19.1745 in.
Assembled Width - Imperial:
5.849 in.
Brand Name:
Simpson Strong-Tie®
Carton Qty:
6
Color:
None
Country of Origin:
US
Display Unit/Measure:
EA
Drive Type:
T-27 6-Lobe
GTIN:
00707392496304
Head Diameter in:
0.44
Head Type:
Flat Head
Item Length (inches):
13.5
Item Quantity:
5 lb.
Limited Warranty:
Limited warranty, available at www.strongtie.com/limited-warranties.
Material:
Type 316 Stainless Steel
MFG Name:
Simpson Strong-Tie®
Packaging Quantity:
1
Point Type:
Sharp Point
Product Class:
Column Cap
Product Weight:
19.2
Prop 65 - Cancer:
View
Prop 65 - Long Text:
View
Prop 65 - Reproductive Toxicity:
View
Prop 65 - Short Text:
View
Prop 65 Warning:
View
Quantity:
1
Screw Size:
#12
Shipping Weight:
19.2
Thread Type:
Box Threads
Unit Of Measure:
EA
UPC Code:
707392496304
UPC Number:
744039615919
Other Details
T-27 6-lobe bit included (BIT27T-2)
