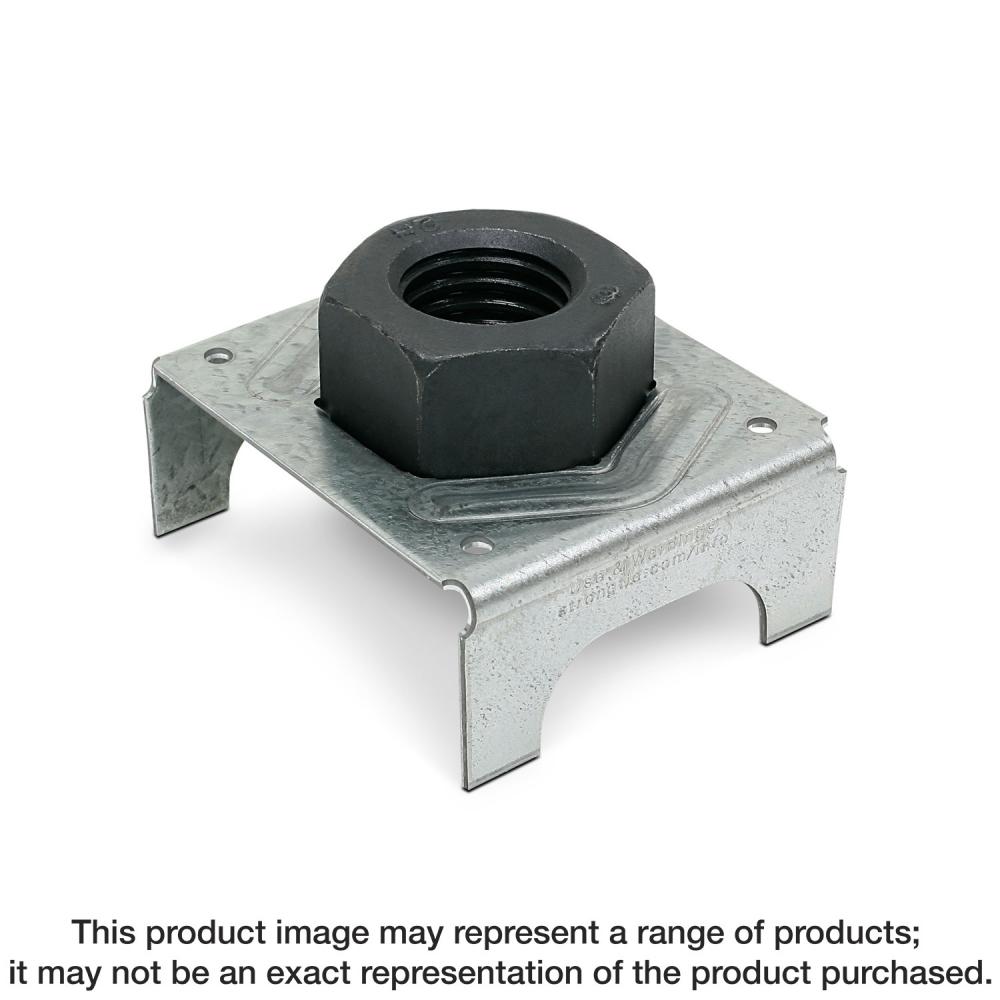

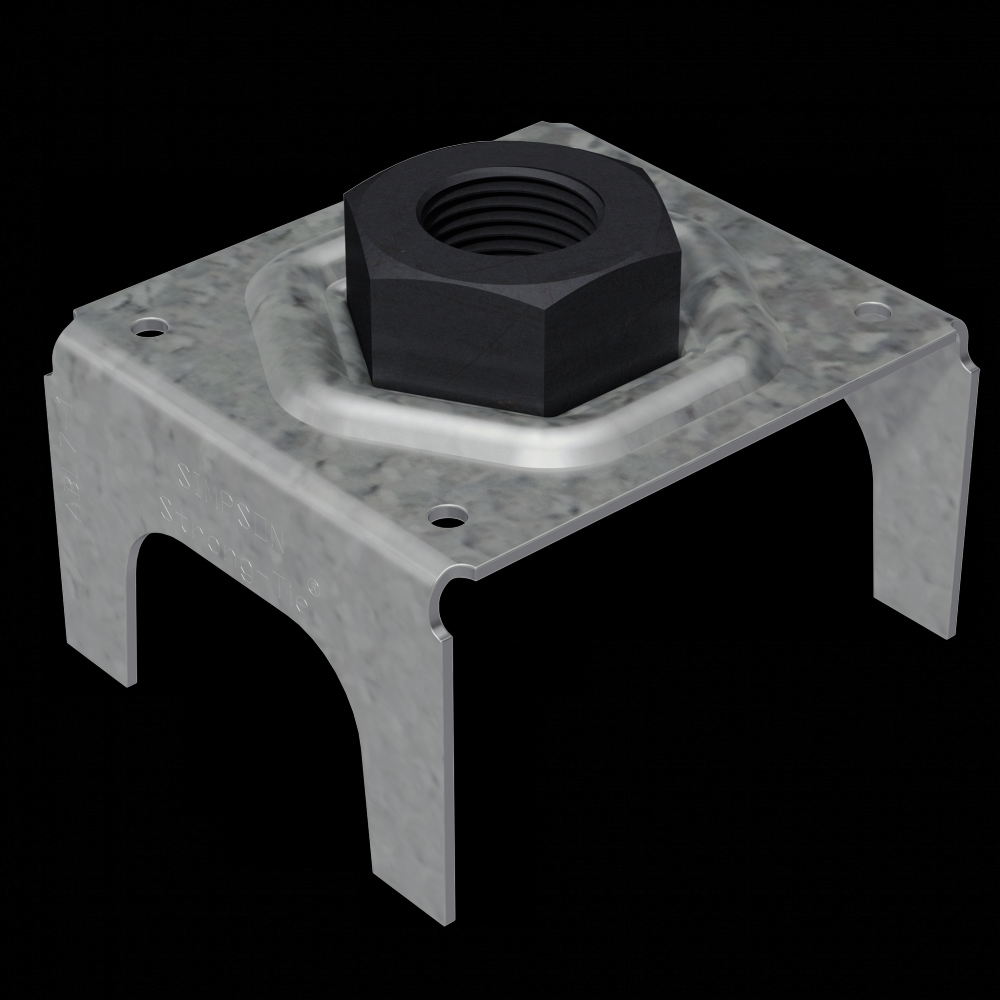

ABL Anchor Bolt Locator with 7/8 in. Nut
Call For Price
- Part Number: ABL7-1
- UPC: 00707392317807
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The ABL enables the accurate and secure placement of anchor bolts on concrete-deck forms prior to concrete placement. The structural heavy-hex nut is attached to a pre-formed steel "chair," which eliminates the need for an additional nut on the bottom of the anchor bolt. Electro-galvanized versions available for HDG anchor bolts.
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Anchors
Industrial Subtype:
Anchor Bolt
Assembled Depth - Imperial:
1.9375 in.
Assembled Height - Imperial:
3.34375 in.
Assembled Width - Imperial:
2.875 in.
Brand Name:
Simpson Strong-Tie®
Coating:
None
Color:
None
Country of Origin:
US
Display Unit/Measure:
EA
ExtraPackaging Type:
Individual Item
Gauge:
3
GTIN:
00707392317807
Install With:
(4) 3/4-in. diameter machine bolts
Item Length (inches):
1.9375
Item Quantity:
1
Limited Warranty:
Limited warranty, available at www.strongtie.com/limited-warranties.
Member Size:
5.125
MFG Name:
Simpson Strong-Tie®
Packaging Quantity:
1
Product Class:
Locator Stand
Product Weight:
0.54
Prop 65 Warning:
View
Quantity:
1
Shipping Weight:
0.54
Unit Of Measure:
EA
UPC Code:
707392317807
UPC Number:
44315173004
Other Details
Beam width: 5-1/8 in.
Bolt spacing that meets NDS code requirements to ensure optimal performance
Cap height of 8 in.
Diamond holes to provide temporary fastening
Made from 3-gauge uncoated steel
Uplift loads increased for earthquake or wind loading
