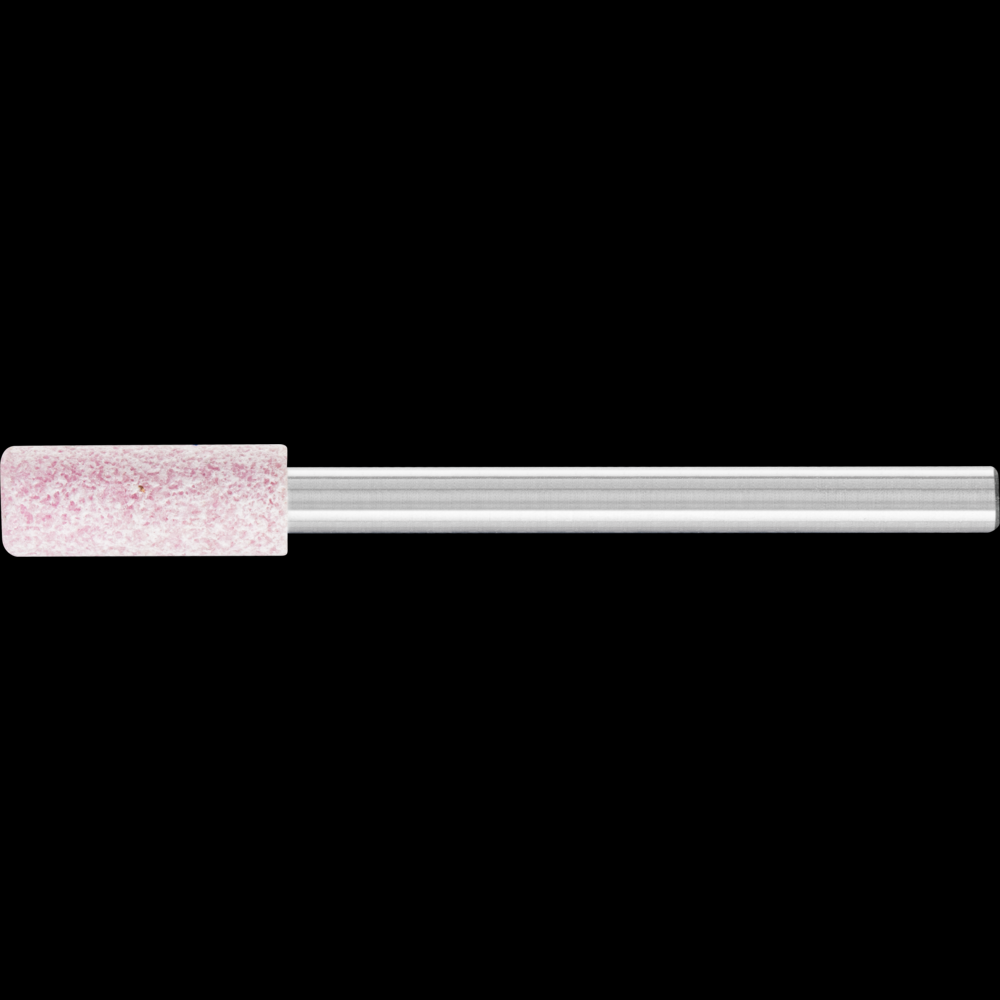

PFERD Vitrified Mounted Point, TOUGH, 3/16" x 1/2,60 Grit,W154,Ceramic Oxide,1/8"Shank
Call For Price
- Part Number: 39102075
- UPC: 04007220136218
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

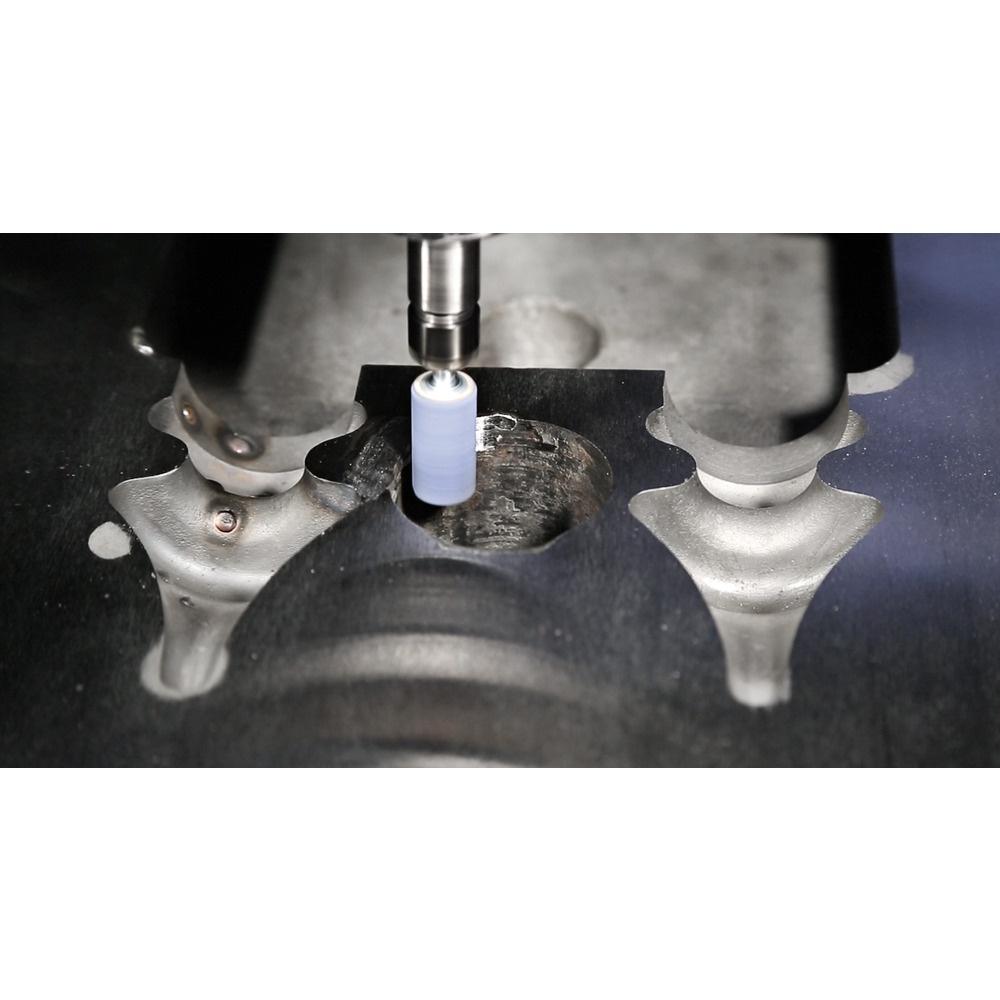

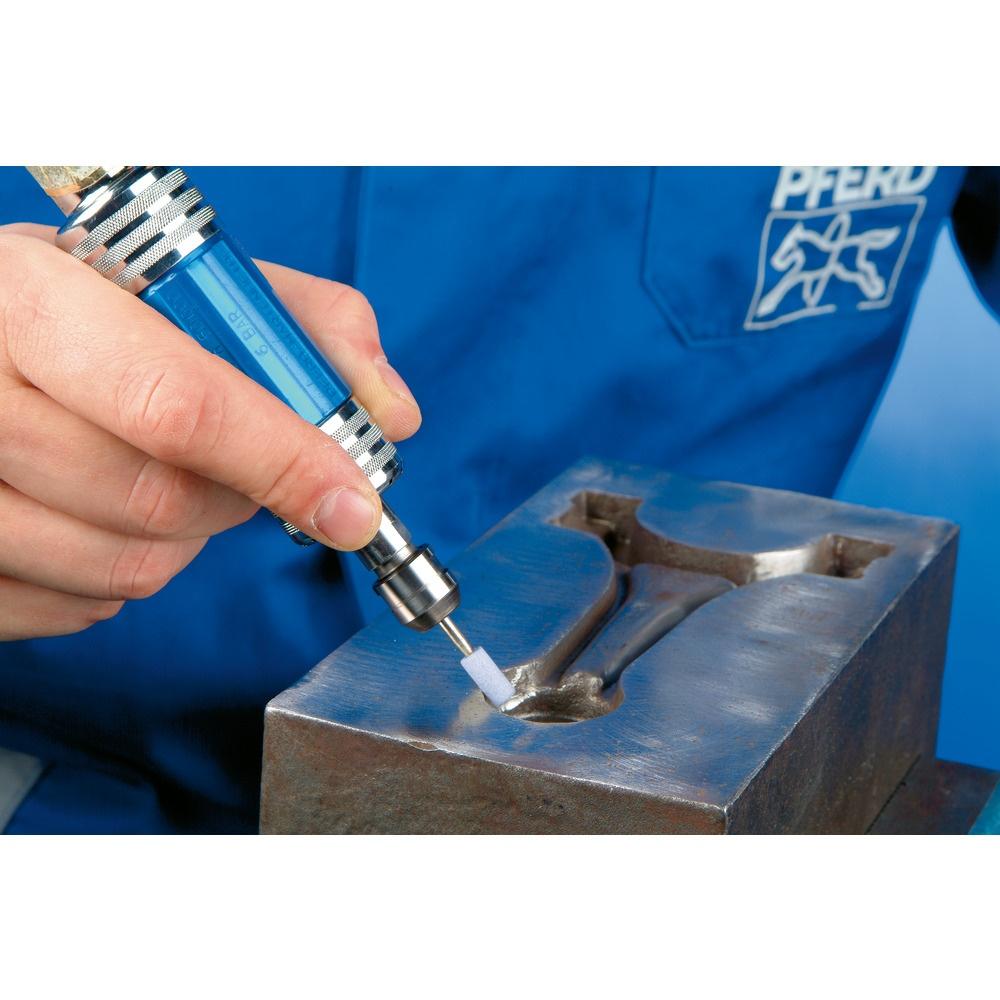

The TOUGH type is specifically designed for use on titanium materials, nickel-based and cobalt-based alloys, hardened steel components and built-up weld deposits. Its applications include weld dressing on repair welds and reworking on turbine blades during aircraft maintenance and regrinding of repair welds in tool and die-making. The cylindrical shape is ideal for grinding bores, radii and contours.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Diameter External (In):
0.20
Diameter Shank:
1/8 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220136218
EDP:
30127
Grit Size:
60
Item Quantity:
10
Item Weight (kgs):
0.004
MANUFACTURER_TYPE_DESCR:
W 154 3,1 AW CO 60 J5V TOUGH
Materials that can be worked:
Cobalt-based alloys
Materials that can be worked 1:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 2:
High-temperature-resistant materials
Materials that can be worked 3:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 4:
Titanium
Materials that can be worked 5:
Titanium alloys
Max. 1-2 Inch Overhang (RPM):
70500
Optimum 1-2 Inch Overhang (RPM):
70500
Order Quanityt:
550
Prop 65:
View
Recommendations for use:
TOUGH mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
45600
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Shank Length:
1.25
Shape:
W 154
UNSPNC:
23131500
UPC Code:
97758301275
Other Details
Cool grinding due to the easily broken-down grain mixture.
High stock removal rate results in increased productivity.
The self-sharpening properties of the ceramic oxide grain provide consistent stock removal rates throughout the life of the product.
