![PFERD Vitrified Mounted Point, STEEL EDGE, 1/8" x 3/8, 100 Grit, B97, AO, 1/8" Shank](/vendors/6924/large/39102036-rgb.png "PFERD Vitrified Mounted Point, STEEL EDGE, 1/8" x 3/8, 100 Grit, B97, AO, 1/8" Shank")

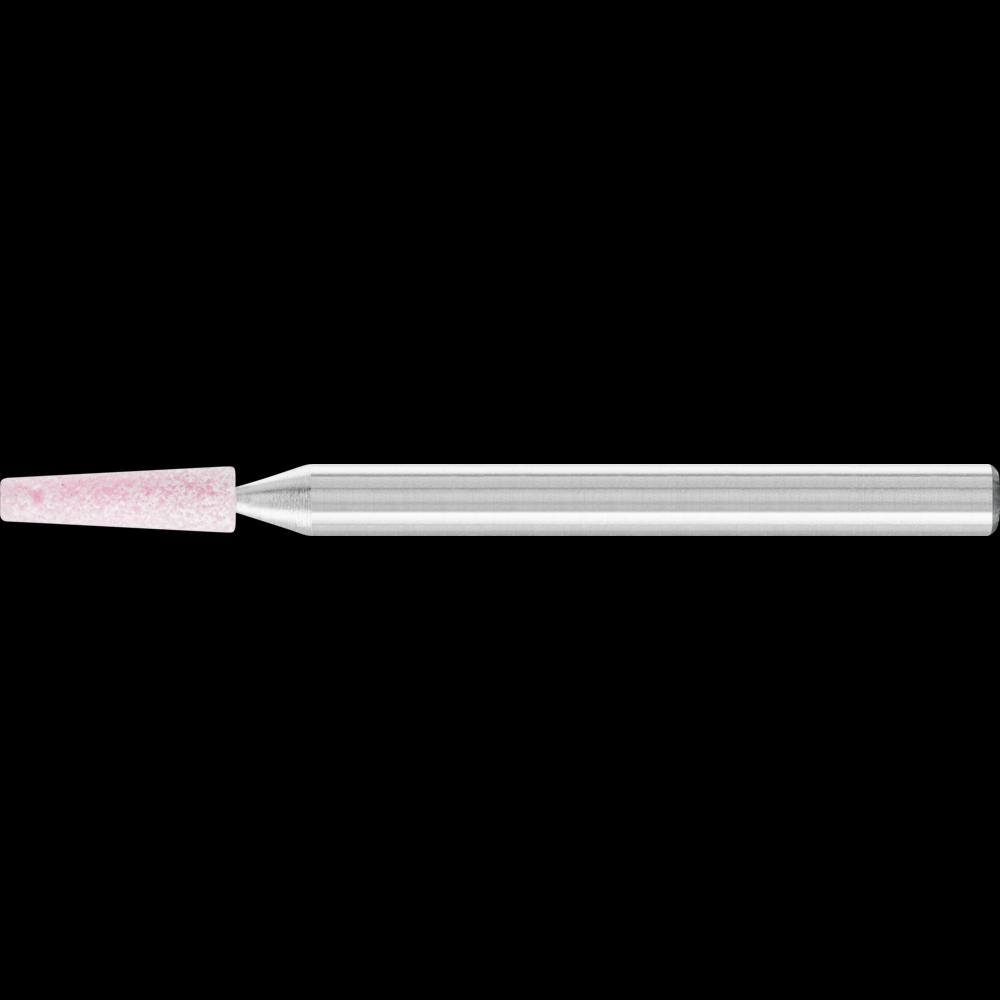

PFERD Vitrified Mounted Point, STEEL EDGE, 1/8" x 3/8, 100 Grit, B97, AO, 1/8" Shank
Call For Price
- Part Number: 39102036
- UPC: 04007220115442
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The STEEL EDGE type is ideal for edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. Series B mounted points are generally used on smaller or more delicate components, such as in tool and die construction. Due to the special shapes, it is possible to grind in a variety of contours. Applications include grinding out slits and grooves in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Diameter External (In):
0.13
Diameter Shank:
1/8 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220115442
EDP:
32658
Grit Size:
100
Item Quantity:
10
Item Weight (kgs):
0.003
MANUFACTURER_TYPE_DESCR:
B 97 3,1 AR 100 O5V STEEL EDGE
Materials that can be worked:
Cast steel
Materials that can be worked 1:
Steel
Max. 1-2 Inch Overhang (RPM):
105000
Optimum 1-2 Inch Overhang (RPM):
105000
Order Quanityt:
450
Prop 65:
View
Recommendations for use:
STEEL EDGE mounted points perform best at a peripheral speed of 5,000-7,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
64500
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Shank Length:
1.25
Shape:
B 97
UNSPNC:
23131500
UPC Code:
97758326582
Other Details
Cost-effective due to high edge stability, even on low-speed power tools.
Ideal for work on edges.
Long service life and low wear due to hard, dimensionally stable bond.
