![PFERD Vitrified Mounted Point, STEEL, 3/4" x 1-1/8, 30 Grit, A5, AO, 1/4" Shank](/vendors/6924/large/39101598-rgb.png "PFERD Vitrified Mounted Point, STEEL, 3/4" x 1-1/8, 30 Grit, A5, AO, 1/4" Shank")

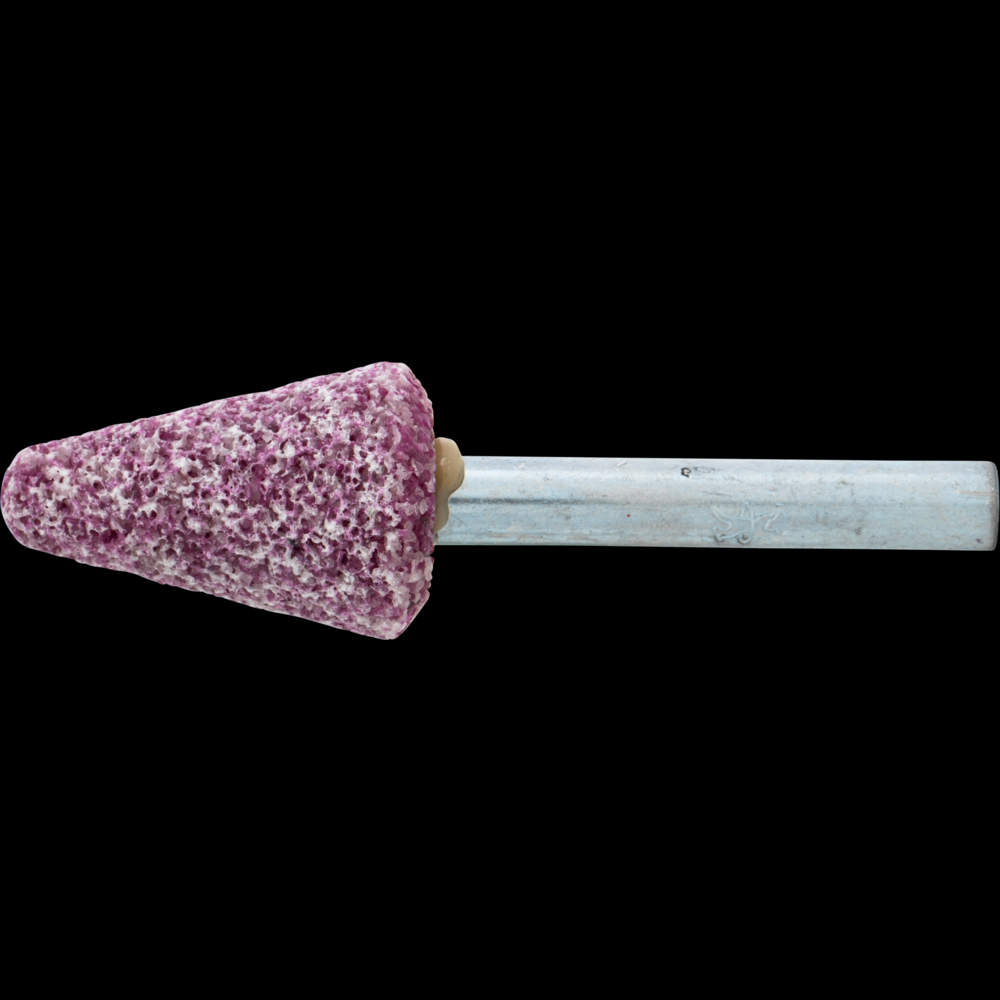

PFERD Vitrified Mounted Point, STEEL, 3/4" x 1-1/8, 30 Grit, A5, AO, 1/4" Shank
Call For Price
- Part Number: 39101598
- UPC: 04007220450574
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

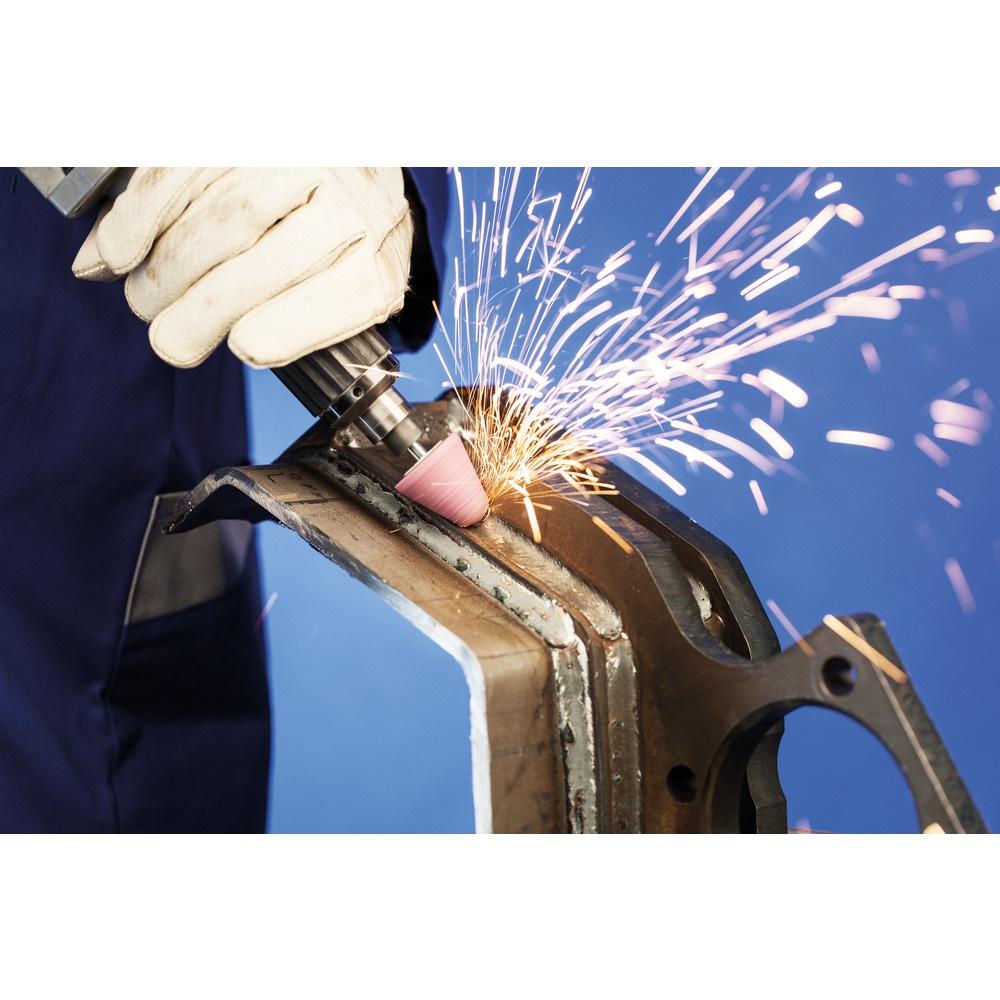

The STEEL type is the most universal bond for machining steel and cast steel. It is ideal for grinding high-speed steel (HSS) molded parts and weld dressing on steel constructions. Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. Applications include grinding out slits and grooves in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Customs Number:
6804226000
Diameter External (In):
0.75
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220450574
EDP:
31040
Grit Size:
30
Item Quantity:
10
Item Weight (kgs):
0.024
MANUFACTURER_TYPE_DESCR:
A 5 6,3 ADW 30 M 5V STEEL
Materials that can be worked:
Cast steel
Materials that can be worked 1:
Steel
Max. 1-2 Inch Overhang (RPM):
45000
Optimum 1-2 Inch Overhang (RPM):
45000
Order Quanityt:
70
Prop 65:
View
Recommendations for use:
STEEL mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
33750
Safety notes:
The maximum permitted rotational speed relates to an unsupported shank length of 1/2".
Shank Length:
1.50
Shape:
A 5
UNSPNC:
23131500
UPC Code:
97758310406
Other Details
Designed for work on surfaces and edges.
Good grinding performance and stock removal rate in universal use on steel workpieces.
High stock removal rate results in increased productivity.
