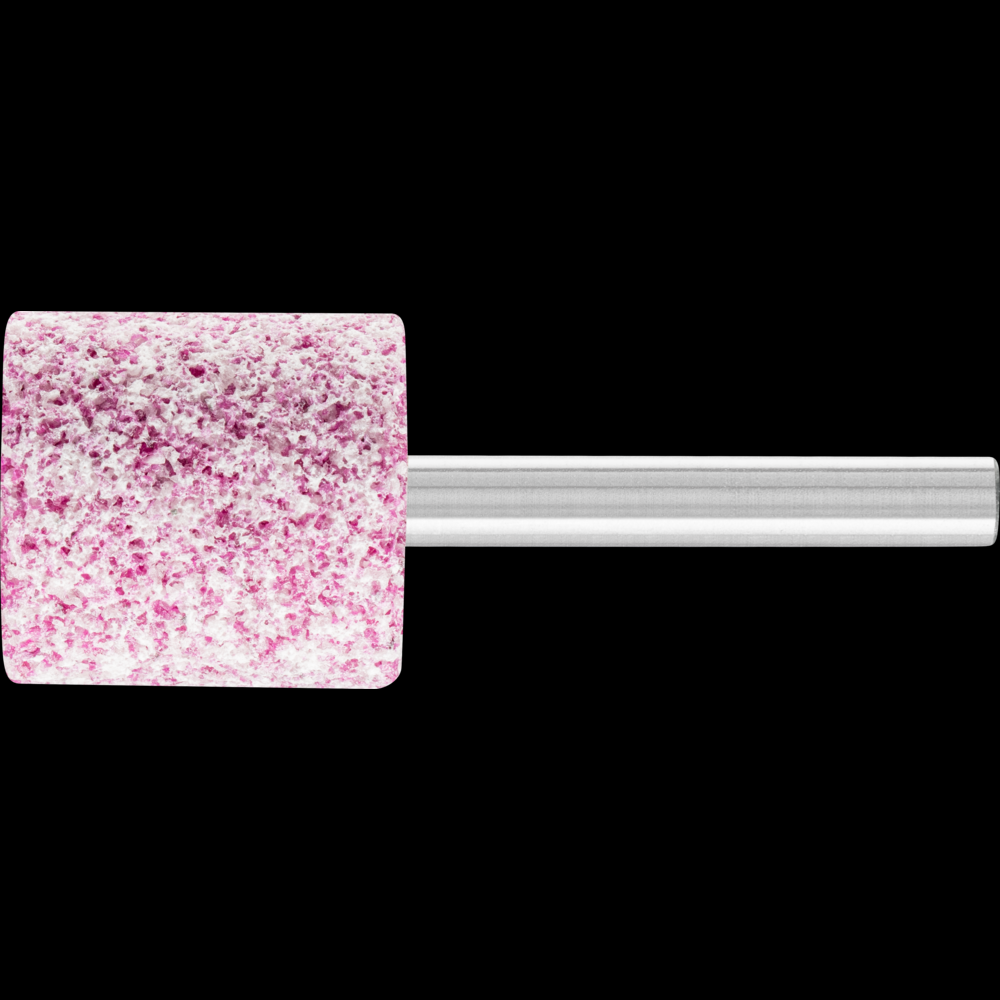

PFERD Vitrified Mounted Point, STEEL, 1" x 1, 30 Grit, W220, Aluminum Oxide, 1/4"Shank
Call For Price
- Part Number: 39101653
- UPC: 04007220451229
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The STEEL type is the most universal bond for machining steel and cast steel. It is ideal for grinding high-speed steel (HSS) molded parts and weld dressing on steel constructions. The cylindrical shape is ideal for grinding bores, radii and contours.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Customs Number:
6804221000
Diameter External (In):
1.00
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220451229
EDP:
34186
Grit Size:
30
Item Quantity:
10
Item Weight (kgs):
0.047
MANUFACTURER_TYPE_DESCR:
W 220 6,3 ADW 30 M 5V STEEL
Materials that can be worked:
Cast steel
Materials that can be worked 1:
Steel
Max. 1-2 Inch Overhang (RPM):
25500
Optimum 1-2 Inch Overhang (RPM):
25500
Order Quanityt:
830
Prop 65:
View
Recommendations for use:
STEEL mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
19120
Safety notes:
The maximum permitted rotational speed relates to an unsupported shank length of 1/2".
Shank Length:
1.50
Shape:
W 220
UNSPNC:
23131500
UPC Code:
97758341868
Other Details
Designed for work on surfaces and edges.
Good grinding performance and stock removal rate in universal use on steel workpieces.
High stock removal rate results in increased productivity.
