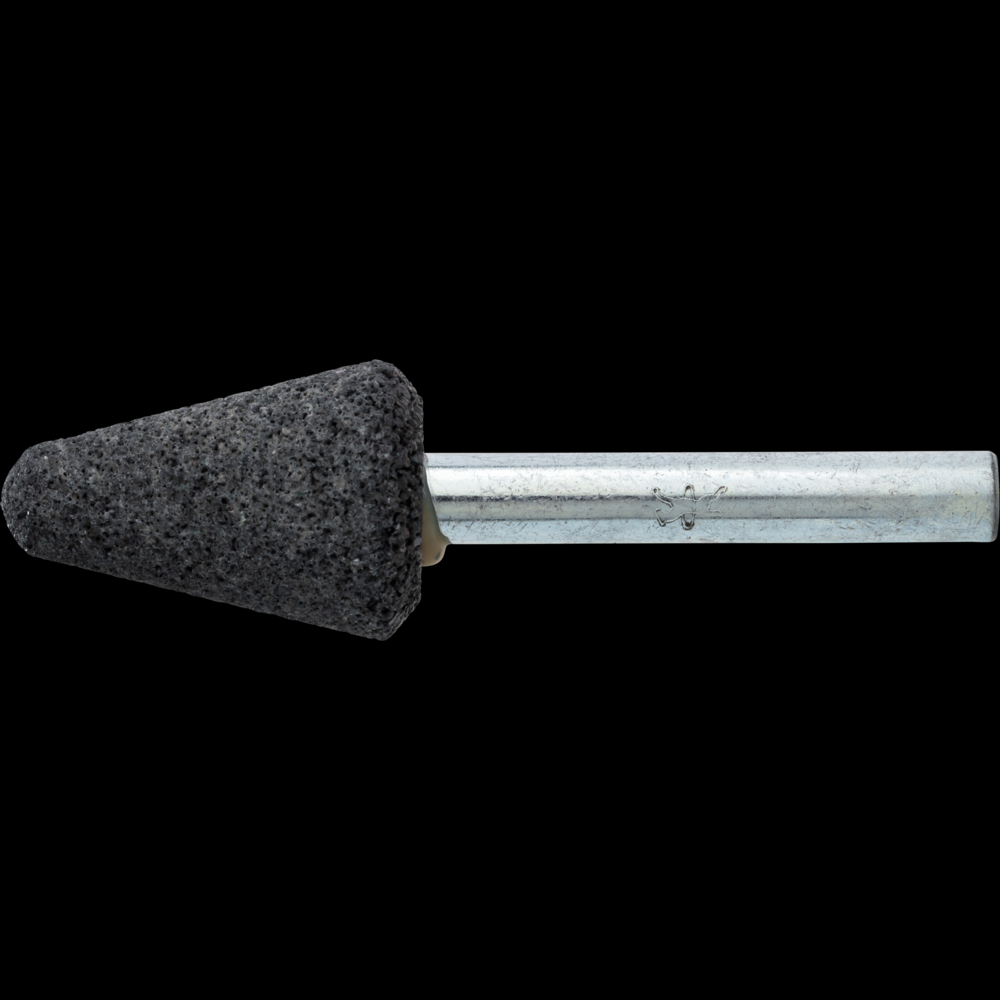

Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. Applications include grinding out slits and grooves in hard-to-reach areas, machining bores and small holes, and smoothing surfaces. The CAST EDGE type is designed to work with high cutting speeds for edge grinding and grinding out sharp burrs, sand inclusions, and scale in grey and nodular cast iron. Its main applications include removal of sharp burrs and grinding out sand contamination and metal contamination on cast material parts.
Details
Industrial Subcategory:
Polishing, Finishing and Conditioning
Applications 7:
Working on edges (chamfering, rounding)
MANUFACTURER_TYPE_DESCR:
A 5 6,3 CU 30 R 5V CAST EDGE
Materials that can be worked:
Materials that can be worked 1:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Max. 1-2 Inch Overhang (RPM):
Optimum 1-2 Inch Overhang (RPM):
Recommendations for use:
CAST EDGE mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
