![PFERD Spiral Band, 1-1/8" x 1-1/8, Cylindrical Shape, 40 Grit, Aluminum oxide](/vendors/6924/large/gsb-3030-a-40-rgb.png "PFERD Spiral Band, 1-1/8" x 1-1/8, Cylindrical Shape, 40 Grit, Aluminum oxide")

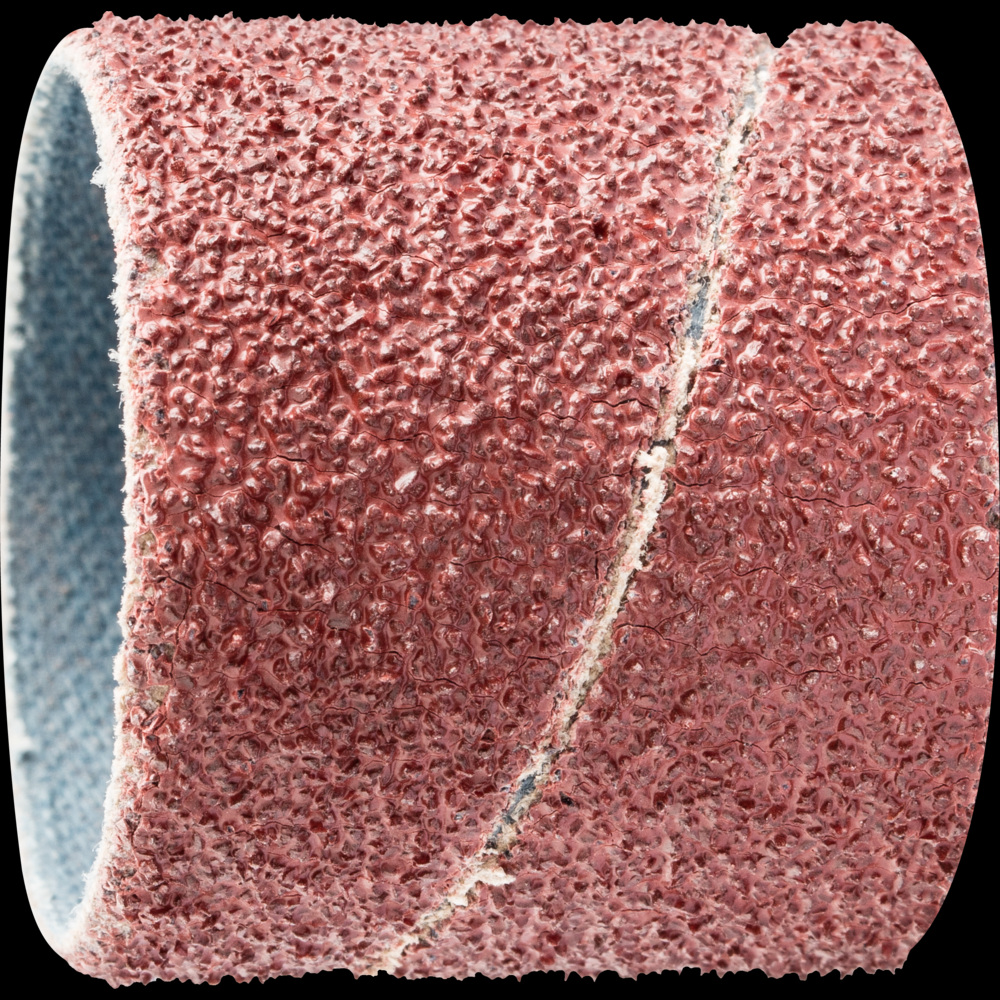

PFERD Spiral Band, 1-1/8" x 1-1/8, Cylindrical Shape, 40 Grit, Aluminum oxide
Call For Price
- Part Number: 42209104
- UPC: 04007220148174
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
For universal applications from coarse to fine grinding. In ISO 2421, abrasive spiral bands are designated as "cylindrical sleeves". GSB = bulk pack of abrasive spiral bands
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Spiral Bands
Abrasive:
Aluminium oxide A
Applications:
Deburring
Applications 1:
Step-by-step fine grinding
Applications 2:
Leveling
Applications 3:
Roughening
Applications 4:
Sharpening
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges
Country of Origin:
DE
Diameter External (In):
1.17
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220148174
EDP:
41190
Grit Size:
40
Item Quantity:
100
Item Weight (kgs):
0.007
MANUFACTURER_TYPE_DESCR:
GSB 3030 A 40
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Annealed cast iron
Materials that can be worked 10:
Stainless steel (INOX)
Materials that can be worked 11:
Steel materials with a hardness > 54 HRC
Materials that can be worked 12:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 13:
Thermoplastics
Materials that can be worked 2:
Brass
Materials that can be worked 3:
Bronze
Materials that can be worked 4:
Cast steel
Materials that can be worked 5:
Cobalt-based alloys
Materials that can be worked 6:
Copper
Materials that can be worked 7:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 8:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 9:
Hardened, heat-treated steels over 370 HV (38 HRC)
Optimum RPM:
13000 - 19100 RPM
Order Quanityt:
100
Prop 65:
View
Recommendations for use:
To easily change the abrasive spiral bands, give them a slight clockwise twist and pull them up and off. When doing so, leave the rubber drum holder clamped in the power tool.
Recommendations for use 1:
To ensure the abrasive spiral band is securely attached, follow the minimum speed for the rubber drum holder.
Recommendations for use 2:
For the best performance, use with a recommended peripheral speed of 4,000-6,000 SFPM.
Recommendations for use 3:
Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.
Safety notes:
The maximum permitted peripheral speed is 6,000 SFPM.
Safety notes 1:
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
Safety notes 2:
Do not allow abrasive spiral bands to protrude beyond the rubber drum holder.
UNSPNC:
23131508
UPC Code:
97758411905
Other Details
Abrasive spiral bands fit securely on the rubber drum holder as the holder expands during use.
Highest possible cost-effectiveness due to particularly high stock removal rate and aggressiveness of the abrasive.
Outstanding service life even under the toughest work conditions, due to special manufacturing.
