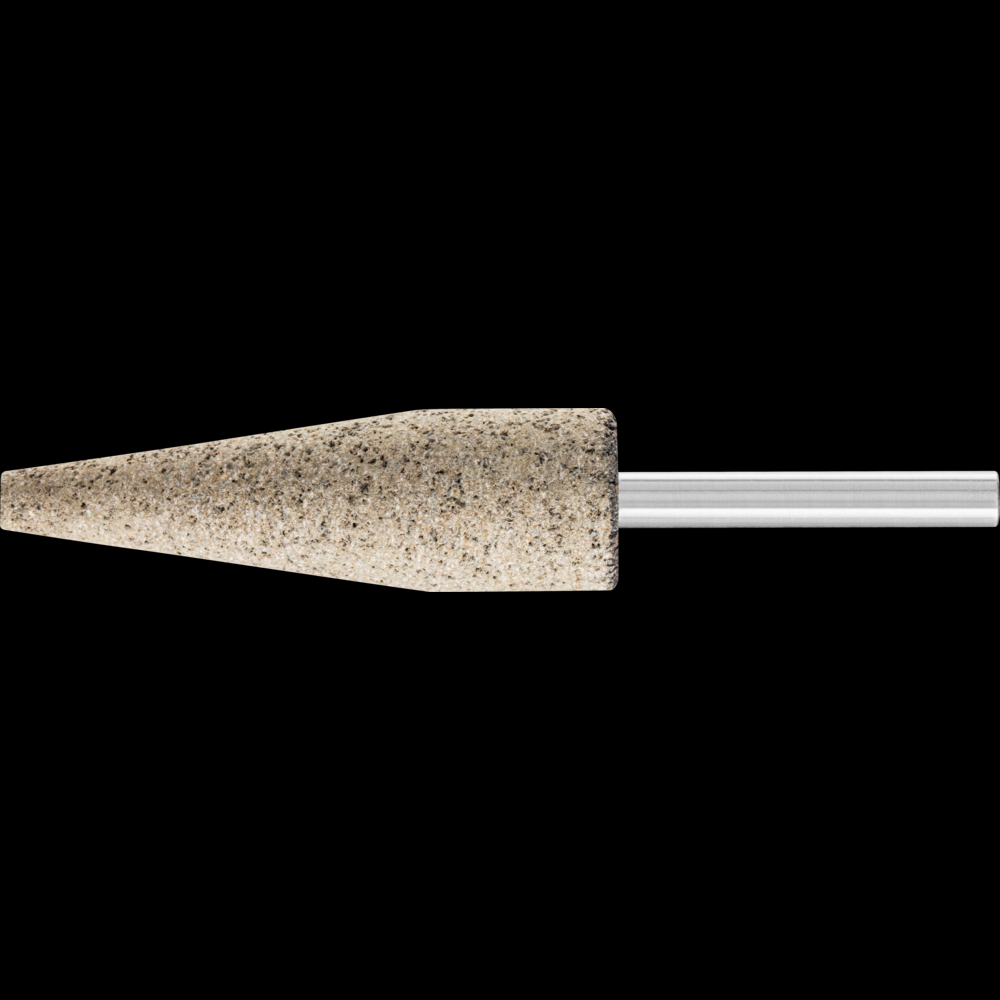

PFERD Resin Mounted Point, INOX EDGE, 3/4" x 2-1/2, 30 Grit, A1, AO, 1/4" Shank
Call For Price
- Part Number: 39101387
- UPC: 04007220253403
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The INOX EDGE type is ideal for edge grinding on stainless steel (INOX). Applications include weld dressing on fillet welds on stainless steel components, removing burrs on molded parts made of high-temperature-resistant alloys, removing burrs on stainless steel castings, and grinding chamfers in preparation for welding stainless steel profiles. Series A mounted points are generally used on larger, stainless steel components, such as in container construction. Due to the special shapes, it is possible to grind in a variety of contours. Applications include grinding in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Customs Number:
6804226000
Diameter External (In):
0.75
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220253403
EDP:
35101
Grit Size:
30
Item Quantity:
10
Item Weight (kgs):
0.045
MANUFACTURER_TYPE_DESCR:
A 1 6,3 AN 30 N 5B INOX EDGE
Materials that can be worked:
Stainless steel (INOX)
Max. 1-2 Inch Overhang (RPM):
19800
Optimum 1-2 Inch Overhang (RPM):
19800
Order Quanityt:
50
Prop 65:
View
Recommendations for use:
INOX EDGE mounted points perform best at a peripheral speed of 6,900-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
16500
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Shank Length:
1.50
Shape:
A 1
UNSPNC:
23131500
UPC Code:
97758351010
Other Details
Cost-effective due to high edge stability, even on low-speed power tools.
High dimensional stability on edges.
Ideal for use on temperature-sensitive materials due to cool-grinding properties.
Increased operator comfort due to low vibration grinding
