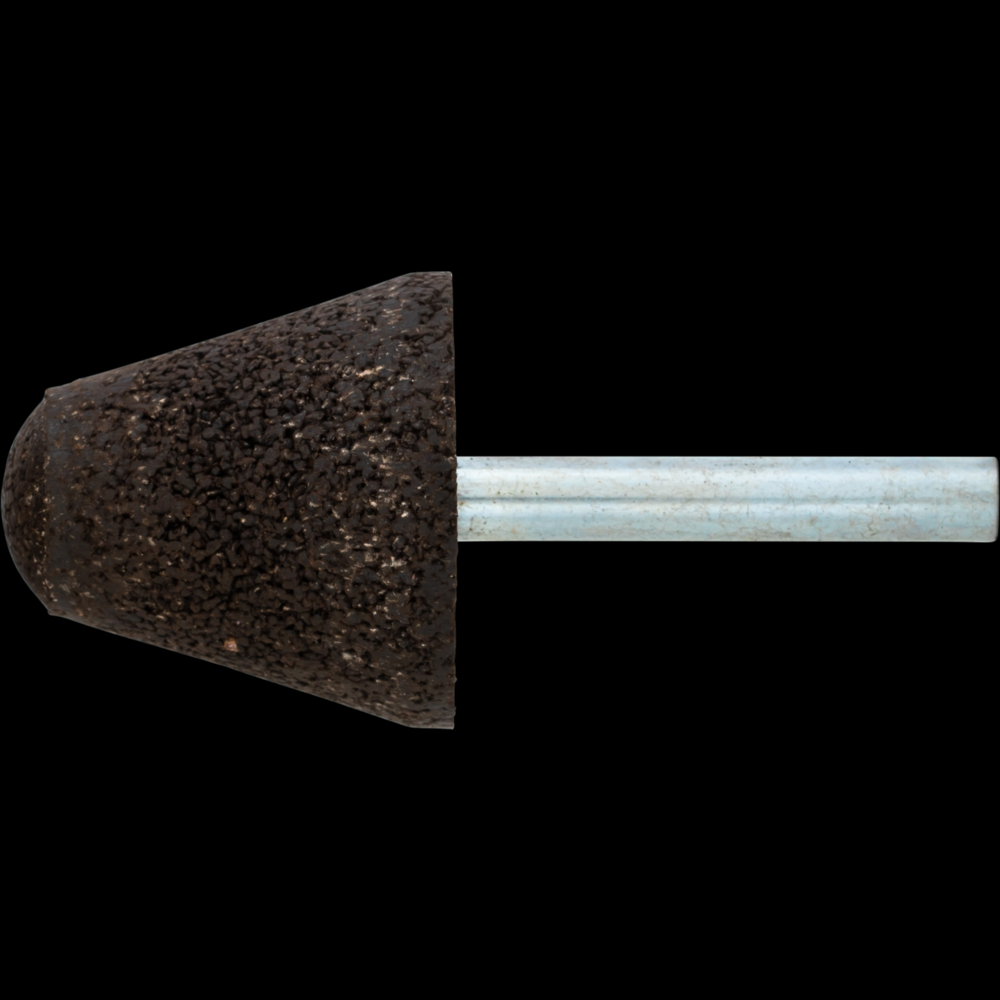

PFERD Resin Mounted Point, INOX EDGE, 1-1/4" x 1-1/4, 30 Grit, A4, AO, 1/4" Shank
Call For Price
- Part Number: 39101536
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

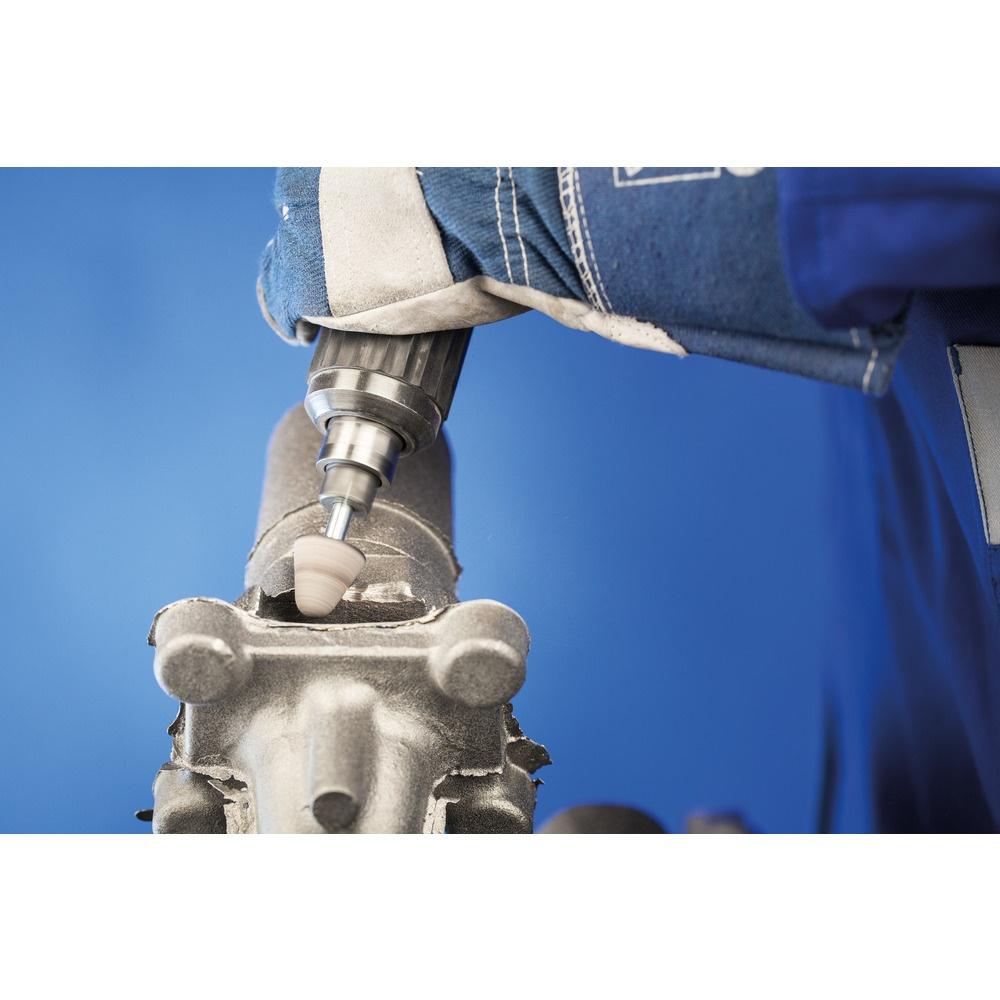

The INOX EDGE type is ideal for edge grinding on stainless steel (INOX). Applications include weld dressing on fillet welds on stainless steel components, removing burrs on molded parts made of high-temperature-resistant alloys, removing burrs on stainless steel castings, and grinding chamfers in preparation for welding stainless steel profiles. Series A mounted points are generally used on larger, stainless steel components, such as in container construction. Due to the special shapes, it is possible to grind in a variety of contours. Applications include grinding in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
DE
Customs Number:
6804226000
Diameter External (In):
1.25
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EDP:
35107
Grit Size:
30
Item Quantity:
5
Item Weight (kgs):
0.055
MANUFACTURER_TYPE_DESCR:
A 4 6,3 AN 30 N 5B INOX EDGE
Materials that can be worked:
Stainless steel (INOX)
Max. 1-2 Inch Overhang (RPM):
30560
Optimum 1-2 Inch Overhang (RPM):
28600
Order Quanityt:
70
Prop 65:
View
Recommendations for use:
INOX EDGE mounted points perform best at a peripheral speed of 6,900-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
24750
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Shank Length:
1.50
Shape:
A 4
UNSPNC:
23131500
UPC Code:
97758351072
Other Details
Cost-effective due to high edge stability, even on low-speed power tools.
High dimensional stability on edges.
Ideal for use on temperature-sensitive materials due to cool-grinding properties.
Increased operator comfort due to low vibration grinding
